The Zephyr AK9834AS has been discontinued
** See similar or replacement items below **
Item # bci3833455

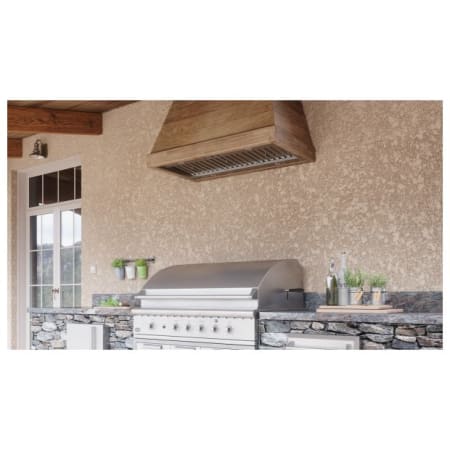

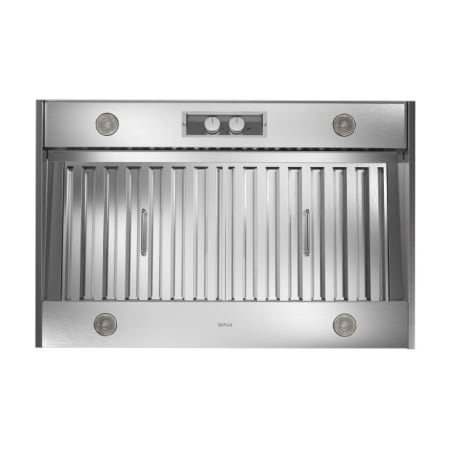

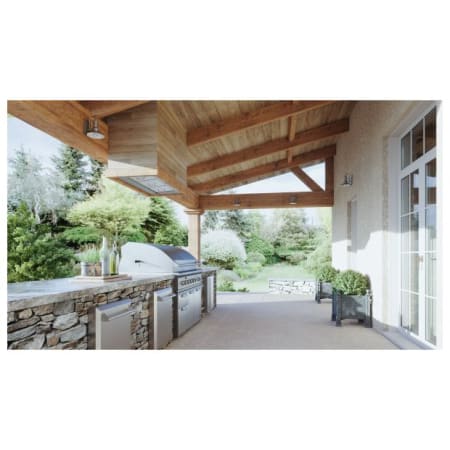

Zephyr Spruce 450 - 1200 CFM 36 Inch Wide Outdoor Approved Insert Range Hood with Lighting
Model: AK9834AS|Item: bci3833455
from theSpruce Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- Powerful 1200 CFM blower quickly clears your kitchen of smoke and unwanted odors
- Features dishwasher safe stainless steel baffle filters
- Includes four (4) 35-watt halogen bulbs to illuminate your workspace
- Turn knob controls offer easy access to control airflow and lighting settings
- Includes a manufacturer warranty covering labor for 1 year and parts for 3 years
Product Technologies:
- 304-Grade Stainless Steel Construction: Feel confident in the knowledge that your range hood is built to last with its 304-grade stainless steel construction. This corrosion-resistant material offers a sleek look that's easy to clean and can withstand the test of time.
Specifications:
- CFM: 1200, 450
- Sones: 3.5, 9
- Speeds: 3
- Duct Size: 10" Round
- Duct Discharge: Vertical
- Bulb Type: Halogen
- Width: 34-3/8"
- Depth: 22-1/2"
- Height: 12"
- Height above cooktop: 30" to 36"
- Voltage: 120
- Watts per bulb: 35
Manufacturer Resources
Exploded PartsInstallation SheetSpecification SheetHVAC Fitting SpecificationsDimensions and Measurements
CFM | 1200, 450 |
Depth | 22.5 in. |
Duct Size | 10" Round |
Height | 12 in. |
Height Above Cooktop | 30" to 36" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 36 in. |
Product Weight | 45 lbs. |
Width | 34.375 in. |
Dimensions and Measurements
CFM | 1200, 450 |
Depth | 22.5 in. |
Duct Size | 10" Round |
Height | 12 in. |
Height Above Cooktop | 30" to 36" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 36 in. |
Product Weight | 45 lbs. |
Width | 34.375 in. |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | Halogen |
Control Type | Knob |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
Number of Bulbs | 4 |
Smart Home | No |
Characteristics and Features
Blower Type | Internal |
Bulb Type | Halogen |
Control Type | Knob |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
Number of Bulbs | 4 |
Smart Home | No |
Electrical and Operational Information
Amperage | 6.5 |
Sones | 3.5, 9 |
Speeds | 3 |
Voltage | 120 |
Watts Per Bulb | 35 |
Electrical and Operational Information
Amperage | 6.5 |
Sones | 3.5, 9 |
Speeds | 3 |
Voltage | 120 |
Watts Per Bulb | 35 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
Outdoor Approved | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
Outdoor Approved | Yes |
