WAC Lighting Volta 4.5" Round Shallow Regressed Trim with LED Light Engine and 25 Degree Narrow Beam Spread
Model: R4RD1T-N827-BK|Item: bci2982715
Details
Volta is the quintessential high performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 Lumens. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.
Features:
- Energy Star certified
- Includes (1) 15-36 watt replaceable LED module - wattage determined by housing (sold separately)
- 25° narrow beam spread
- Smooth and continuous dimming to 1% with an electronic low voltage dimmer or 0-10v dimmer
- ETL and cETL listed for wet locations
- 5 year manufacturer warranty

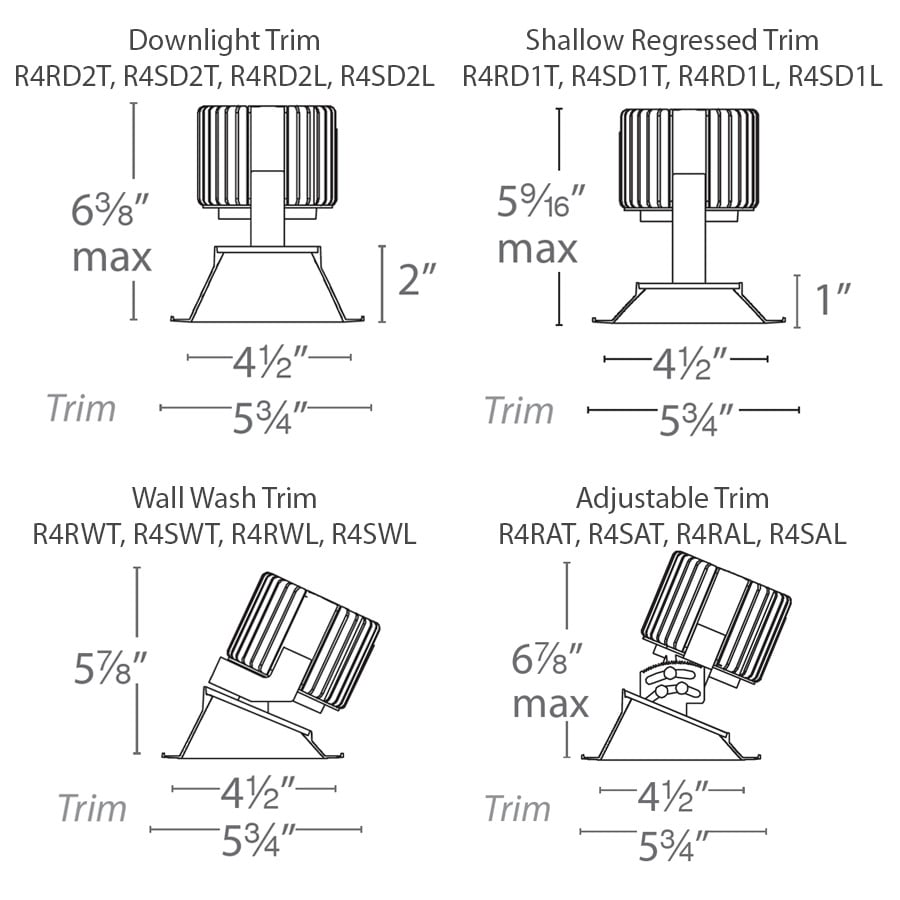

Dimensions:
- Width: 5.75"
- Height: 5.63"
- Depth: 5.75"
- Trim Size: 4.5"
- Aperture: 4.5"
Electrical Specifications:
- Bulb Included: Yes
- Bulb Base: Integrated LED
- Bulb Type: LED
- Wattage: 15, 25, 36
- Color Temperature: 2700k, 3000k, 3500k, 4000k
- Color Rendering Index (CRI): 85, 90
- Lumens: 1062, 1223, 1303, 1362, 1373, 2048, 2185, 2512, 2680, 2801, 2825, 995 (see attached spec sheet)
- Beam Spread: 25°
- Universal Input Voltage: 120V-240V-277V
- Energy Star: Yes
Dimensions and Measurements
Beam Spread | 25 Degrees |
Depth | 5.75 in. |
Height | 5.63 in. |
Trim Size | 4.5 in. |
Width | 5.75 in. |
Dimensions and Measurements
Beam Spread | 25 Degrees |
Depth | 5.75 in. |
Height | 5.63 in. |
Trim Size | 4.5 in. |
Width | 5.75 in. |
Included Components
Bulb Included | Yes |
Included Components
Bulb Included | Yes |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Color Temperature | 2700K, 3000K, 3500K, 4000K |
Dimmable | Yes |
LED | Yes |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Replaceable LED Module | Yes |
Sloped Ceiling Compatible | Yes |
Trim Style | Open Trims |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Color Temperature | 2700K, 3000K, 3500K, 4000K |
Dimmable | Yes |
LED | Yes |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Replaceable LED Module | Yes |
Sloped Ceiling Compatible | Yes |
Trim Style | Open Trims |
Electrical and Operational Information
Average Hours | 70000 Hours |
Color Rendering Index (CRI) | 85, 90 |
Lumens | 1062, 1223, 1303, 1362, 1373, 2048, 2185, 2512, 2680, 2801, 2825, 995 |
Voltage | 120, 240, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 15, 25, 36 |
Watts Per Bulb | 15, 25, 36 |
Electrical and Operational Information
Average Hours | 70000 Hours |
Color Rendering Index (CRI) | 85, 90 |
Lumens | 1062, 1223, 1303, 1362, 1373, 2048, 2185, 2512, 2680, 2801, 2825, 995 |
Voltage | 120, 240, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 15, 25, 36 |
Watts Per Bulb | 15, 25, 36 |
Warranty and Product Information
Certifications | ETL |
Collection | Volta Round Shallow Regressed |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Wet Location |
Series | Volta |
Warranty and Product Information
Certifications | ETL |
Collection | Volta Round Shallow Regressed |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Wet Location |
Series | Volta |
