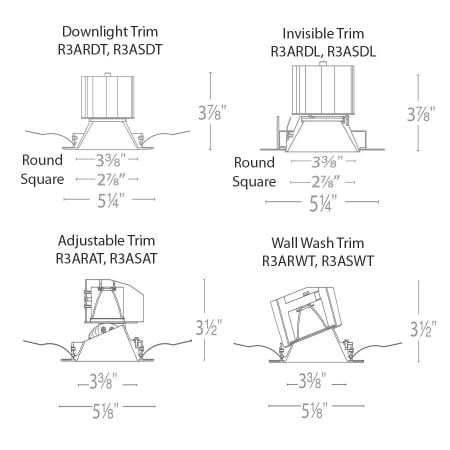

WAC Lighting-R3ARDL-F-Line Drawing
Black / 2700K / 85CRI
WAC Lighting-R3ARDL-F-Line Drawing

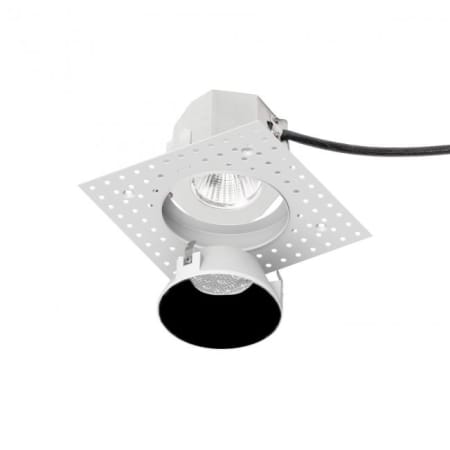

WAC Lighting Aether 3.5" Round Invisible Trim with LED Light Engine and 45 Degree Flood Beam Spread

Model: R3ARDL-F827-BK
|
Item: bci3673645

$224.95
Finish: Black / 2700K / 85CRI -
201 In Stock
Finish: Black / 2700K / 85CRI -
201 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 3 business days
-
Return & Shipping Details

Details

Aether features all of the benefits of a high performance LED recessed downlight including Energy Star rating, wet location listing, and high output with efficiency. Available in a sleek trimless option which can be spackled directly up to the Aperture. At 3.5" in height, the Aether is designed with the difficult to fit jobs in mind.

Features:

  • Designed to fit tight plenum spaces
  • Includes (1) 16.5 watt replaceable LED module equivalent to 100 watt MR16 bulb
  • Trim includes LED Light Engine and replaceable module
  • Smooth and continuous dimming to 1% with an electronic low voltage dimmer or 0-10v dimmer
  • ETL and cETL listed for wet locations
  • 5 year manufacturer warranty
  • For use with housing HR-3LED-H17A or HR-3LED-H17AC (Chicago plenum)

Dimensions:

  • Width: 5.25"
  • Height: 3.88"
  • Depth: 5.25"
  • Trim Size: 3.5"
  • Aperture: 3.5"

Electrical Specifications:

  • Bulb Included: Yes
  • Bulb Base: Integrated LED
  • Bulb Type: LED
  • Wattage: 16.5
  • Color Temperature: 2700k, 3000k, 3500k, 4000k
  • Color Rendering Index (CRI): 85, 90
  • Lumens: 1025, 1140, 1175, 1185, 1265, 950 (see attached spec sheet)
  • Beam Spread: 45°
  • Universal Input Voltage: 120V-240V-277V
  • Energy Star: Yes
Additional WAC Lighting Links

Dimensions and Measurements

Beam Spread
45 Degrees
Depth
5.25 in.
Diameter
5.25 in.
Height
3.88 in.
Trim Size
3.5 in.
Width
5.25 in.

Dimensions and Measurements

Beam Spread
45 Degrees
Depth
5.25 in.
Diameter
5.25 in.
Height
3.88 in.
Trim Size
3.5 in.
Width
5.25 in.

Included Components

Bulb Included
Yes

Included Components

Bulb Included
Yes

Characteristics and Features

Bulb Base
Integrated LED
Bulb Type
LED
Color Temperature
2700K, 3000K, 3500K, 4000K
Dimmable
Yes
LED
Yes
Material
Aluminum
Number of Bulbs
1
Number of Light Source(s)
1
Replaceable LED Module
Yes
Sloped Ceiling Compatible
Yes
Trim Style
Shower Trims, Trimless

Characteristics and Features

Bulb Base
Integrated LED
Bulb Type
LED
Color Temperature
2700K, 3000K, 3500K, 4000K
Dimmable
Yes
LED
Yes
Material
Aluminum
Number of Bulbs
1
Number of Light Source(s)
1
Replaceable LED Module
Yes
Sloped Ceiling Compatible
Yes
Trim Style
Shower Trims, Trimless

Electrical and Operational Information

Average Hours
70000 Hours
Color Rendering Index (CRI)
85, 90
Lumens
1025, 1140, 1175, 1185, 1265, 950
Voltage
120, 240, 277
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
16.5
Watts Per Bulb
16.5

Electrical and Operational Information

Average Hours
70000 Hours
Color Rendering Index (CRI)
85, 90
Lumens
1025, 1140, 1175, 1185, 1265, 950
Voltage
120, 240, 277
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
16.5
Watts Per Bulb
16.5

Warranty and Product Information

Certifications
ETL
Collection
Aether Round Invisible
Country Of Origin
China
Energy Star
Yes
Location Rating
Wet Location
Series
Aether

Warranty and Product Information

Certifications
ETL
Collection
Aether Round Invisible
Country Of Origin
China
Energy Star
Yes
Location Rating
Wet Location
Series
Aether
