WAC Lighting Precision Multiples LED New Construction Housing for 4" Trims with 40° Flood Beam Spread and ELV Dimming
Model: MT4LD226NE-F27-BK|Item: bci3345873
from thePrecision Multiples Collection
$1,097.95
Finish: Black / 2700 -
84 In Stock
Finish: Black / 2700 -
84 In Stock
Black / 2700
Details

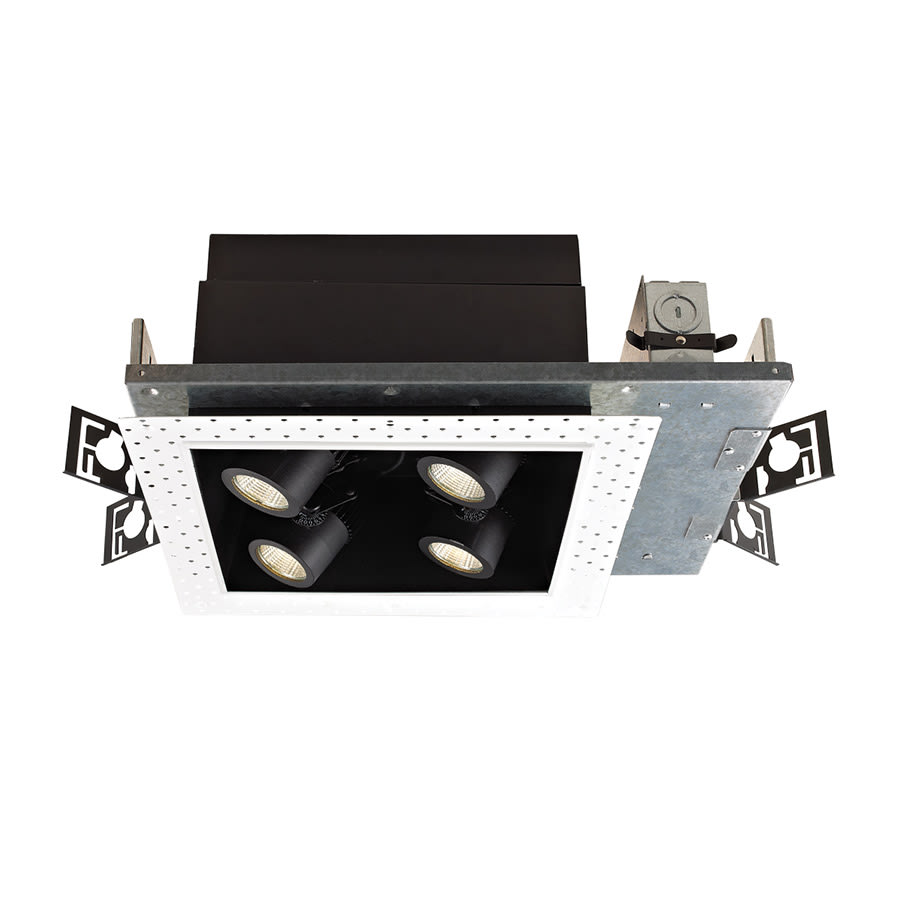

WAC Precision Multiples are state-of-the-art LED lighting with multiple light options for IC or Non-IC rated configurations. Available in flanged or Invisible Trim, these precision luminaires are adjustable 360° horizontally and 180° vertically.
Features
- Compatible with MT-4LD226T and MT-4LD226TL trims (sold separately)
- Housing is not insulated ceiling rated and airtight
- Constructed from aluminum
- Integrated LED lighting
- Capable of being dimmed with an electronic low-voltage dimmer
- UL and CUL rated for damp locations
- Energy star certified
- Compliant with California Title 24 energy standards
- Covered by manufacturer 2 year finish / 5 year mechanical warranty

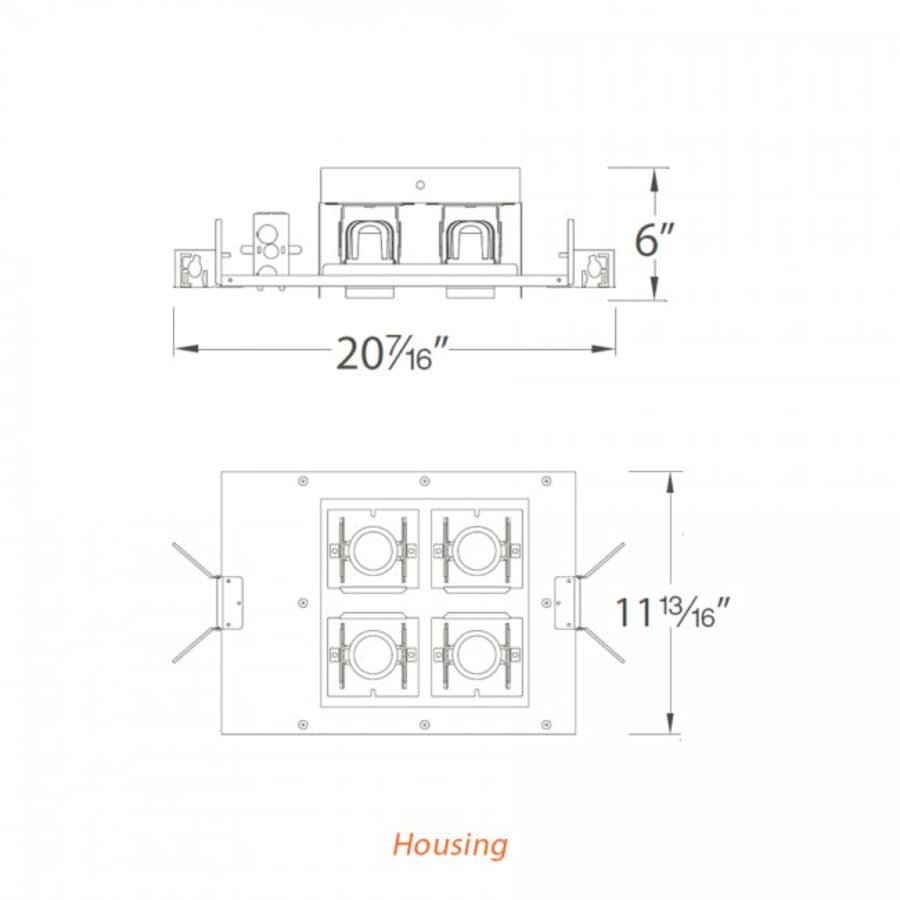

Dimensions
- Trim Size: 4"
- Height: 6"
- Width: 20-7/16"
- Depth: 11-13/16"
- Product Weight: 13.3 lbs
- Cutout Size: 9-3/4"
- Beam Spread: 40°
Electrical Specifications
- Bulb Base: Integrated LED
- Number of Bulbs: 4
- Bulbs Included: Yes
- Lumens: 3000, 3600, 3840, 3920, 3940, or 3960
- Wattage: 64 watts
- Voltage: 120 volts
- Color Temperature: 2700K, 3000K, 3500K, or 4000K
- Color Rendering Index: 85 or 90CRI
- Average Hours: 50000
Dimensions and Measurements
Beam Spread | 40 Degrees |
Cutout Size | 9.75 in. |
Depth | 11.81 in. |
Height | 6 in. |
Maximum Width | 25 in. |
Minimum Width | 14.25 in. |
Product Weight | 13.28 lbs. |
Trim Size | 4 in. |
Width | 20.45 in. |
Dimensions and Measurements
Beam Spread | 40 Degrees |
Cutout Size | 9.75 in. |
Depth | 11.81 in. |
Height | 6 in. |
Maximum Width | 25 in. |
Minimum Width | 14.25 in. |
Product Weight | 13.28 lbs. |
Trim Size | 4 in. |
Width | 20.45 in. |
Included Components
Bulb Included | Yes |
Included Components
Bulb Included | Yes |
Characteristics and Features
Airtight | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 2700K, 3000K, 3500K, 4000K |
Dimmable | Yes |
Energy Efficient | Yes |
Housing Type | New Construction Housing |
LED | Yes |
Light Direction | Adjustable Lighting |
Material | Aluminum, Steel |
Number of Bulbs | 4 |
Number of Light Source(s) | 4 |
Sloped Ceiling Compatible | Yes |
Theme | Contemporary |
Characteristics and Features
Airtight | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 2700K, 3000K, 3500K, 4000K |
Dimmable | Yes |
Energy Efficient | Yes |
Housing Type | New Construction Housing |
LED | Yes |
Light Direction | Adjustable Lighting |
Material | Aluminum, Steel |
Number of Bulbs | 4 |
Number of Light Source(s) | 4 |
Sloped Ceiling Compatible | Yes |
Theme | Contemporary |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 85, 90 |
Lumens | 3000, 3600, 3840, 3920, 3940, 3960 |
Power Source | Hardwired |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 64 |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 85, 90 |
Lumens | 3000, 3600, 3840, 3920, 3940, 3960 |
Power Source | Hardwired |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 64 |
Warranty and Product Information
Certifications | UL |
Collection | Precision Multiples |
Country Of Origin | China |
Energy Star | Yes |
IC Rating | Non-IC |
Location Rating | Damp Location |
Manufacturer Warranty | 2 Year Finish, 5 Year Mechanical |
Title 24 | Yes |
Warranty and Product Information
Certifications | UL |
Collection | Precision Multiples |
Country Of Origin | China |
Energy Star | Yes |
IC Rating | Non-IC |
Location Rating | Damp Location |
Manufacturer Warranty | 2 Year Finish, 5 Year Mechanical |
Title 24 | Yes |
