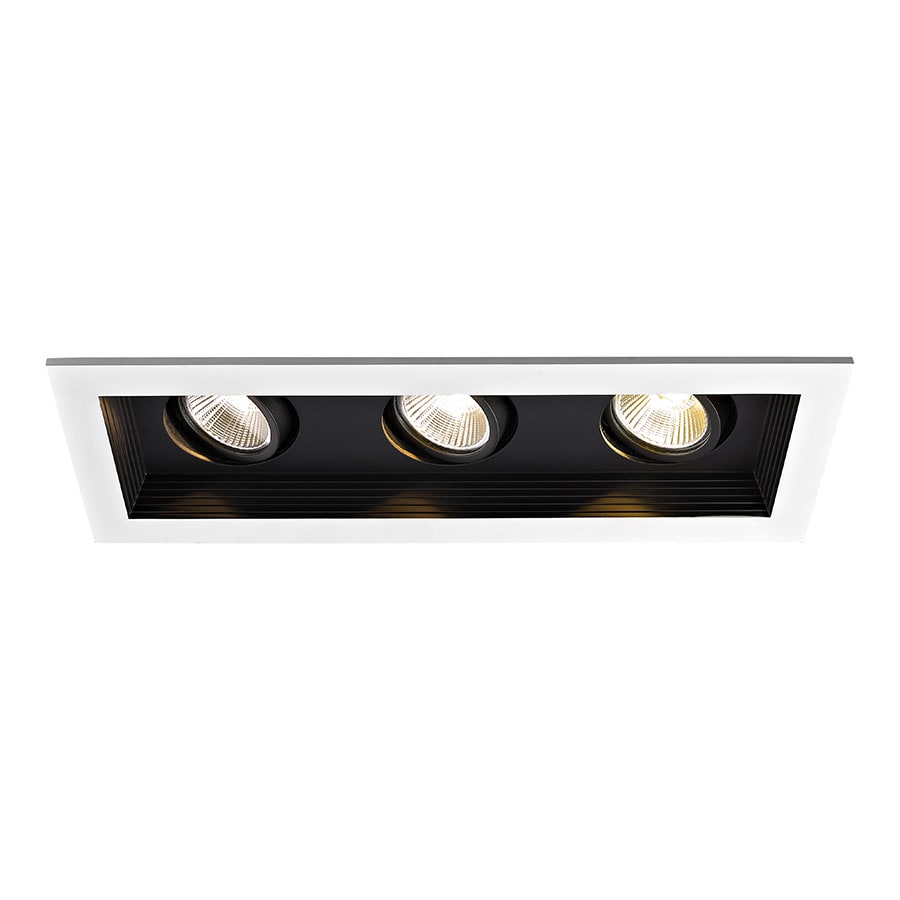

WAC Lighting Mini Multiples 3 Light 12-3/4" Wide LED Square Adjustable Baffle Trim and New Construction Housing with 45° Flood Beam Spread
Model: MT-3LD311NA-W927BK|Item: bci3356596
$737.95
Finish: Black / 2700K -
177 In Stock
Finish: Black / 2700K -
177 In Stock
Black / 2700K
Details
Mini LED multiple spots provide an alternative to track or standard recessed lights. Available in one to three light configurations with both new construction and remodel options. Each lamp is adjustable from 0 to 25° vertical and 350° horizontal.
Features
- Housing, trim, and light engine included
- Housing is not insulated ceiling rated and airtight
- Constructed from aluminum
- Integrated LED lighting
- Capable of being dimmed
- UL and CUL rated for damp locations
- Energy Star approved
- Compliant with California Title 24 energy standards
- Covered under a manufacturer 2 year finish / 5 year mechanical warranty

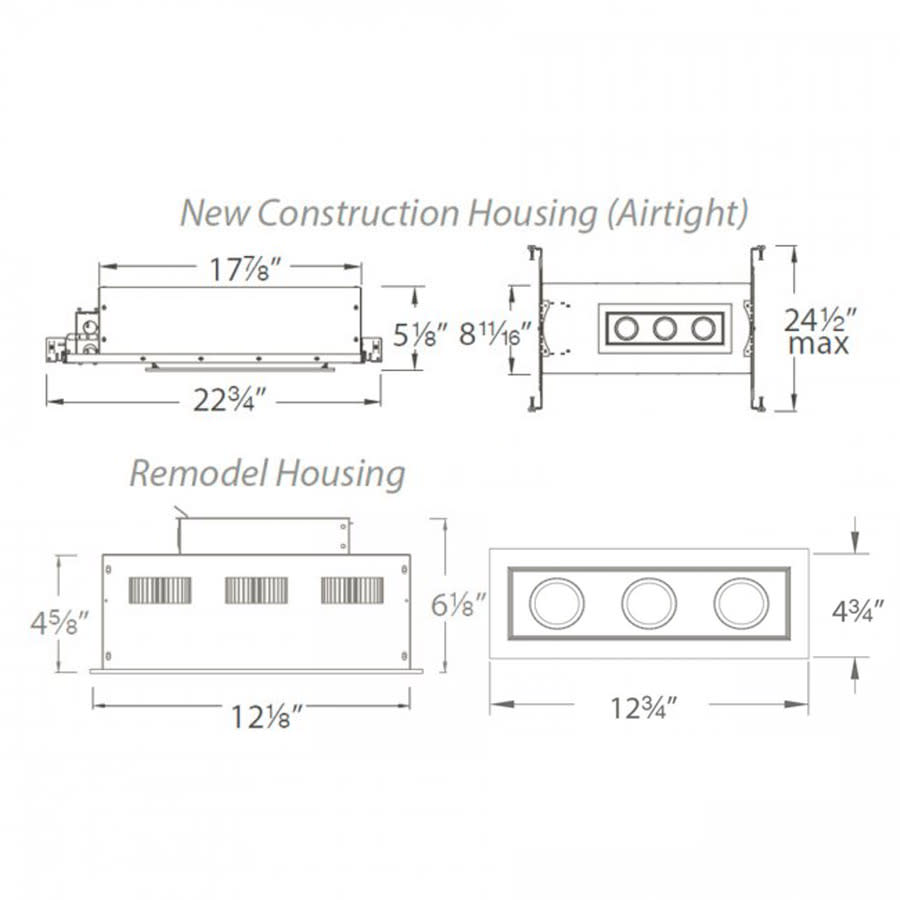

Dimensions
- Housing Height: 5-1/8"
- Housing Minimum Width: 8-5/8"
- Housing Maximum Width: 24-1/2"
- Trim Size: 3"
- Trim Width: 12-3/4"
- Trim Depth: 4-3/4"
- Product Weight: 9.3 lbs
- Cutout Size: 12"
- Beam Spread: 45°
Electrical Specifications
- Bulb Base: Integrated LED
- Number of Bulbs: 3
- Bulbs Included: Yes
- Lumens: 2115, 2325, 2355, or 2385
- Wattage: 33 watts
- Voltage: 120 volts
- Color Temperature: 2700K, 3000K, 3500K, or 4000K
- Color Rendering Index: 90CRI
- Average Hours: 50000
Dimensions and Measurements
Beam Spread | 45 Degrees |
Cutout Size | 12 in. |
Depth | 8.69 in. |
Height | 5.13 in. |
Maximum Width | 25 in. |
Minimum Width | 14.25 in. |
Product Weight | 9.31 lbs. |
Trim Size | 3 in. |
Width | 22.75 in. |
Dimensions and Measurements
Beam Spread | 45 Degrees |
Cutout Size | 12 in. |
Depth | 8.69 in. |
Height | 5.13 in. |
Maximum Width | 25 in. |
Minimum Width | 14.25 in. |
Product Weight | 9.31 lbs. |
Trim Size | 3 in. |
Width | 22.75 in. |
Included Components
Bulb Included | Yes |
Shade | No |
Included Components
Bulb Included | Yes |
Shade | No |
Characteristics and Features
Airtight | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 2700K, 3000K, 3500K, 4000K |
Dimmable | Yes |
Energy Efficient | Yes |
Housing Type | New Construction Housing |
LED | Yes |
Light Direction | Adjustable Lighting |
Material | Aluminum |
Number of Bulbs | 3 |
Number of Light Source(s) | 3 |
Sloped Ceiling Compatible | Yes |
Theme | Contemporary |
Trim Style | Adjustable Trims, Baffle Trims, Multi Light, Square Trims |
Characteristics and Features
Airtight | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 2700K, 3000K, 3500K, 4000K |
Dimmable | Yes |
Energy Efficient | Yes |
Housing Type | New Construction Housing |
LED | Yes |
Light Direction | Adjustable Lighting |
Material | Aluminum |
Number of Bulbs | 3 |
Number of Light Source(s) | 3 |
Sloped Ceiling Compatible | Yes |
Theme | Contemporary |
Trim Style | Adjustable Trims, Baffle Trims, Multi Light, Square Trims |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Lumens | 2115, 2325, 2355, 2385 |
Power Source | Hardwired |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 33 |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Lumens | 2115, 2325, 2355, 2385 |
Power Source | Hardwired |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 33 |
Warranty and Product Information
Certifications | UL |
Collection | Mini Multiple Spots, Mini Multiples |
Country Of Origin | China |
Energy Star | Yes |
IC Rating | Non-IC |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year Mechanical, 2 Year Finish |
Title 24 | Yes |
Warranty and Product Information
Certifications | UL |
Collection | Mini Multiple Spots, Mini Multiples |
Country Of Origin | China |
Energy Star | Yes |
IC Rating | Non-IC |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year Mechanical, 2 Year Finish |
Title 24 | Yes |
