The WAC Lighting HR-LED309-R-30 has been discontinued
** See similar or replacement items below **
Item # bci3303790

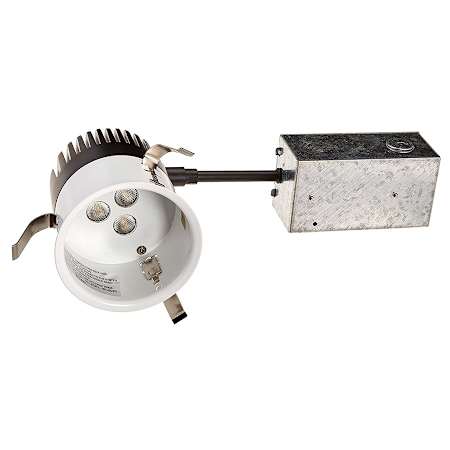

WAC Lighting LEDme LED Remodel Housing for 3" Trim Size - NON IC Rated
Model: HR-LED309-R-30|Item: bci3303790
from theLEDme Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
The WAC Lighting 3" LEDme is versatile with both IC or NON-IC rated new construction and remodel options. Housing and trim are ordered separately. The Housing includes LED engine and Light source and include 3 LED's for the finest color consistency.
Features
- Heavy gauges retention clips secure the housing to the ceiling
- Accommodates ceilings up to 1 inch thick
- Housing is designed for use in remodel construction
- Housing is not insulated ceiling rated and airtight
- Manufactured from die-cast aluminum and 20 gauge steel
- Integrated 8 watt LED lighting
- Capable of being dimmed
- UL and CUL rated for damp locations
- California Title 24 energy compliant
- 5 year manufacturer warranty on components with 2 year finish warranty

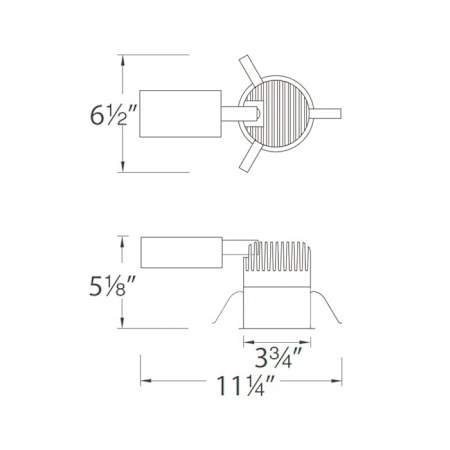

Dimensions
- Trim Size: 3"
- Height: 5-1/8"
- Width: 6-1/2"
- Product Weight: 3.3 lbs
- Cutout Size: 3-7/8 Inches
- Beam Spread: 35°
Electrical Specifications
- Bulb Base: Integrated LED
- Number of Bulbs: 1
- Bulb Included: Yes
- Lumens: 384 or 409
- Wattage: 8 watts
- Voltage: 120 volts
- Color Temperature: 3000K, 3500K, or 4000K
- Color Rendering Index: 80 or 85CRI
- Average Hours: 100000
Dimensions and Measurements
Beam Spread | 35 Degrees |
Cutout Size | 3.88 in. |
Height | 5.13 in. |
Product Weight | 3.32 lbs. |
Trim Size | 3 in. |
Width | 6.5 in. |
Dimensions and Measurements
Beam Spread | 35 Degrees |
Cutout Size | 3.88 in. |
Height | 5.13 in. |
Product Weight | 3.32 lbs. |
Trim Size | 3 in. |
Width | 6.5 in. |
Included Components
Bulb Included | Yes |
Shade | No |
Included Components
Bulb Included | Yes |
Shade | No |
Characteristics and Features
Airtight | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K, 3500K, 4000K |
Dimmable | Yes |
Energy Efficient | Yes |
Housing Type | Remodel Housing |
LED | Yes |
Light Direction | Down Lighting |
Material | Steel |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Theme | Contemporary |
Characteristics and Features
Airtight | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K, 3500K, 4000K |
Dimmable | Yes |
Energy Efficient | Yes |
Housing Type | Remodel Housing |
LED | Yes |
Light Direction | Down Lighting |
Material | Steel |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Theme | Contemporary |
Electrical and Operational Information
Average Hours | 100000 Hours |
Color Rendering Index (CRI) | 80, 85 |
Lumens | 384, 409 |
Voltage | 120 |
Wattage | 8 |
Watts Per Bulb | 8 |
Electrical and Operational Information
Average Hours | 100000 Hours |
Color Rendering Index (CRI) | 80, 85 |
Lumens | 384, 409 |
Voltage | 120 |
Wattage | 8 |
Watts Per Bulb | 8 |
Warranty and Product Information
Certifications | UL |
Collection | LEDme |
Country Of Origin | China |
IC Rating | Non-IC |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year |
Series | LEDme 3 Inch Recessed |
Title 24 | Yes |
Warranty and Product Information
Certifications | UL |
Collection | LEDme |
Country Of Origin | China |
IC Rating | Non-IC |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year |
Series | LEDme 3 Inch Recessed |
Title 24 | Yes |
