Viaggio Motivo Right Handed Solid Brass Privacy Door Lever Set with Bella Lever and Quadrato Leather Backplate - 2-3/4" Backset

Viaggio hardware is made in Europe and hand-assembled in the US. Each piece is created from solid-forged brass, and then precision polished for the sleekest looks. All Viaggio Hardware comes standard with luxury concealed screw mechanism for a clean installation, leaving no visible fasteners.

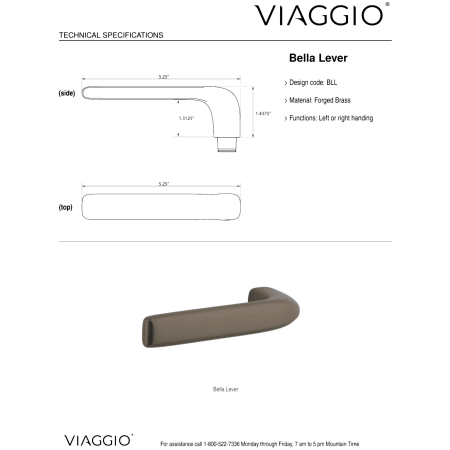

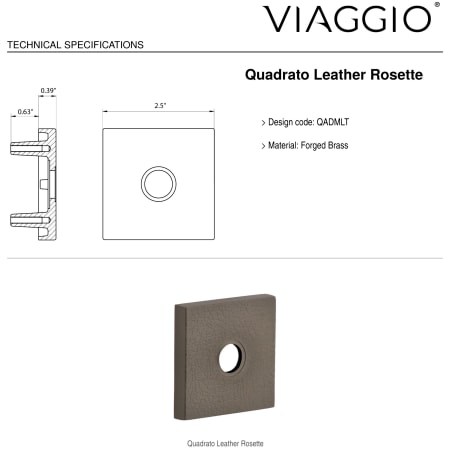

The precise lines of the Quadrato Rosette provide a crisp display of modern simplicity. With meticulous corners and mathematical symmetry, this square rosette gains depth and subtle flair from its organic leather texture. Add the Bella lever, with its fluid lines that taper into a delicate plane. All Viaggio products are made with longevity and durability in mind so they can be enjoyed for generations to come.

Privacy: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

• Made from solid forged brass and precision polished for superior quality
• Features concealed screw mechanism (CSM) for clean, uncomplicated style with no visible screws
• Includes a complete set for both sides of one door
• Easy to install and works with modern pre-drilled doors
• Lifetime mechanical warranty
• Comes with all necessary mounting hardware

Includes:

• Knob and plate assemblies
• One (1) strike plate with two (2) wood screws
• One (1) faceplate
• One (1) latch
• One (1) plastic anti-rotation block
• One (1) CSM subplate
• One (1) CSM spindle
• One (1) plastic brass bushing
• One (1) bushing tool
• One (1) nylon washer
• One (1) hex wrench
• One (1) privacy release key
• One (1) privacy pin and extender
• Mounting hardware

Specifications:

• Backset: 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Right
• Handle Length: 5-1/4"
• Handle Projection: 1-7/16"
• Trim Width: 2-1/2"
• Trim Height: 2-1/2"
• Product Weight: 4.25 lbs
• Latch Faceplate: Square Corner
