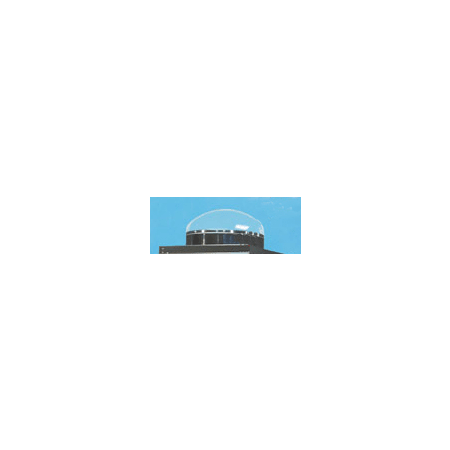

Velux Commercial SUN TUNNEL Curb Flashing Skylight Kit with 9' Run Length from the TCR Collection

Commercial SUN TUNNEL Curb Flashing Skylight Kit with 9' Run Length from the TCR Collection

Areas with a drop ceiling, long shaft applications and interior area of buildings all lend themselves to the commercial SUN TUNNEL skylight. For your next commercial project, trust the name you know in day lighting from above - VELUX.

Optimal transmission and distribution of light in space

The TCR commercial SUN TUNNEL skylight provides optimal transmission and distribution of light in commercial spaces by providing:

• 98% highly specular reflective rigid tunnel
• Excellent distribution of light by the prismatic diffuser at ceiling level

Easy and fast installation

The Model TCR can be installed quickly and easily:Unique telescopic design of rigid tunnel (no vertical seam assembly required)

• Upper elbow designed to be adjusted from the roof
• Flexible bottom elbow allows for easy installation even at sharp offsets (flex elbow bends and does not significantly reduce aperture when offset)

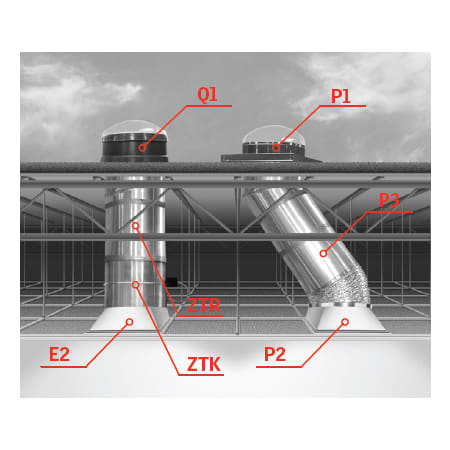

Includes

• P1 Curb Flashing Kit
• P2 Ceiling Kit
• P3 5' Tunnel Kit
• 0002 24" Extension

Specifications

• Tunnel has a 22" diameter
• Curb Flashing installation
• Highly reflective tunnel
• 36" rigid top elbow, 30 ° offset
• 9' Run Length (Distance from Roof to Ceiling)
• 9" tall round-to-square adapter box
• Prismatic diffuser
• Compatible with drop, open, or hard ceiling applications
• Daylight controller available

Installation

• 12" has already been subtracted for curb height and flashing overlap with collar
• Run length calculated based on vertical drop
• Run length accounts for standard 2" overlap between components
