The TOTO CST744EF.10#01 has been discontinued

** See similar or replacement items below **

TOTO
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Color Chart
Toto-CST744EF.10-Lifestyle
Toto-CST744EF.10-Lifestyle
If you have been considering replacing your toilet, yet are wondering how complicated of a job this is? Take a moment and we'll show you just how simple this job can actually be.
Take a moment to see just how TOTO takes flush testing seriously.
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Alternative Image
Toto-CST744EF.10-Color Chart
Toto-CST744EF.10-Lifestyle
Toto-CST744EF.10-Lifestyle
If you have been considering replacing your toilet, yet are wondering how complicated of a job this is? Take a moment and we'll show you just how simple this job can actually be.
Take a moment to see just how TOTO takes flush testing seriously.
Item # bci1172959

TOTO Eco Drake 1.28 GPF Two Piece Elongated Toilet with E-Max Flush System - Less Seat

Model: CST744EF.10#01
|
Item: bci1172959

Details

Toto CST744EF.10 Features:

  • Two-piece configuration allows for easier access to the area around the toilet
  • Elongated bowl provides extra comfort, extending out an extra 1-1/2" compared to a round configuration
  • Covered under Toto's one year limited warranty

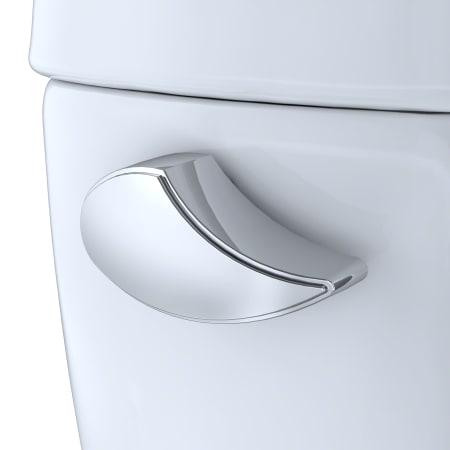

  • Chrome left-hand trip lever
  • Made from vitreous china
  • Floor mounted installation
  • E-Max flushing system provides a high-efficiency flush as 1.28 GPF
  • ADA compliant - complies with the standards for toilets set forth by the Americans with Disabilities Act
  • WaterSense certified - toilet uses 20% less water than the current standard while maintaining superior performance

Toto CST744EF.10 Specifications:

  • Overall Height: 30-1/8" (bottom of the base to the highest point on the toilet)
  • Overall Length: 28-1/8" (back of the tank to the front of the rim)
  • Overall Width: 19-1/2" (furthest point on the left to the furthest on the right)
  • Bowl Height: 16-1/8" (bottom of the base to the rim)
  • Flow Rate: 1.28 gallons-per-flush
  • Water Area: 7-7/8" x 10-5/16" (inner rim dimensions length X width)
  • Tank Width: 19-1/2" (left most to right most points on tank)
  • Tank Length: 7-1/8" (back most to front most points on tank)
  • Trapway (Discharge Passageway) Size: 2-1/8"
  • Rough-In: 10"
  • Distance Between Toilet Seat Installation Holes: 5-1/2"
Additional TOTO Links

Dimensions and Measurements

Bowl Height
16.125 in.
Depth
28.125 in.
Flush Valve Size
3 in.
Gallons Per Flush
1.28
Height
30.125 in.
Length
28.125 in.
Rough In
10 in.
Trapway
2.125 in.
Water Area
7.875 x 10.313
Width
19.5 in.

Dimensions and Measurements

Bowl Height
16.125 in.
Depth
28.125 in.
Flush Valve Size
3 in.
Gallons Per Flush
1.28
Height
30.125 in.
Length
28.125 in.
Rough In
10 in.
Trapway
2.125 in.
Water Area
7.875 x 10.313
Width
19.5 in.

Included Components

Angle Supply Included
No
Seat Included
No

Included Components

Angle Supply Included
No
Seat Included
No

Characteristics and Features

Bowl Shape
Elongated
Configuration
Two Piece
Flush Type
Gravity Flush
Installation Type
Floor Mounted
Material
Vitreous China
Theme
Basic
Trip Lever Finish
Chrome
Trip Lever Placement
Left
Water Efficient
Yes

Characteristics and Features

Bowl Shape
Elongated
Configuration
Two Piece
Flush Type
Gravity Flush
Installation Type
Floor Mounted
Material
Vitreous China
Theme
Basic
Trip Lever Finish
Chrome
Trip Lever Placement
Left
Water Efficient
Yes

Manufacturer Technology

Flush Technology
E-Max

Manufacturer Technology

Flush Technology
E-Max

Warranty and Product Information

ADA
Yes
CA Drought Compliant
Yes
Lead Leaching Certified NSF/ANSI 61
N/A (Regulation does not apply)
TX Drought Compliant
Yes
WaterSense Certified
Yes

Warranty and Product Information

ADA
Yes
CA Drought Compliant
Yes
Lead Leaching Certified NSF/ANSI 61
N/A (Regulation does not apply)
TX Drought Compliant
Yes
WaterSense Certified
Yes
