The Sedona by Lynx L500R-LP has been discontinued

** See similar or replacement items below **

Sedona by Lynx

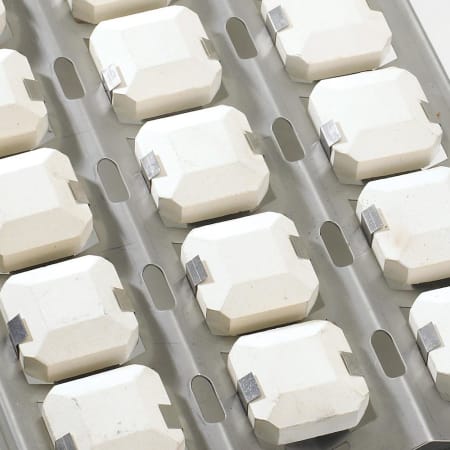

Sedona By Lynx-L500R LP-Ceramic Radiant Briquette Trey

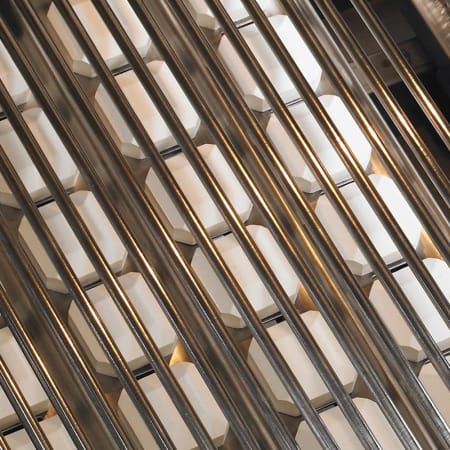

Sedona By Lynx-L500R LP-Electro-Polished Stainless Steel Grates

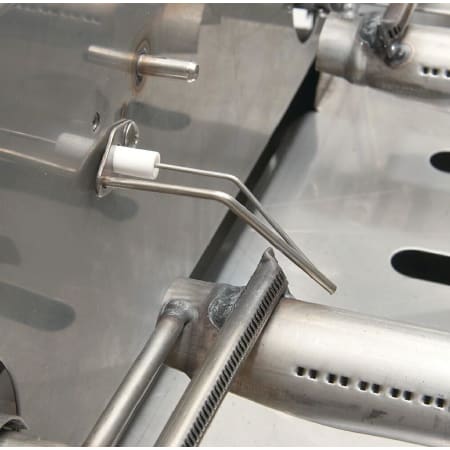

Sedona By Lynx-L500R LP-Ignition System
Sedona By Lynx-L500R LP-Lynx Hood Assist Kit
Sedona By Lynx-L500R LP-ProSear Burner

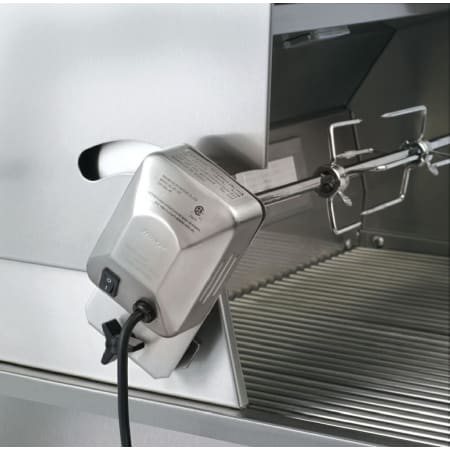

Sedona By Lynx-L500R LP-Rotisserie Motor with Heavy Duty Spit Rod and Forks

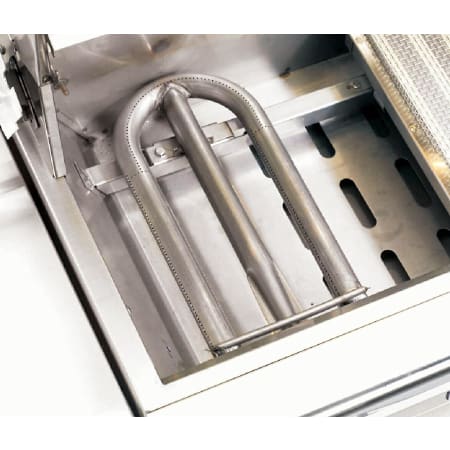

Sedona By Lynx-L500R LP-Stainless Steel Tube Burner
Sedona By Lynx-L500R LP-Ceramic Radiant Briquette Trey
Sedona By Lynx-L500R LP-Electro-Polished Stainless Steel Grates
Sedona By Lynx-L500R LP-Ignition System
Sedona By Lynx-L500R LP-Lynx Hood Assist Kit
Sedona By Lynx-L500R LP-ProSear Burner
Sedona By Lynx-L500R LP-Rotisserie Motor with Heavy Duty Spit Rod and Forks
Sedona By Lynx-L500R LP-Stainless Steel Tube Burner
Item # bci2958924

Sedona by Lynx 58500 BTU 30 Inch Wide Liquid Propane Built-In Grill with Rear Infrared Burner Rotisserie System

Model: L500R-LP
|
Item: bci2958924

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Product Features:

  • Durable stainless steel tube burners positioned under briquette tray for consistent evenly-distributed heat
  • Rotisserie burner can be operated independently of main burners
  • Knob activated spark ignition system includes battery back-up ensuring ignition in the event of power failure
  • Robust electro-polished stainless steel grates
  • Large easy to read temperature gauge
  • Spring assisted hood kit allows safe and easy opening
  • 1049-sq.-in. cooking surface (728 primary, 321 secondary)
  • Controls are illuminated by blue LEDs
  • Grilling surface is illuminated by a halogen light
  • Stainless steel welded construction removes gaps where grease and moisture can condense

Product Technologies:

  • Ceramic Radiant Briquettes: These high-density ceramic briquettes are clipped in for effortless cleaning and ensure even heat distribution across the entire grilling surface. Flare-ups are reduced by keeping grease and oil away from direct flames. Further, any drippings will instead hit the briquettes and vaporize which returns flavors to the food.
  • Superior Construction and Finish: This grill is constructed of heavy gauge stainless steel manufactured in the USA to ASTM standards. All welded joints, seams and edges have been exquisitely polished.
  • Rotisserie System with Infrared Burner: The infrared burner in this system spans the back of the cooking area and provides consistent heat for cooking with included heavy-duty spit rod and spit forks. The rotisserie motor is compact and easy to remove when not in use.

Specifications:

  • BTU Output: 58500
  • Height: 24.625"
  • Width: 30"
  • Depth: 25.3125"
  • Cutout Height: 10"
  • Cutout Width: 29"
  • Cutout Depth: 21.25"
  • Control Type: Turn Knob
  • Fuel Type: Liquid Propane
  • Burner Style: Infrared, Stainless Steel
  • Number of Burners: 3
  • Ignition Type: Electronic
  • Total Cooking Area: 733
  • Rotisserie: Yes
  • Height Closed: 24.625"
  • Height Opened: 33"
  • Total BTUs: 58500

Product Variations:

  • L500 LP: 46000 BTU 30 Inch Wide Liquid Propane Built-In Grill
  • L500 NG: 46000 BTU 30 Inch Wide Natural Gas Built-In Grill
  • L500R LP (This Model): 58500 BTU 30 Inch Wide Liquid Propane Built-In Grill with Rear Infrared Burner Rotisserie System
  • L500R NG: 58500 BTU 30 Inch Wide Natural Gas Built-In Grill with Rear Infrared Burner Rotisserie System
Additional Sedona by Lynx Links

Dimensions and Measurements

Cutout Depth
21.25 in.
Cutout Height
10 in.
Cutout Width
29 in.
Depth
25.3125 in.
Height
24.625 in.
Nominal Depth
26 in.
Nominal Height
25 in.
Nominal Width
30 in.
Product Weight
168 lbs.
Total Cooking Area
733 sq. in.
Width
30 in.

Dimensions and Measurements

Cutout Depth
21.25 in.
Cutout Height
10 in.
Cutout Width
29 in.
Depth
25.3125 in.
Height
24.625 in.
Nominal Depth
26 in.
Nominal Height
25 in.
Nominal Width
30 in.
Product Weight
168 lbs.
Total Cooking Area
733 sq. in.
Width
30 in.

Included Components

Rotisserie
Yes

Included Components

Rotisserie
Yes

Characteristics and Features

Burner Style
Infrared, Stainless Steel
Control Type
Knob
Installation Type
Built-In
Number Of Burners
3
Theme
Contemporary

Characteristics and Features

Burner Style
Infrared, Stainless Steel
Control Type
Knob
Installation Type
Built-In
Number Of Burners
3
Theme
Contemporary

Electrical and Operational Information

BTU Output
58500
Fuel Type
Liquid Propane
Ignition Type
Electronic
Total BTUs
58500

Electrical and Operational Information

BTU Output
58500
Fuel Type
Liquid Propane
Ignition Type
Electronic
Total BTUs
58500

Warranty and Product Information

Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
2 Year Parts, 5 Year Parts, Limited Lifetime
Outdoor Approved
Yes

Warranty and Product Information

Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
2 Year Parts, 5 Year Parts, Limited Lifetime
Outdoor Approved
Yes
