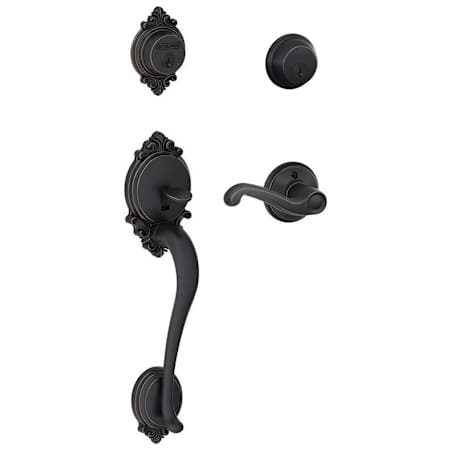

Schlage Brookshire Double Cylinder Handleset with Right Handed Interior Flair Lever from the F-Series

Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

For over 90 years, Schlage has been increasing the security and curb appeal of your home with the best door locks and door hardware. The Brookshire Collection is no exception as it offers a turn of the century inspired handleset that will serve as the perfect centerpiece to the entrance of your home. Paired with the classic Flair interior lever, this double cylinder handleset will protect and enhance the things that matter most to you.

Features:

• Brookshire Double Cylinder Handleset with Interior Right-Handed Flair Lever, Complete Lockset
• ANSI/BHMA A156.36, Security Grade 1 - Highest Residential Security Rating Available
• Constructed from High Quality Materials with Durability in Mind
• Features a Right-Handed Design
• Simple One-person Installation; No Extra Hands Needed
• 1" x 2-1/4" Dual Option - Round Corner and Drive-in Latch (Standard Configuration)
• Adjusts to Fit All Standard Door Preps
• Handleset Finish Matches Latches, Strikes, and Screws
• Limited Lifetime Mechanical and Finish Warranty
• Complies with ADA Accessibility Guidelines

Key Product Attributes:

• Double Cylinder Function: Schlage double cylinder handlesets require a key to unlock the mechanism on both the interior and exterior sides of the door. Double cylinder locks can pose a safety hazard in times of emergency due to requiring a key to unlock from the inside; please check local codes before installing.



• Adjustable Through-Bolt: Schlage's patented adjustable through-bolt can move 1-1/2" up or down to fit a variety of pre-existing holes eliminating the need to re-drill and allowing for simple and easy installation.

Specifications:

• Backset: Adjustable to 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1" Standard, 7/8" Drive-In
• Door Thickness: 1-5/8" to 1-3/4" (standard)
• Handing: Right
• Center to Center: 5-1/2"
• Interior Lever Length: 4"
• Interior Lever Rose Diameter: 2-3/4"
• Interior Lever Projection: 2-1/4"
• Exterior Handle Length: 13-1/4"
• Grip Projection: 3-1/2"
• Grip Center to Center: 8-1/2"
• Cylinder: 5 Pin Tumbler, C Keyway
• Keys: 2 Brass Cut Keys
• Latch Faceplate: Radius Corner and Circular Drive-In
• Deadbolt Throw: 1"

Additional Functions:

• F58-BRK: Single Cylinder Brookshire Exterior Handleset with Interior Option
• F59-FLA-RH: Single Cylinder Right-Handed Flair Lever Interior Pack
• F92-BRK: Brookshire Exterior Dummy Handle
• F94-FLA-RH: Right-Handed Flair Lever Dummy Interior Pack
