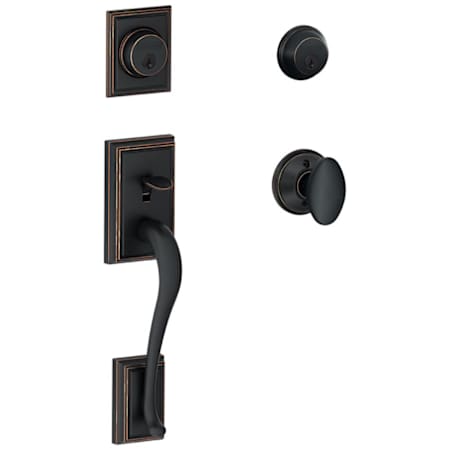

Schlage Double Cylinder Addison Handleset with Siena Interior Knob from the F-Series
Model: F62ADD716SIE|Item: bci1346098
from theAddison Collection
$234.22
Finish: Aged Bronze -
3 In Stock
Finish: Aged Bronze -
3 In Stock
Aged Bronze
Details
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Schlage F62-ADD-SIE Double Cylinder Entrance Handleset with Interior Siena Knob from the Addison Collection
- Addison double cylinder handle set with Siena Interior Knob
- The deadbolt is thrown or retracted by a key from either side.
- Door latch is retracted by a thumb piece from the outside or by the inside lever
- Bolt automatically deadlocks when it is fully thrown.
- Installation should be in accordance with existing codes only, to ensure life safety emergency egress.
- For Right or Left handed applications
- Solid Brass Exterior Trim
- Wrought Brass Interior Trim
- Lifetime Limited Mechanical and Finish Warranty
- Exterior Handleset Height: 12-7/16" (without the deadbolt)
- Exterior Handle Projection: 3-3/16"
- Interior Knob Diameter: 2-9/16"
- Interior Rose Diameter: 2-3/4"
- Interior Knob Projection: 2-3/8"
- Faceplates (Part 12-326): Supplied with 1/4" Round Corner, Square Corner and Drive-In Faceplates
- Strike Plates (Part 10-269): Supplied with a Round Corner Deadbolt Strike (10-116), Square Corner Full Lip Strike Plate (10-026) and Round Corner Full Lip Strike Plate (10-027) with Dimensions of 2-1/4" x 1-5/8"
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Center to Center | 4, 5.5 in. |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2" |
Edge Bore | 1" |
Grip Center to Center | 8.5 in. |
Handle Projection | 3.1875 in. |
Trim Height | 12.4375 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Center to Center | 4, 5.5 in. |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2" |
Edge Bore | 1" |
Grip Center to Center | 8.5 in. |
Handle Projection | 3.1875 in. |
Trim Height | 12.4375 in. |
Included Components
Cylinder Included | Yes |
Interior Included | Yes |
Included Components
Cylinder Included | Yes |
Interior Included | Yes |
Characteristics and Features
Adjustable Throughbolt | Yes |
Cylinder | 5 Pin Schlage C |
Cylinder Type | Double Cylinder |
Function | Keyed Entry, Double Cylinder |
Handing | Left, Reversible, Right |
Handle Design | Siena |
Handle Material | Metal |
Handle Style | Grip |
Handleset Design | Addison |
Interior Handle Style | Knob |
Keyway | C |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Lock Style | Single Point |
Mount | Sectional |
Shape | Egg |
Style | Contemporary/Modern |
Theme | Transitional, Modern |
Trim Design | Addison |
Characteristics and Features
Adjustable Throughbolt | Yes |
Cylinder | 5 Pin Schlage C |
Cylinder Type | Double Cylinder |
Function | Keyed Entry, Double Cylinder |
Handing | Left, Reversible, Right |
Handle Design | Siena |
Handle Material | Metal |
Handle Style | Grip |
Handleset Design | Addison |
Interior Handle Style | Knob |
Keyway | C |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Lock Style | Single Point |
Mount | Sectional |
Shape | Egg |
Style | Contemporary/Modern |
Theme | Transitional, Modern |
Trim Design | Addison |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Addison |
Series | F-Series |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Addison |
Series | F-Series |
