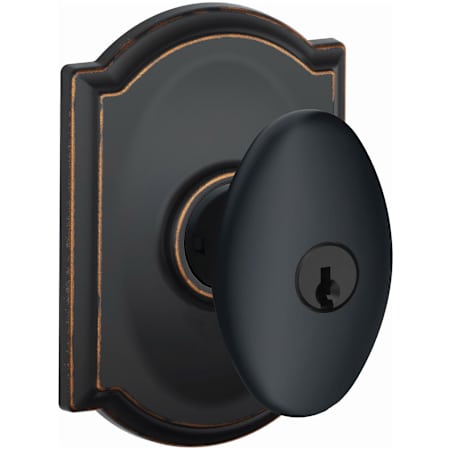

Schlage Siena Keyed Entry Single Cylinder Door Knob Set with Decorative Camelot Trim
Model: F51ASIE716CAM|Item: bci2948897
Details
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Keyed Entry (Single Cylinder) Function: Schlage single cylinder keyed entry door knob sets can be locked and unlocked from the exterior with a key, and then locked or unlocked from the inside with an associated turn-button. While primarily used to secure entrances and side doors, it can be used anywhere a little extra security is desired.
Product Features:
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time)
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take just a matter of minutes.
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
Specifications:
- Backset: Adjustable to 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 7/8"
- Projection: 2-3/8"
- Door Thickness: 1-3/8" - 1-3/4"
- Handing: Left, Right, Reversible
- Product Weight: 1.55 lbs
- Handle Design: Siena
- Trim Design: Camelot
- Latch Faceplate: Drive-in, Square Corner, Round Corner
- Cylinder: 5 Pin Schlage C
- F10-SIE-CAM: Passage Door Knob Set
- F40-SIE-CAM: Privacy Door Knob Set
- F51A-SIE-CAM (This Model): Panic Proof Keyed Entry Door Knob Set
- F80-SIE-CAM: Storeroom Keyed Entry Door Knob Set
- F170-SIE-CAM: Single Dummy Knob
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 7/8" |
Handle Projection | 2.375 in. |
Product Weight | 1.55 lbs. |
Trim Height | 4.125 in. |
Trim Width | 2.75 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 7/8" |
Handle Projection | 2.375 in. |
Product Weight | 1.55 lbs. |
Trim Height | 4.125 in. |
Trim Width | 2.75 in. |
Characteristics and Features
Concealed Screws | No |
Cylinder | 5 Pin Schlage C |
Cylinder Type | Single Cylinder |
Function | Single Cylinder, Keyed Entry |
Handing | Reversible, Right, Left |
Handle Design | Siena |
Handle Material | Metal |
Keyway | C |
Knob Shape | Egg |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Locking Mechanism | Thumbturn |
Panic Proof | Yes |
Rosette Shape | Arch |
Theme | Modern |
Trim Design | Camelot |
Characteristics and Features
Concealed Screws | No |
Cylinder | 5 Pin Schlage C |
Cylinder Type | Single Cylinder |
Function | Single Cylinder, Keyed Entry |
Handing | Reversible, Right, Left |
Handle Design | Siena |
Handle Material | Metal |
Keyway | C |
Knob Shape | Egg |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Locking Mechanism | Thumbturn |
Panic Proof | Yes |
Rosette Shape | Arch |
Theme | Modern |
Trim Design | Camelot |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Camelot, Siena |
Manufacturer Warranty | Limited Lifetime Mechanical, Lifetime Finish |
Series | F-Series |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Camelot, Siena |
Manufacturer Warranty | Limited Lifetime Mechanical, Lifetime Finish |
Series | F-Series |
