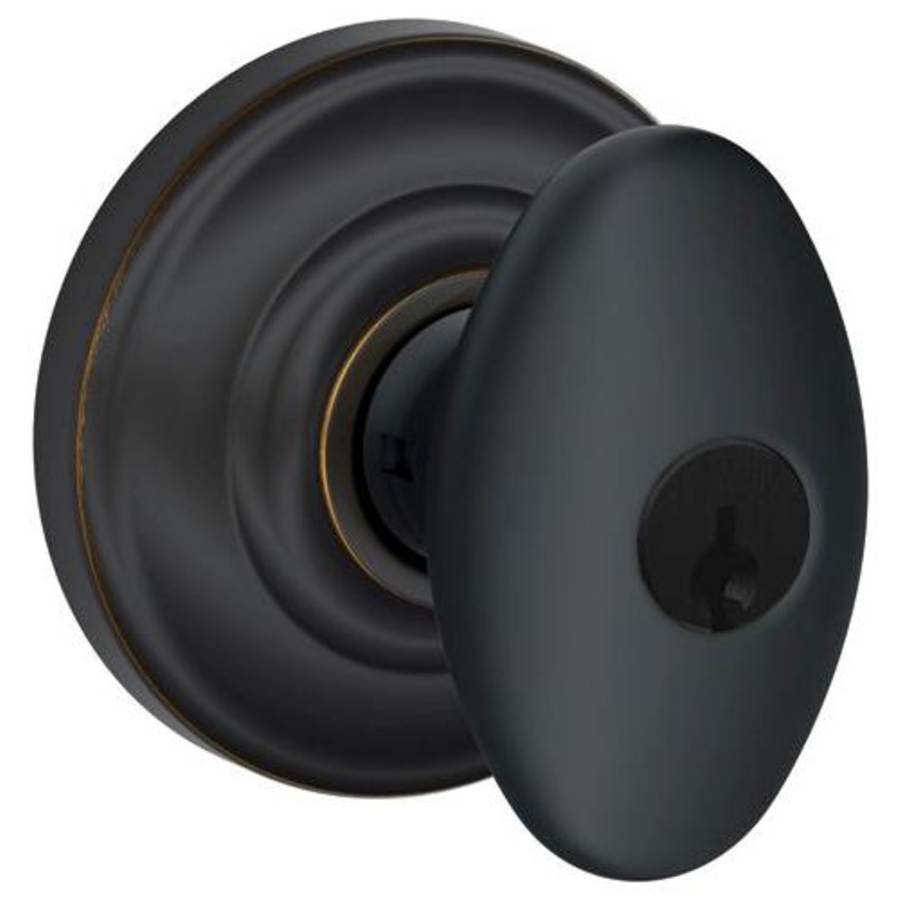

Schlage Siena Keyed Entry Door Knob Set with Decorative Andover Trim
Model: F51ASIE716AND|Item: bci2344478
Details
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Schlage Siena Keyed Entry F51A Panic Proof Door Knob with Andover Rosette
New F51A Panic Proof Function: This new and improved panic proof function will now unlock when the door is opened from the inside, allowing a quick and convenient exit.
For over 90 years, Schlage has been increasing the security and curb appeal of your home with the best door locks and door hardware. The F-Series is no exception as it offers a variety of functions, roses, as well as knob and lever styles, intended to suit your unique taste and security needs. Clean and classic, the egg shape of the Siena knob is a functional favorite: both versatile and aesthetically pleasing.
This Siena Keyed Entry Panic Proof Door Knob Set Includes: Two (2) Siena Knobs, Two (2) Decorative Andover Roses (Concealed Screws) and Two (2) Standard Roses (Non-Concealed Screws). Both Concealed and Standard Rosettes will be packaged in the box with the knob/lever.
Features:
- Siena Keyed Entry Panic Proof Door Knob Set with Decorative Andover Rose
- ANSI/BHMA A156.2, Security Grade 2
- Constructed from High Quality Materials with Durability in Mind
- Features a Reversible, Symmetrical Design for Right or Left Handed Doors

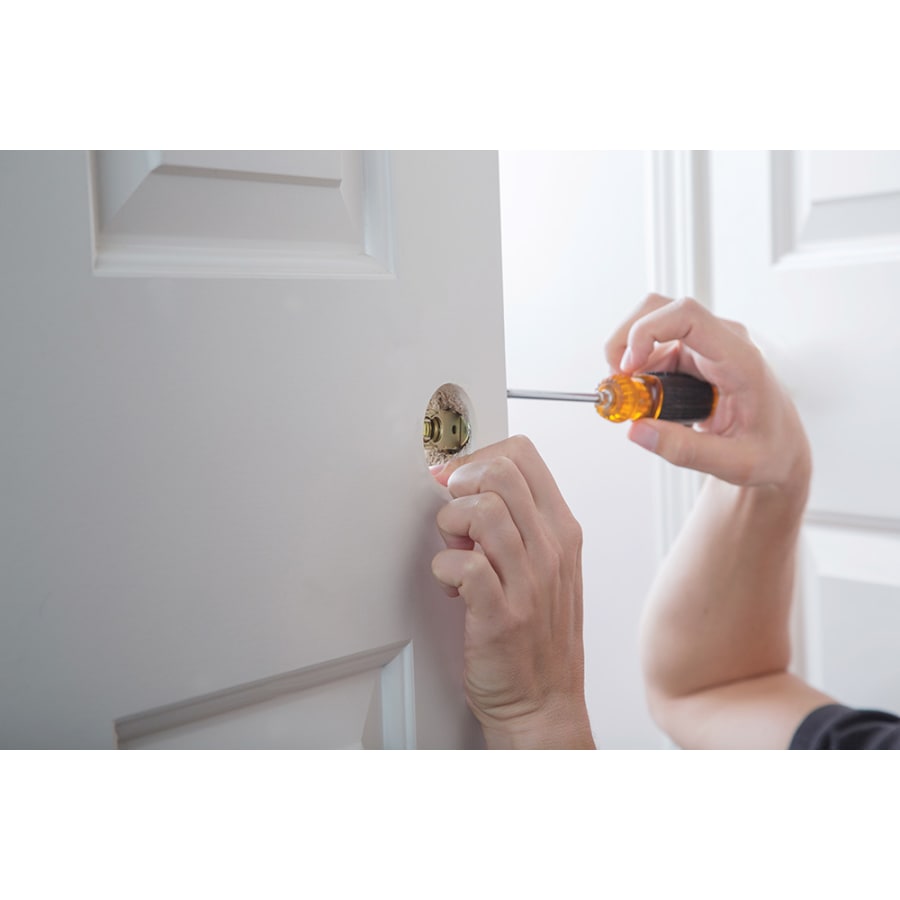

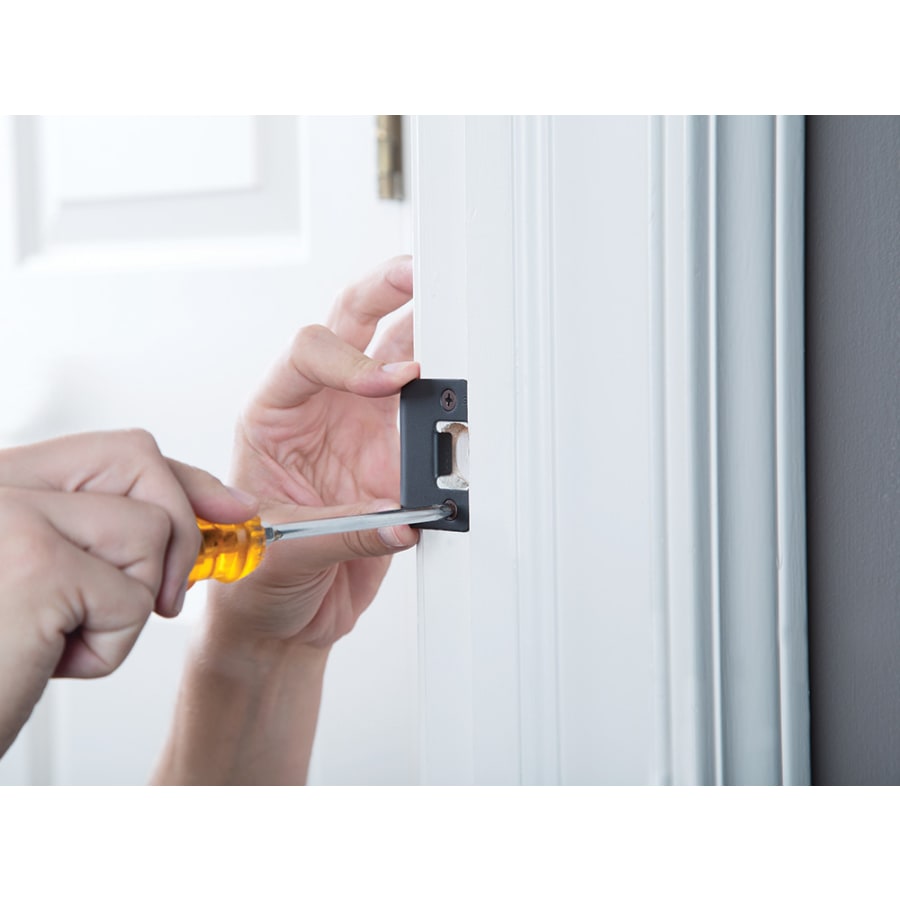

- Simple One-person Installation; No Extra Hands Needed
- Concealed Screws
- 1" x 2-1/4" Dual Option - Round Corner and Drive-in Latch (Standard Configuration)
- Limited Lifetime Mechanical and Finish Warranty
- Complies with ADA Accessibility Guidelines
Key Product Attributes:
- Keyed Entry Function (Single Cylinder): Schlage's keyed entry knobs can be locked from the exterior with a key, and then locked or unlocked from the inside with a turn-button. Keyed entry sets are most commonly used in residential locations due to safety and ease of use, and are primarily used for securing entrances or private offices.
- Panic Proof: This feature for keyed or privacy locks ensures that the interior side is free and unlocked allowing quick exit of the room without having to unlock the hardware (often required by some local fire code).
- Concealed Screws: An aesthetically desirable feature, concealed screws provide a clean and elegant finish to your door hardware—allowing the decorative features of Schlage's Andover rosette to be fully showcased.
Specifications:
- Backset: Adjustable to 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1" Standard, 7/8" Drive-In
- Door Thickness: 1-5/8" to 1-3/4" (standard)
- Handing: Reversible
- Knob Diameter: 2-9/16"
- Rose Diameter: 2-3/4"
- Knob Projection: 2-3/8"
- Latch Faceplate: Radius Corner and Circular Drive-In
- Cylinder: 5 Pin Tumbler, C Keyway
- Keys: 2 Brass Cut Keys
Additional Functions:
- F10-SIE-AND: Siena Passage Door Knob Set with Decorative Andover Rose
- F40-SIE-AND: Siena Privacy Door Knob Set with Decorative Andover Rose
- F170-SIE-AND: Siena Single Dummy Door Knob with Decorative Andover Rose
- F54-SIE-AND: Siena Keyed Entry Door Knob Set with Fixed Interior Knob When Locked and Decorative Andover Rose
- F80-SIE-AND: Siena Storeroom Door Knob Set with Decorative Andover Rose
Dimensions and Measurements
Backset | 2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/4", 1-3/8" |
Edge Bore | 1", 7/8" |
Handle Height | 2.5625 in. |
Handle Projection | 2.375 in. |
Handle Width | 2.5625 in. |
Trim Height | 2.75 in. |
Trim Width | 2.75 in. |
Dimensions and Measurements
Backset | 2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/4", 1-3/8" |
Edge Bore | 1", 7/8" |
Handle Height | 2.5625 in. |
Handle Projection | 2.375 in. |
Handle Width | 2.5625 in. |
Trim Height | 2.75 in. |
Trim Width | 2.75 in. |
Included Components
Cylinder Included | Yes |
Included Components
Cylinder Included | Yes |
Characteristics and Features
Concealed Screws | Yes |
Cylinder | 5 Pin Schlage C |
Cylinder Type | Single Cylinder |
Function | Single Cylinder, Keyed Entry |
Handing | Left, Reversible, Right |
Handle Design | Siena |
Handle Material | Metal |
Keyway | C |
Knob Shape | Egg |
Latch Faceplate | Drive-In, Round Corner |
Locking Mechanism | Thumbturn |
Panic Proof | Yes |
Rosette Shape | Round |
Theme | Traditional |
Trim Design | Andover |
Characteristics and Features
Concealed Screws | Yes |
Cylinder | 5 Pin Schlage C |
Cylinder Type | Single Cylinder |
Function | Single Cylinder, Keyed Entry |
Handing | Left, Reversible, Right |
Handle Design | Siena |
Handle Material | Metal |
Keyway | C |
Knob Shape | Egg |
Latch Faceplate | Drive-In, Round Corner |
Locking Mechanism | Thumbturn |
Panic Proof | Yes |
Rosette Shape | Round |
Theme | Traditional |
Trim Design | Andover |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Andover |
Fire Rated | No |
Series | F-Series |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Andover |
Fire Rated | No |
Series | F-Series |
