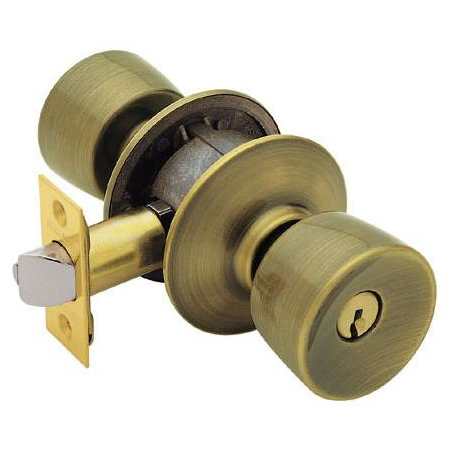

Schlage Bell Keyed Entry Door Knob Set
Model: F51ABEL609|Item: bci491754
from theBell Collection
$38.12
Finish: Antique Brass -
16 In Stock
Finish: Antique Brass -
16 In Stock
Antique Brass
Details
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Single Cylinder Entrance Lock Door Knob Set from the Bell Collection
New F51A Panic Proof Function: This new and improved panic proof function will now unlock when the door is opened from the inside, allowing a quick and convenient exit.
- Interior screws are exposed
- Schlage Panic Proof Keyed Entry Knob set
- Unlocked/locked by key outside or by turn-button inside.
- Inside knob always free (Panic Proof).
- Unit is non-handed and field reversible.
- Faceplates (Part 16-211): Supplied with 1/4" Round Corner, Square Corner and Drive-In Faceplates
- Strike Plates (Part 10-063): Supplied with Square Corner and Round Corner Full Lip Strike Plates (Dimensions: 2-1/4" x 1-5/8")
Manufacturer Resources
Installation GuideDimensions and Measurements
Backset | 2-3/4", 2-3/8" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 7/8" |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 7/8" |
Characteristics and Features
Concealed Screws | No |
Cylinder | 5 Pin Schlage C |
Cylinder Type | Single Cylinder |
Function | Keyed Entry, Entrance, Single Cylinder |
Handing | Left, Reversible, Right |
Handle Design | Bell |
Handle Material | Metal |
Keyway | C |
Knob Shape | Tulip |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Locking Mechanism | Thumbturn |
Rosette Shape | Round |
Style | Traditional/Classic |
Theme | Transitional |
Trim Design | Plymouth |
Characteristics and Features
Concealed Screws | No |
Cylinder | 5 Pin Schlage C |
Cylinder Type | Single Cylinder |
Function | Keyed Entry, Entrance, Single Cylinder |
Handing | Left, Reversible, Right |
Handle Design | Bell |
Handle Material | Metal |
Keyway | C |
Knob Shape | Tulip |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Locking Mechanism | Thumbturn |
Rosette Shape | Round |
Style | Traditional/Classic |
Theme | Transitional |
Trim Design | Plymouth |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Bell |
Series | F-Series |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Bell |
Series | F-Series |
