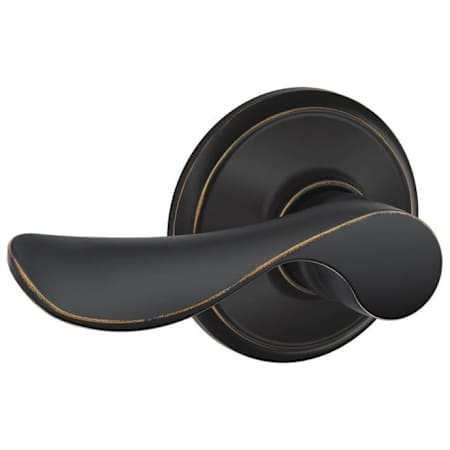

Schlage Champagne Passage Door Lever Set
Model: F10CHP716|Item: bci1726289
Details
F-Series Collection Champagne Passage Door Lever Set
The right lever helps protect your home, and the privacy of each room within it. They also reflect your unique style. With Schlage levers, you know you’re getting the durability you need, because our products have been specially designed to last a lifetime. And with our wide variety of designs, you’ll also get the freedom to coordinate every detail of your décor—without compromise. Passage levers are free on both sides of the door and are perfect for hall doors, closets, and children's bedrooms.
Features:
- Interior screws are not concealed.
- Non-locking - ideal for closets and rooms where locking is not needed.
- Easy 3-step installation, only a screwdriver needed.
- Surpass all ANSI Grade 2 standards for strength and security..
- Unit is non handed and is field reversible.
- Faceplates (Part 16-080): Supplied with 1/4" round corner and drive-In faceplates..
- Strike Plates (Part 10-027): Supplied with a round strike with dimensions of 2-1/4" x 1-5/8"..
At Schlage®, they’ve been helping people feel more secure for over 90 years. By building commercial grade quality into every product Schlage® makes, from remote security systems to stylish door knobs, they’ve become the leader in home security and hardware products. And with innovative new solutions like wireless and mobile security, Schlage is helping build the homes of the future—and delivering the security products people need to live better, more comfortable lives.
Manufacturer Resources
Installation SheetDimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 7/8" |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 7/8" |
Characteristics and Features
Concealed Screws | No |
Function | Passage |
Handing | Left, Reversible, Right |
Handle Design | Champagne |
Handle Material | Metal |
Latch Faceplate | Drive-In, Round Corner |
Lever Shape | Wave, Designer |
Rosette Shape | Round |
Style | Transitional |
Theme | Transitional |
Trim Design | Plymouth |
Characteristics and Features
Concealed Screws | No |
Function | Passage |
Handing | Left, Reversible, Right |
Handle Design | Champagne |
Handle Material | Metal |
Latch Faceplate | Drive-In, Round Corner |
Lever Shape | Wave, Designer |
Rosette Shape | Round |
Style | Transitional |
Theme | Transitional |
Trim Design | Plymouth |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Champagne |
Series | F-Series |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Champagne |
Series | F-Series |
