Shipping to:Hilliard, OH

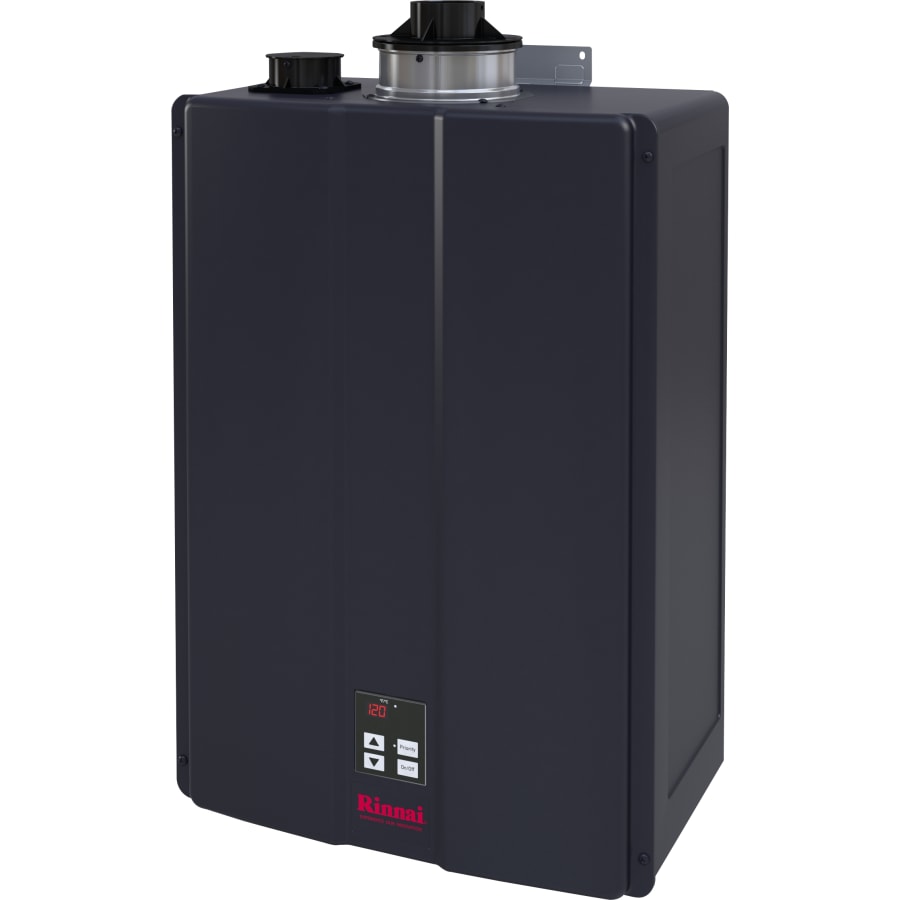

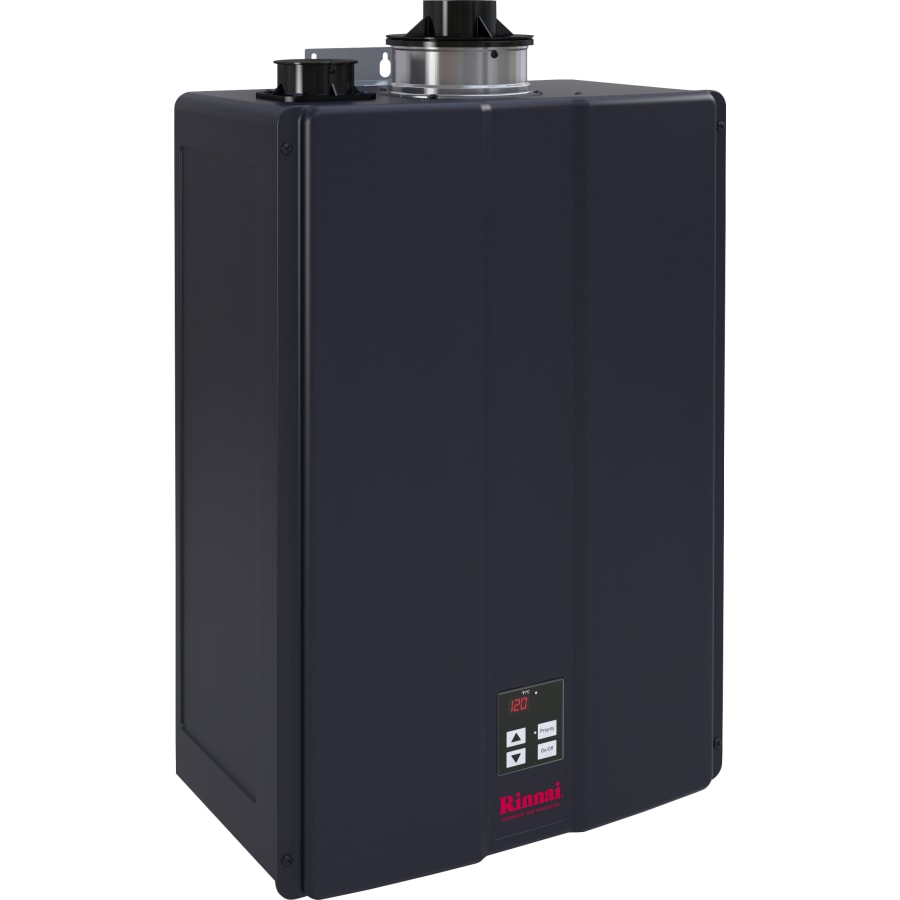

Rinnai Sensei 9 GPM 160000 BTU 120 Volt Commercial Liquid Propane Tankless Water Heater for Indoor Installation
Model: CU160iP|Item: bci3417956
from theSensei Collection
$1,223.46
Finish: Charcoal -
Special Order
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 6 to 10 weeks
-Details
Features:
- 97% thermal efficiency, commercial Energy Star certified
- Ultra low NOx compliant
- Approved for high altitude up to 10,200 ft. (3,109 m)
- Integrated temperature controller that provides 98°F to 185°F, no external controller required
- Commercial warranty: Limited 6-year on the heat exchanger, 5-year on parts, up to 2 years on labor
- Isolation valves included
- Increase savings with commercial Energy Star certified tankless water heaters that operate more efficiently on-demand to provide an endless supply of hot water
- Wi-Fi ready with optional Rinnai Control-R wireless module (not included)
- Professional installation required; call 84-GO-Rinnai for assistance
Safety Features:
- Flame failure - flame rod
- Boiling protection
- Combustion fan RPM check
- Over current - glass fuse
- Remaining flame (OHS)
- Automatic frost protection
Specifications:
- Width: 14-3/4"
- Height: 33-7/8"
- Depth: 22-1/16"
- Product Weight: 72.3 lbs.
- Fuel Type: Liquid Propane
- Gas Connection: 3/4"
- Water Connection: 3/4"
- Water Pressure (Min): 50
- Water Pressure (Max): 150
- Temperature (Min): 98
- Temperature (Max): 140
- Liquid Propane Pressure (Min): 8.0 WC
- Liquid Propane Pressure (Max): 13.5 WC
- Voltage: 120v
- Frequency: 60
- Amperage: 4
Dimensions and Measurements
Activation GPM | 0.4 |
Cutout Height | 47.86 in. |
Cutout Width | 18.76 in. |
Depth | 22.05 in. |
Duct Size | 3" Round |
Gas Connection | 3/4" |
Height | 33.86 in. |
Liquid Propane Pressure (Max) | 13.5 WC |
Liquid Propane Pressure (Min) | 8.0 WC |
Maximum Flow Rate | 9 GPM |
Maximum Gas Input | 160000 |
Minimum Flow Rate | 0.26 GPM |
Minimum Gas Input | 15000 |
Nominal Width | 15 in. |
Product Weight | 72.3 lbs. |
Vent Maximum Run | 1800 in. |
Water Connection | 3/4" |
Water Pressure (Max) | 150 PSI |
Water Pressure (Min) | 50 PSI |
Width | 14.76 in. |
Dimensions and Measurements
Activation GPM | 0.4 |
Cutout Height | 47.86 in. |
Cutout Width | 18.76 in. |
Depth | 22.05 in. |
Duct Size | 3" Round |
Gas Connection | 3/4" |
Height | 33.86 in. |
Liquid Propane Pressure (Max) | 13.5 WC |
Liquid Propane Pressure (Min) | 8.0 WC |
Maximum Flow Rate | 9 GPM |
Maximum Gas Input | 160000 |
Minimum Flow Rate | 0.26 GPM |
Minimum Gas Input | 15000 |
Nominal Width | 15 in. |
Product Weight | 72.3 lbs. |
Vent Maximum Run | 1800 in. |
Water Connection | 3/4" |
Water Pressure (Max) | 150 PSI |
Water Pressure (Min) | 50 PSI |
Width | 14.76 in. |
Included Components
Includes Isolation Valve Kit | Yes |
Includes Remote | Yes |
Recirculation Pump | No |
Included Components
Includes Isolation Valve Kit | Yes |
Includes Remote | Yes |
Recirculation Pump | No |
Characteristics and Features
Control Type | Electronic |
Direct Vent | Yes |
Display Type | Digital |
Heating Technology | Condensing |
Indoor Installation | Yes |
Installation Location | Indoor |
Installation Type | Wall Mounted |
Thermal Efficiency | 0.97 |
Vent Type | Direct Vent |
Water Connection Type | MNPT, NPT |
Characteristics and Features
Control Type | Electronic |
Direct Vent | Yes |
Display Type | Digital |
Heating Technology | Condensing |
Indoor Installation | Yes |
Installation Location | Indoor |
Installation Type | Wall Mounted |
Thermal Efficiency | 0.97 |
Vent Type | Direct Vent |
Water Connection Type | MNPT, NPT |
Manufacturer Technology
Recirculation | Yes |
Manufacturer Technology
Recirculation | Yes |
Electrical and Operational Information
Altitude Certification | 10200 ft. |
Amperage | 4 |
Condensing | Yes |
Default Temperature | 120 °F |
Frequency | 60 Hertz |
Fuel Type | Liquid Propane |
Ignition Type | Electronic |
Max BTU Input | 160000 |
Power Source | Hardwired |
Temperature (Max) | 140 °F |
Temperature (Min) | 98 °F |
Voltage | 120 |
Electrical and Operational Information
Altitude Certification | 10200 ft. |
Amperage | 4 |
Condensing | Yes |
Default Temperature | 120 °F |
Frequency | 60 Hertz |
Fuel Type | Liquid Propane |
Ignition Type | Electronic |
Max BTU Input | 160000 |
Power Source | Hardwired |
Temperature (Max) | 140 °F |
Temperature (Min) | 98 °F |
Voltage | 120 |
Warranty and Product Information
Application | Tankless Water Heater |
Approved for Commercial Use | Yes |
Certifications | AHRI, ANSI, CSA |
Country Of Origin | Japan |
Energy Star | Yes |
Heat Exchanger Warranty | 8-Years Limited Commercial, 15-Years Limited Residential |
Indoor Approved | Yes |
Low Lead Compliant | Yes |
Manufacturer Warranty | 5 Year Parts, 1 Year Labor |
Mobile Home Approved | No |
Outdoor Approved | No |
Product Variation | Multi-Use Water Heater |
Rebate Offered | Yes |
SCAQMD Compliant | Yes |
Warranty and Product Information
Application | Tankless Water Heater |
Approved for Commercial Use | Yes |
Certifications | AHRI, ANSI, CSA |
Country Of Origin | Japan |
Energy Star | Yes |
Heat Exchanger Warranty | 8-Years Limited Commercial, 15-Years Limited Residential |
Indoor Approved | Yes |
Low Lead Compliant | Yes |
Manufacturer Warranty | 5 Year Parts, 1 Year Labor |
Mobile Home Approved | No |
Outdoor Approved | No |
Product Variation | Multi-Use Water Heater |
Rebate Offered | Yes |
SCAQMD Compliant | Yes |
