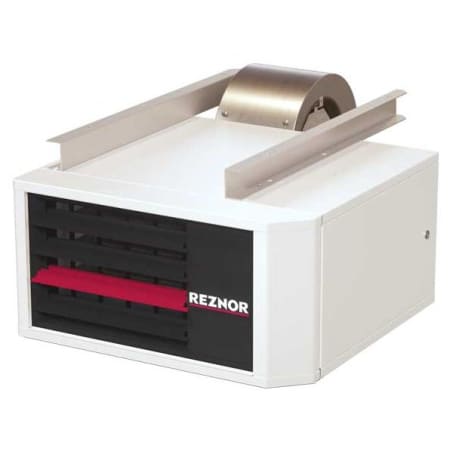

Reznor 120,000 BTU - Separated Combustion Natural Gas Unit Heater - High Static Blower Fan Aluminized Heat Exchanger

Reznor UBZ gas-fired, separated combustion unit heaters are great for space heating applications. These models use outside air for combustion to prevent dirt, lint, dust or other contaminants in the indoor atmosphere from being burned. Model UBZ are available in 14 sizes ranging from 30,000 to 400,000 BTUH gas input and are approved for installation in the United States and Canada by ETL. The UBZ unit heater uses a ductable blower motor for air circulation and feature a two-tone black and white powder coated, scratch-resistant paint scheme with a single red louver. Each unit has clean rounded corners and edges with no visible screws or fasteners. The bottom of the unit is embossed with the Reznor logo.

Reznor UBZ-125 Features:

• TCORE2 titanium stabilized aluminized steel heat exchanger
• Sealed control compartment houses all electrical components
• Vibration/noise isolated fan and venter motors designed for low noise operation
• External status indicating LED that blinks if there is a problem that needs service
• 7-segment display board that shows fault code for quick and easy troubleshooting
• Optional integrated downturn nozzle and integrated vertical louvers

General Information:

• Product Category: Unit Heater
• Fuel Type: Natural Gas
• Vent Type: Separated Combustion
• Installation Type: Suspended

Performance:

• BTU Heating: 120,000
• Maximum BTU Input: 120,000
• Maximum Air Flow: 2049 CFM

Electrical Data:

• Voltage: 115V
• Electrical Phases: 1
• Amperage: 20A

Dimensions:

• Pipe Inside Diameter: 4" and 6"
• Gas Connection Size: 3/4"
• Height: 24-3/4"
• Width: 27"
• Depth: 47-5/8"
• Product Weight: 172 lbs

Product Assurance:

• Certifications: ANSI
• Made in America
• Warranty: 10 Year Heat Exchanger and 5 Year Parts
