Revolv 3.5 Ton Cooling - 90k BTU/Hr Heating - Heat Pump + Gas Furnace System - 14.3 SEER2 - For Downflow Installation

Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. Designed for easy installation in mobile and manufactured housing, these units are specifically designed to fit into tight spaces and operate with minimum combustion clearances. A cost-efficient solution to cooling and heating your home, this kit includes a 14.3 SEER2 heat pump paired with a powerful gas furnace. With their low cost and compact design, Revolv heating and cooling systems are the perfect match for your mobile or manufactured home.

Product Information:

AccuCharge® with FitRight® Fittings
• All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
Corrosion Resistant Finish
• Revolv AccuCharge® heat pumps are made with galvanized steel and a polyester urethane coat, creating a durable and corrosion resistant finish.
Composite Base Pan
• A composite base pan is stronger and lighter than your standard steel base pan. Being composite, it absorbs sound better while remaining corrosion resistant.
ECM Motor
• The MG1E includes a high efficiency ECM blower motor, granting powerful CFM ratings at the fraction of the energy costs of traditional PSC motors.
Economical
• With a robust cabinet designed to fit the standard MH footprint, the MG1E is Revolv's most economical, HUD-compliant gas furnace.
10 Year Limited Warranty
• Register your system on stylecrestinc.com within 60 days of installation to extend the Parts-Only warranty coverage to 10 years.

Component Specifications:

MG1E-090B

General Information:
Fuel Type: Natural Gas
Heater Type: Furnace
Vent Type: Direct Vent
Stage: Single Stage
Blower Motor Type: Multi Speed Electronically Commutated Motor (ECM)
Airflow Orientation: Downflow

Performance:
AFUE Rating 80%
Heating BTU: 90,000
High Fire Input: 90,000
High Fire Output: 68,000

Electrical Data:
Voltage: 120V
Electrical Phases: 1
Frequency: 60 Hz
Breaker Needs: 15 Amps

Dimensions:
Gas Connection Size: 1/2"
Height: 76"
Width: 19-7/8"
Depth: 23-3/4"

Product Assurance:
Certifications: AHRI Reference Number: 204541469
2 Year Manfacturer Warranty

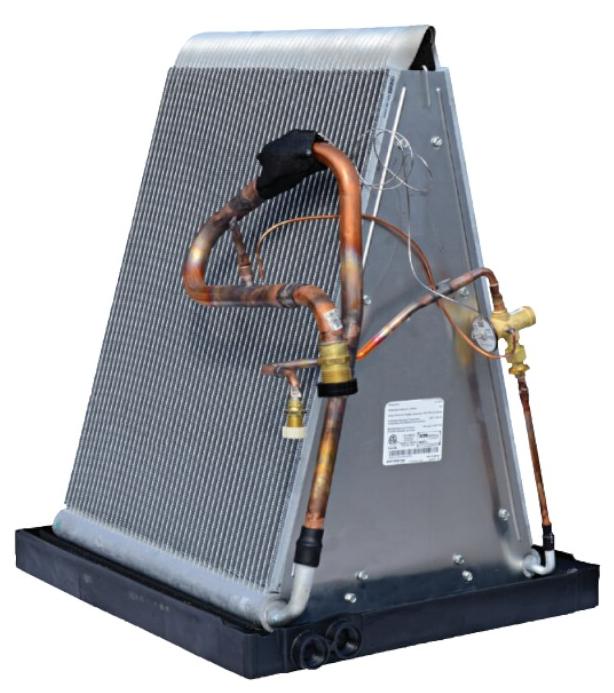

C84QAMX43U-B

Specifications:
BTU Cooling: 42,000
Capacity: 3.5 Tons
Refrigerant Type: R-410A
Electric Heat: No
Height: 25"
Depth: 19-1/2"
Width: 18-1/8"
Suction Line Diameter: 3/8"
Liquid Line Connection Size: 7/8"

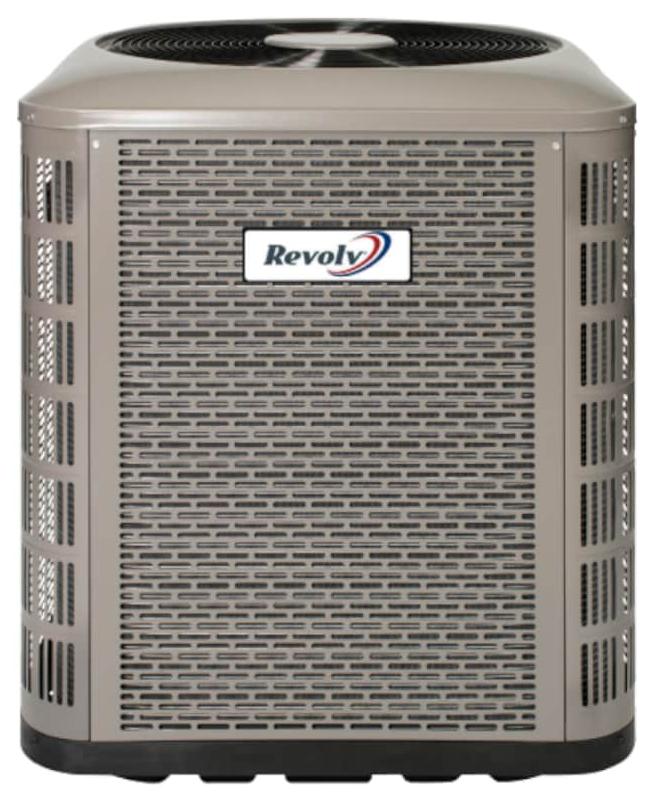

RSH3QE4M1SP42

General Information:
Type: Single-Stage Heat Pump
Operating Mode: Heating and Cooling
Installation Location: Outdoor
Refrigerant Type: R-410A
DOE Regional Compliance: Nationwide

Performance:
Cooling Capacity (Tons): 3.5 Ton
Cooling BTU: 42,000
Cooling BTU Capacity: 39000
Heating BTU Capacity: 41000
Maximum Sound Level: 79 dB
SEER2: 14.3
HSPF: 7.5

Electrical Data:
Voltage: 208, 233V
Electrical Phases: 1
Frequency: 60 Hz
Recommended Breaker Size: 40 A

Dimensions:
Suction Line Diameter: 7/8"
Liquid Line Connection Size: 3/8" Inch
Height: 45-1/4"
Width: 31-3/4"
Depth: 31-3/4"
Shipping Weight: 201 lbs.

Product Assurance:
Certifications:AHRI ETL
Warranty: 5 Year
