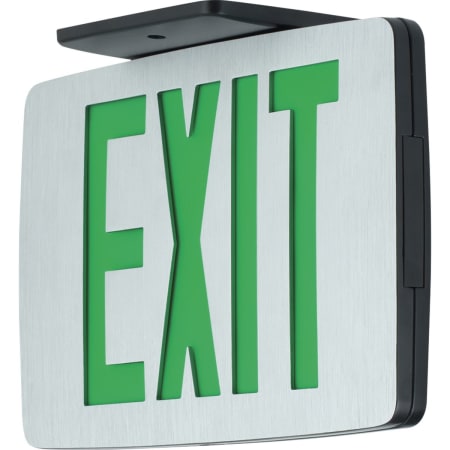

Progress Lighting Double Sided Green LED Exit Sign
Model: PEALE-DG-EM-16|Item: bci2860664
$158.70
Finish: Die-Cast Aluminum -
Special Order
Details
The PEALE Series offers quality and value with a compact and attractive Thin Die-Cast aluminum Exit sign. Exit face illumination by low energy, long-life green ultra bright LED’s. The Exit face-plate is brushed aluminum with black edges and 6” letters with a green diffuser. Double-face models are end or ceiling mounted only. Includes canopy, universal mounting plate and a battery for emergency operation. Test switch and AC-on indicator are located at bottom center. Directional indication made by knock-out chevrons.
Features:
- LED life-cycle of more than 10 years
- Molded-in template for Quick installation
- Includes long-life 2.4 VDC Nickel Cadmium batter for UL recognized 90 minute emergency operation.
- Provided with test switch and AC-On indicator
- Canopy included
- 24 hour re-charge
- UL rated for damp locations
- Made of aluminum
- 2 year full warranty
- 32°F to 122°F operating temperature
- Certifications: UL-924, NFPA-70, NFPA-101, OSHA
Dimensions:
- Height: 7 3/4"
- Depth: 7/8"
- Width: 11 3/5"
Electrical Specifications:
- Bulb Type: LED
- Number of Bulbs: 1
- Voltage: Dual 120V or 277V
- Wattage: 1
Dimensions and Measurements
Height | 7.75 in. |
Width | 11.6 in. |
Dimensions and Measurements
Height | 7.75 in. |
Width | 11.6 in. |
Included Components
Shade | No |
Included Components
Shade | No |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Energy Efficient | Yes |
LED | Yes |
Light Direction | Ambient Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Energy Efficient | Yes |
LED | Yes |
Light Direction | Ambient Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Electrical and Operational Information
Battery Backup | Yes |
Power Source | Battery, Hardwired |
Voltage | 120, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 1 |
Electrical and Operational Information
Battery Backup | Yes |
Power Source | Battery, Hardwired |
Voltage | 120, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 1 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Collection | LED Exit Sign |
Country Of Origin | China |
Location Rating | Damp Location |
Manufacturer Warranty | 2 Year |
Title 20 Compliant | No |
Title 24 | No |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Collection | LED Exit Sign |
Country Of Origin | China |
Location Rating | Damp Location |
Manufacturer Warranty | 2 Year |
Title 20 Compliant | No |
Title 24 | No |
