The Panasonic FV-04VE1 has been discontinued
** See similar or replacement items below **
Item # bci531496
Panasonic WhisperComfort 40 CFM 0.8 Sone Ceiling Mounted Spot Energy Recovery Ventilator with Balanced Ventilation
Model: FV-04VE1|Item: bci531496
from theWhisperComfort Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:

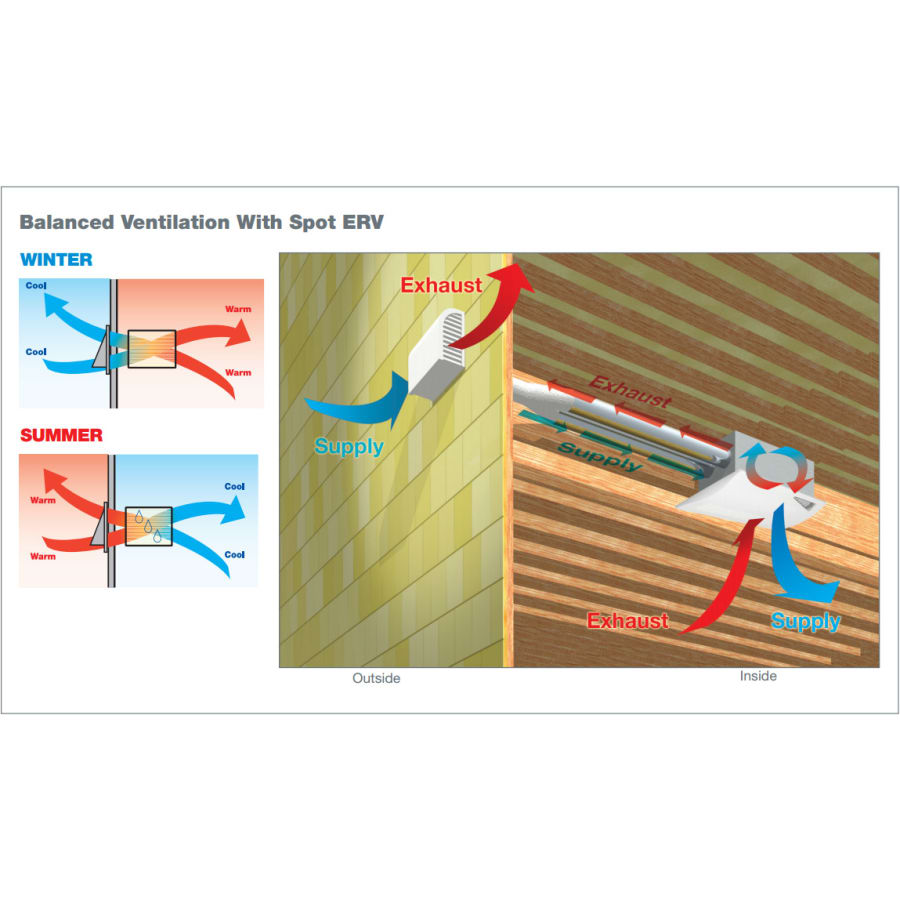

- Characterized by two ducting components, stale air gets exhausted out of one duct, while the other replenishes the fresh air supply from outside.
- Balanced pressure system provides fresh air to replace exhausted musty air.
- Two Sirocco fans driven by a capacitator motor power this Energy Recovery Ventilator.
- Both barometric damper and electric damper prevent backdrafting in Exhaust Air Duct and Outdoor Air Duct.
- Capillary Core recovers energy from humidity, and transfers heat and moisture into incoming cold air in a heating climate, and is capable of working conversely in a cooling climate by reducing the amount of humidity in the incoming air.
- Spot Energy Recovery Ventilator: Ideal for the single rooms like the home office, den, or family room, this spot Energy Recovery Ventilator provides a continuous rate of air exchange. Balanced pressure ventilation allows fresh air to be supplied through one duct, while stale air is promptly exhausted through the other, restoring healthy air to your living environment.
- Patent-Pending Capillary Core:WhisperComfortâ„¢ Fans efficiently transfer heat and moisture to the incoming air supply to regulate humidity levels and temperature for ultimate comfort and cleanliness in your home.
- CFM: 40
- Sones: .8
- Duct Diameter: 2(Two) 4" Ducts
- Grille Width: 20-3/4"
- Grille Length: 16-3/4"
- Housing Width: 19-1/2"
- Housing Length: 14-1/4"
- Weight: 24 lbs.
- Lighting: No
- EnergyStar® Qualified: No
- Blower Wheel Type: 2 (Two) Sirocco
- UL Listed: No
- CA Title 24 Compliant: Yes
Manufacturer Resources
Installation SheetWhisperComfort BrochureSpecification SheetFV-04VE1 Service ManualDimensions and Measurements

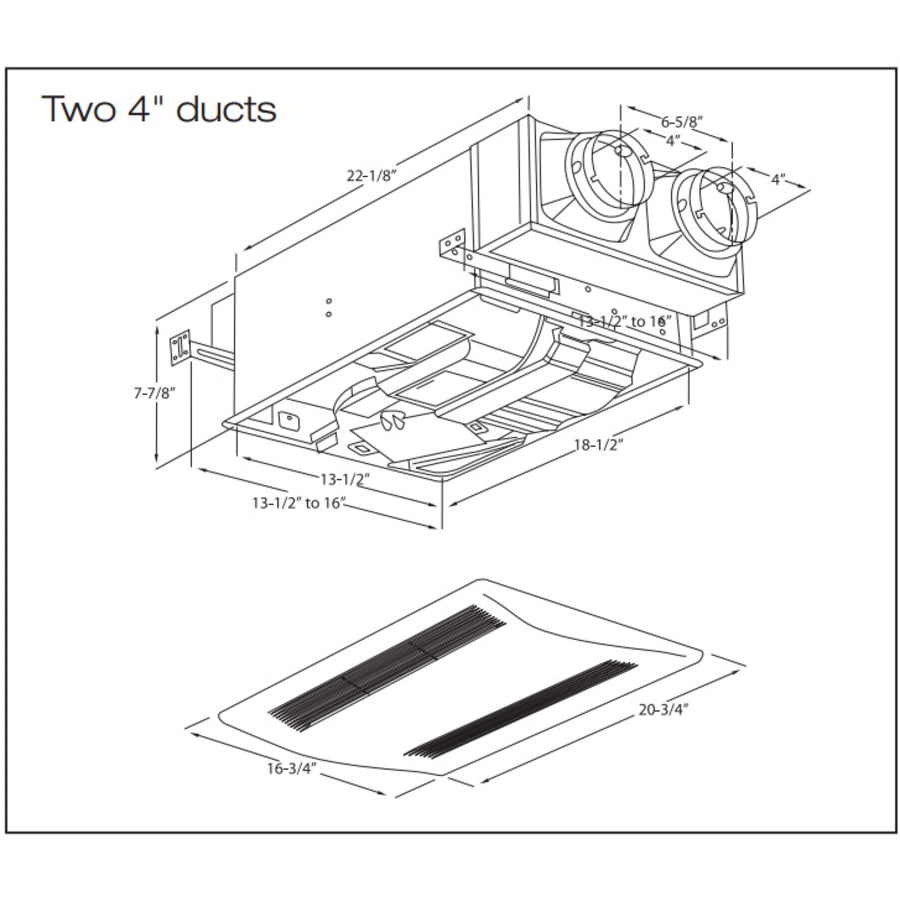

CFM | 40 |
Cutout Height | 19.5 in. |
Duct Size | 4" Round |
Grille Length | 20.75 in. |
Grille Width | 16.75 in. |
Housing Depth | 7.875 in. |
Housing Length | 18.5 in. |
Housing Width | 13.5 in. |
Product Weight | 24 lbs. |
Dimensions and Measurements
CFM | 40 |
Cutout Height | 19.5 in. |
Duct Size | 4" Round |
Grille Length | 20.75 in. |
Grille Width | 16.75 in. |
Housing Depth | 7.875 in. |
Housing Length | 18.5 in. |
Housing Width | 13.5 in. |
Product Weight | 24 lbs. |
Included Components
Heater Included | No |
Includes Remote | No |
Includes Thermostat | No |
Light Included | No |
Motion Sensor | No |
Included Components
Heater Included | No |
Includes Remote | No |
Includes Thermostat | No |
Light Included | No |
Motion Sensor | No |
Characteristics and Features
Grille Finish | White |
Grille Shape | Rectangle |
Housing Shape | Rectangle |
Humidity Sensing | No |
Installation Type | Ceiling |
Material | Galvanized Steel |
Mount Type | Ceiling |
Night Light | No |
Characteristics and Features
Grille Finish | White |
Grille Shape | Rectangle |
Housing Shape | Rectangle |
Humidity Sensing | No |
Installation Type | Ceiling |
Material | Galvanized Steel |
Mount Type | Ceiling |
Night Light | No |
Electrical and Operational Information
Amperage | 0.15 |
Energy Recovery | Yes |
Frequency | 60 Hertz |
Heat Recovery | Yes |
RPM | 1479 |
Sones | 0.8 |
Voltage | 120 |
Wattage | 23 |
Electrical and Operational Information
Amperage | 0.15 |
Energy Recovery | Yes |
Frequency | 60 Hertz |
Heat Recovery | Yes |
RPM | 1479 |
Sones | 0.8 |
Voltage | 120 |
Wattage | 23 |
Warranty and Product Information
Approved for Commercial Use | No, Yes |
Collection | WhisperComfort |
Country Of Origin | Japan |
Energy Star | No |
Manufacturer Warranty | 3 Year Limited |
Series | WhisperComfort |
Title 24 | Yes |
Warranty and Product Information
Approved for Commercial Use | No, Yes |
Collection | WhisperComfort |
Country Of Origin | Japan |
Energy Star | No |
Manufacturer Warranty | 3 Year Limited |
Series | WhisperComfort |
Title 24 | Yes |
