The NuTone 9427P has been discontinued
** See similar or replacement items below **

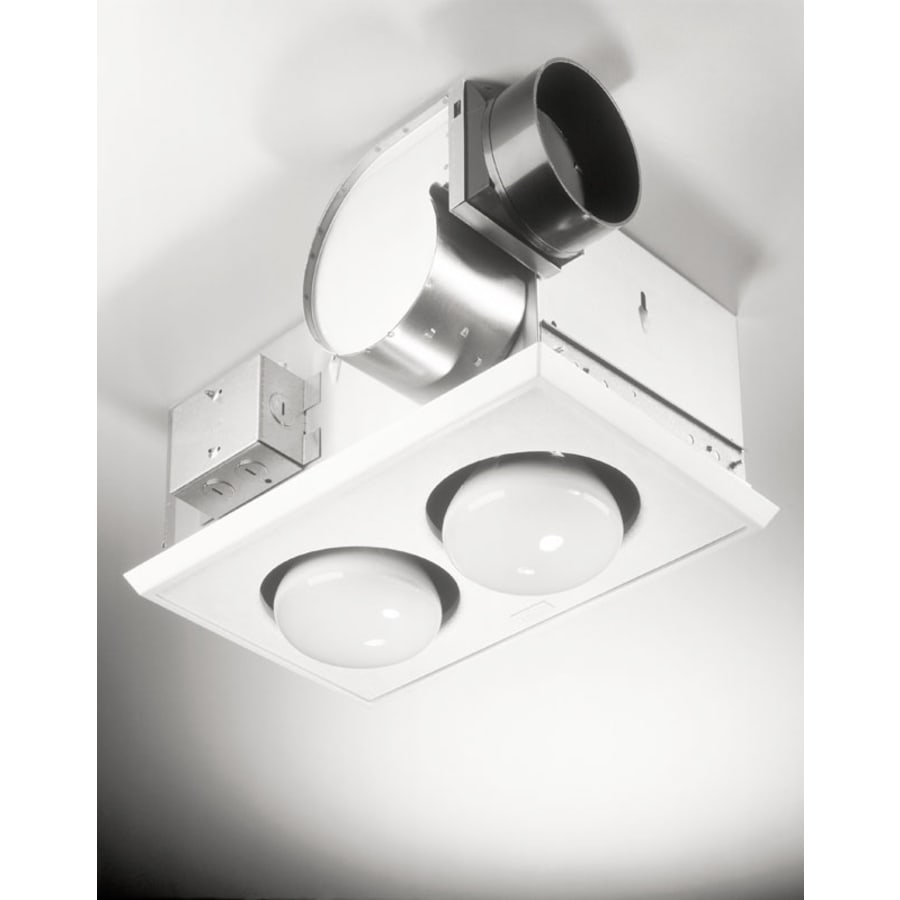

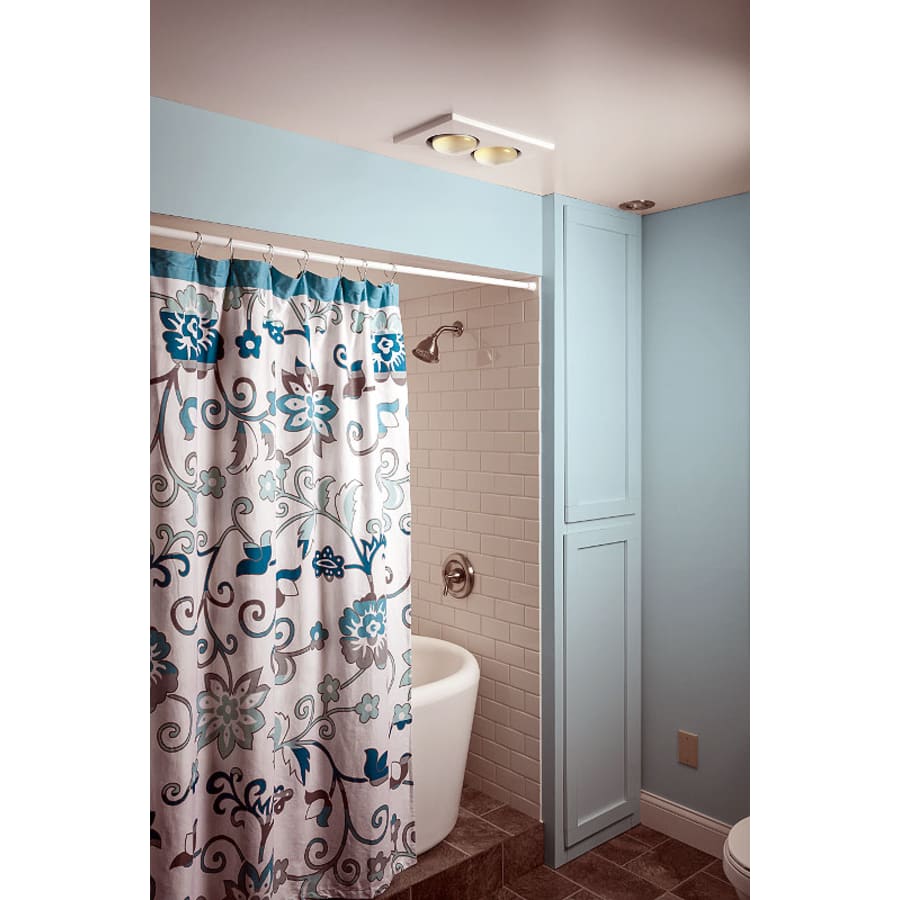

NuTone 70 CFM 3.5 Sone Ceiling Mounted Energy Star Rated and HVI Certified Bath Fan with Light
Model: 9427P|Item: bci430470
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- Features a powerful 70 CFM permanently lubricated and sealed motor that's specifically designed for continuous use applications.
- Includes a 500 Watt high-output heater, keeping your bathroom comfortable and warm, even in the coldest seasons.
- Mounts directly to joists via mounting brackets which makes for an intuitive, straight-forward installation.
- Equipped with 250 watt Infrared lighting and integrated nightlight, ensuring your bathroom is brightly lit without the need for additional fixtures (nightlight bulb sold separately).
- Compatible with a number of Broan multi-function and time control wall switches (sold separately).
- Not recommended for use over bathtubs and showers.
Product Technologies:
Heater Included: Stepping out of your shower or tub into a cold bathroom can be a shocking experience. Keep your bathroom area comfortably temperate with the built-in heater.
High Sones: We know that comfort and ambience matter in your bathroom. This fan produces 3.5 sones of sound output while the fan is in operation.
Low CFM Capacity: This fan has an efficient 70 CFM (cubic feet per minute) of clearing capacity designed for smaller bathrooms. Controlling humidity in your bathroom extends the life of your décor and makes for a more hospitable space to prepare for the day ahead.
Specifications:
- CFM: 70
- Sones: 3.5
- Duct Size: 4 Inch Round
- Grill Width: 15.625 Inches
- Grill Length: 10.25 Inches
- Lighting Type: Infrared (bulbs not included)
- HVI Certified: Yes
- UL Listed: No
- Housing Length: 14-1/4"
- Housing Width: 8-3/8"
- Housing Depth: 6-3/8"
Product Variations:
- 9417DN: Single Heat Bulb, 250 Watts
- 9427P (This Model): Dual Heat Bulbs, 500 Watts
Manufacturer Resources
Installation GuideInstallation ManualSpecification SheetProduct SpecificationsIndoor Air Quality GraphicDimensions and Measurements
CFM | 70 |
CFM (High) | 70 |
Duct Size | 4" Round |
Grille Length | 10.25 in. |
Grille Width | 15.625 in. |
Housing Depth | 6.375 in. |
Housing Length | 14.25 in. |
Housing Width | 8.375 in. |
Max Ventilation Area | 65 sq. ft. |
Product Weight | 7.6 lbs. |
Dimensions and Measurements
CFM | 70 |
CFM (High) | 70 |
Duct Size | 4" Round |
Grille Length | 10.25 in. |
Grille Width | 15.625 in. |
Housing Depth | 6.375 in. |
Housing Length | 14.25 in. |
Housing Width | 8.375 in. |
Max Ventilation Area | 65 sq. ft. |
Product Weight | 7.6 lbs. |
Included Components
Heater Included | Yes |
Light Included | Yes |
Motion Sensor | No |
Included Components
Heater Included | Yes |
Light Included | Yes |
Motion Sensor | No |
Characteristics and Features
Bulb Base | Medium (E26) |
Bulb Type | Infrared |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Function | Bath Fan, Heater |
Grille Finish | Whites |
Humidity Sensing | No |
Material | Plastic |
Mount Type | Ceiling |
Night Light | Yes |
Number of Bulbs | 2 |
Characteristics and Features
Bulb Base | Medium (E26) |
Bulb Type | Infrared |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Function | Bath Fan, Heater |
Grille Finish | Whites |
Humidity Sensing | No |
Material | Plastic |
Mount Type | Ceiling |
Night Light | Yes |
Number of Bulbs | 2 |
Electrical and Operational Information
Amperage | 4.5 |
Sones | 3.5 |
Speeds | 1 |
Voltage | 120 |
Wattage | 545, 500 |
Watts Per Bulb | 250 |
Electrical and Operational Information
Amperage | 4.5 |
Sones | 3.5 |
Speeds | 1 |
Voltage | 120 |
Wattage | 545, 500 |
Watts Per Bulb | 250 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI |
Collection | Economy |
Energy Star | Yes |
Manufacturer Warranty | 1 Year Limited |
Quick Ship | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI |
Collection | Economy |
Energy Star | Yes |
Manufacturer Warranty | 1 Year Limited |
Quick Ship | Yes |
