The NuTone 769RFT has been discontinued
** See similar or replacement items below **

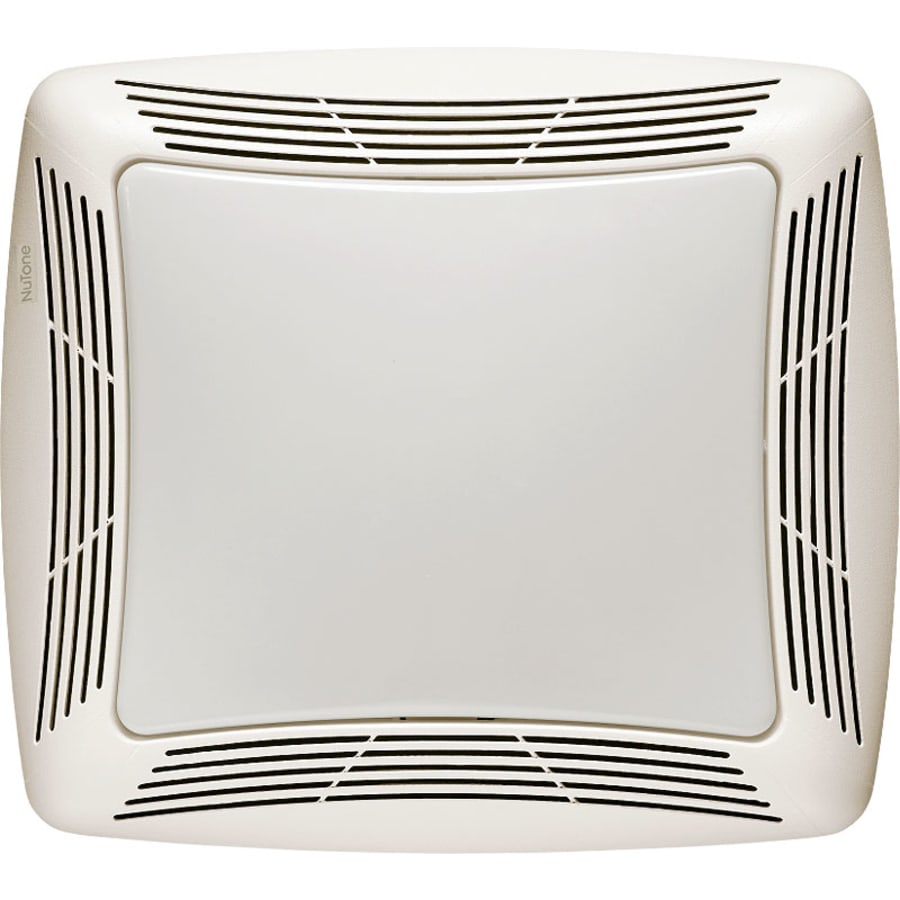

NuTone 70 CFM 3 Sone Ceiling Mounted HVI Certified Bath Fan with Fluorescent Lighting
Model: 769RFT|Item: bci430290
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
- Features a powerful 70 CFM permanently lubricated and sealed motor that's specifically designed for continuous use applications.
- Housing mounts to joists directly or via adjustable mounting brackets for greater installation flexibility.
- Equipped with 13 watt Compact fluorescent lighting and integrated nightlight, ensuring your bathroom is brightly lit without the need for additional fixtures (bulbs sold separately).
- Compatible with a number of Broan multi-function and time control wall switches (sold separately).
- UL listed and suitable for use over bathtubs and showers when connected to a GFCI-protected branch circuit.
Fluorescent Lighting: We know that a comfortable and well-lit space is important to you as your prepare for your day. Illuminate your bathroom with an energy efficient fluorescent bulb.
Mid Sones: We know that comfort and ambience matter in your bathroom. This fan produces 3 sones of sound output, keeping the noise in your bathroom at a reasonable level.
Low CFM Capacity: This fan has an efficient 70 CFM (cubic feet per minute) of clearing capacity designed for smaller bathrooms. Controlling humidity in your bathroom extends the life of your décor and makes for a more hospitable space to prepare for the day ahead.
- CFM: 70
- Sones: 3
- Duct Size: 4 Inch Round
- Grill Width: 12.25 Inches
- Grill Length: 10.75 Inches
- Lighting Type: Compact Fluorescent (bulb not included)
- HVI Certified: Yes
- UL Listed: Yes
- Title 24: Yes
- Housing Length: 9"
- Housing Width: 9"
- Housing Depth: 5-3/4"
- 769RFT (This Model): Fluorescent Lighting
- 769RL: Incandescent Lighting
Manufacturer Resources
Installation GuideInstallation ManualIndoor Air Quality GraphicSpecification SheetProduct SpecificationsDimensions and Measurements
CFM | 70 |
CFM (High) | 70 |
Duct Size | 4" Round |
Grille Length | 10.75 in. |
Grille Width | 12.25 in. |
Housing Depth | 5.75 in. |
Housing Length | 9 in. |
Housing Width | 9 in. |
Max Ventilation Area | 65 sq. ft. |
Product Weight | 6 lbs. |
Dimensions and Measurements
CFM | 70 |
CFM (High) | 70 |
Duct Size | 4" Round |
Grille Length | 10.75 in. |
Grille Width | 12.25 in. |
Housing Depth | 5.75 in. |
Housing Length | 9 in. |
Housing Width | 9 in. |
Max Ventilation Area | 65 sq. ft. |
Product Weight | 6 lbs. |
Included Components
Heater Included | No |
Light Included | Yes |
Motion Sensor | No |
Included Components
Heater Included | No |
Light Included | Yes |
Motion Sensor | No |
Characteristics and Features
Bulb Base | CFL Plugin |
Bulb Type | Compact Fluorescent |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Function | Bath Fan, Light |
Grille Finish | Whites |
Humidity Sensing | No |
Material | Plastic |
Night Light | Yes |
Number of Bulbs | 1 |
Characteristics and Features
Bulb Base | CFL Plugin |
Bulb Type | Compact Fluorescent |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Function | Bath Fan, Light |
Grille Finish | Whites |
Humidity Sensing | No |
Material | Plastic |
Night Light | Yes |
Number of Bulbs | 1 |
Electrical and Operational Information
Amperage | 1.3 |
Sones | 3 |
Speeds | 1 |
Voltage | 115 |
Wattage | 57.3 |
Watts Per Bulb | 13 |
Electrical and Operational Information
Amperage | 1.3 |
Sones | 3 |
Speeds | 1 |
Voltage | 115 |
Wattage | 57.3 |
Watts Per Bulb | 13 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI, UL |
Collection | Decorative |
Energy Star | No |
Manufacturer Warranty | 1 Year Limited |
Title 24 | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI, UL |
Collection | Decorative |
Energy Star | No |
Manufacturer Warranty | 1 Year Limited |
Title 24 | Yes |
