The Moen 8413 has been discontinued
** See similar or replacement items below **
Item # bci108039

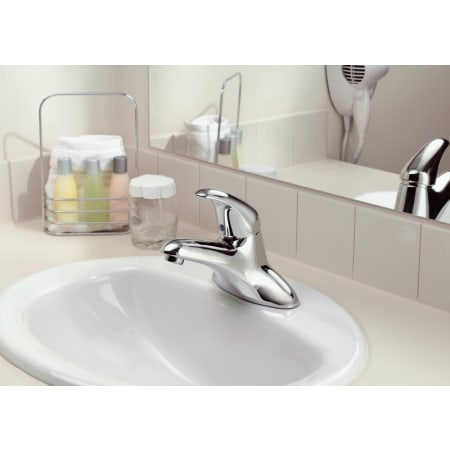

Moen Single Handle Centerset Bathroom Faucet from the M-DURA Collection (Valve Included)
Model: 8413|Item: bci108039
from theM-Dura Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Product Features:
- Faucet body constructed of brass
- Covered under Moen's 5 year limited commercial faucet warranty
- Premier finishing process - finishes will resist corrosion and tarnishing through everyday use
- Durable solid brass waterways
- Standard 3" ADA compliant lever handle
- Single handle operation
- ADA compliant - complies with the standards set forth by the Americans with Disabilities Act for bathroom faucets
- Low lead compliant - meeting federal and state regulations for lead content
- Complete with ceramic disc valve
- Designed for use with standard U.S. plumbing connections
- All hardware needed for mounting is included with faucet
Product Specifications:
- Overall Height: 6-5/8" (measured from counter top to highest part of faucet)
- Spout Height: 2-1/2" (measured from counter top to spout outlet)
- Spout Reach: 5" (measured from center of faucet base to center of spout outlet)
- Number of Faucet Holes Required for Installation: 2
- Faucet Centers (Distance Between Handle Installation Holes): 4"
- Flow Rate: 2.2 GPM (gallons-per-minute)
- Maximum Deck Thickness: 1-1/8"
- 1 handle included with faucet
- Valve Type: Ceramic disc
Variations:
- 8413: This model
- 8414: This model with pop-up drain
- 8413F03: This model with 0.35 GPM flow rate
- 8413F05: This model with 0.5 GPM flow rate
- 8416: This model with 6" handle
Dimensions and Measurements
Faucet Centers | 4 in. |
Faucet Hole Size | 1 in. |
Flow Rate (GPM) | 2.2 |
Handle Height | 6.625 in. |
Height | 6.625 in. |
Max Deck Thickness | 1.125 in. |
Spout Height | 2.5 in. |
Spout Reach | 5 in. |
Water Connection | 1/2" |
Width | 6 in. |
Dimensions and Measurements
Faucet Centers | 4 in. |
Faucet Hole Size | 1 in. |
Flow Rate (GPM) | 2.2 |
Handle Height | 6.625 in. |
Height | 6.625 in. |
Max Deck Thickness | 1.125 in. |
Spout Height | 2.5 in. |
Spout Reach | 5 in. |
Water Connection | 1/2" |
Width | 6 in. |
Included Components
Drain Assembly Included | No |
Handles Included | Yes |
Pop-Up Included | No |
Soap Dispenser Included | No |
Valve Included | Yes |
Included Components
Drain Assembly Included | No |
Handles Included | Yes |
Pop-Up Included | No |
Soap Dispenser Included | No |
Valve Included | Yes |
Characteristics and Features
Faucet Holes | 2 |
Faucet Type | Bathroom Sink Faucet |
Handle Material | Metal |
Handle Style | Lever |
Installation Type | Deck Mounted |
Material | Brass |
Mounting Type | Centerset |
Number Of Handles | 1 |
Spout Style | Conventional |
Spout Type | Fixed |
Theme | Basic |
Valve Type | Ceramic Disc |
Vandal Resistant | Yes |
Characteristics and Features
Faucet Holes | 2 |
Faucet Type | Bathroom Sink Faucet |
Handle Material | Metal |
Handle Style | Lever |
Installation Type | Deck Mounted |
Material | Brass |
Mounting Type | Centerset |
Number Of Handles | 1 |
Spout Style | Conventional |
Spout Type | Fixed |
Theme | Basic |
Valve Type | Ceramic Disc |
Vandal Resistant | Yes |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.18.1 |
CA Drought Compliant | No |
Certifications | ASME, CSA, NSF |
Collection | M-Dura |
Country Of Origin | USA |
CSA Code | B125.1 |
Eco Friendly | No |
Low Lead Compliant | Yes |
Manufacturer Warranty | 5 Year Limited |
WaterSense Certified | No |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.18.1 |
CA Drought Compliant | No |
Certifications | ASME, CSA, NSF |
Collection | M-Dura |
Country Of Origin | USA |
CSA Code | B125.1 |
Eco Friendly | No |
Low Lead Compliant | Yes |
Manufacturer Warranty | 5 Year Limited |
WaterSense Certified | No |
