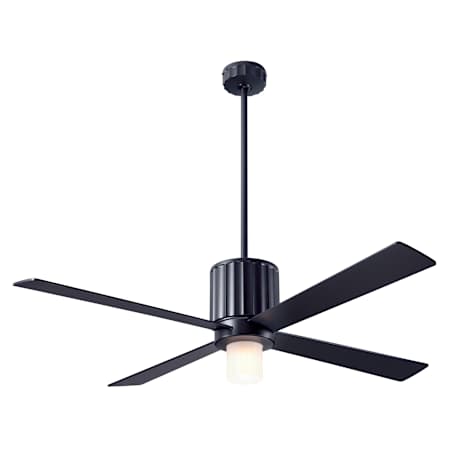

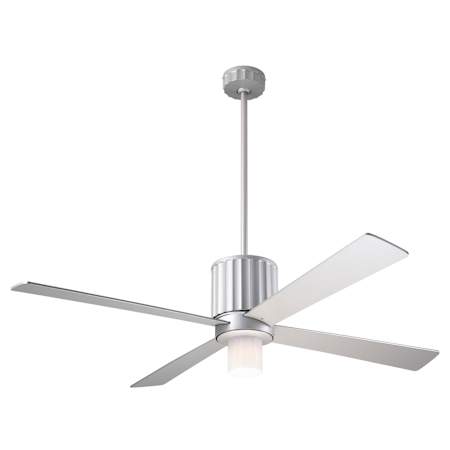

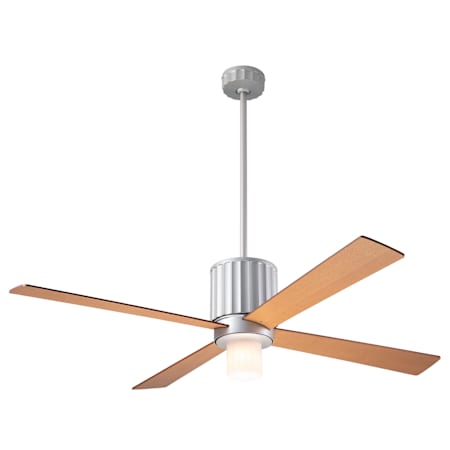

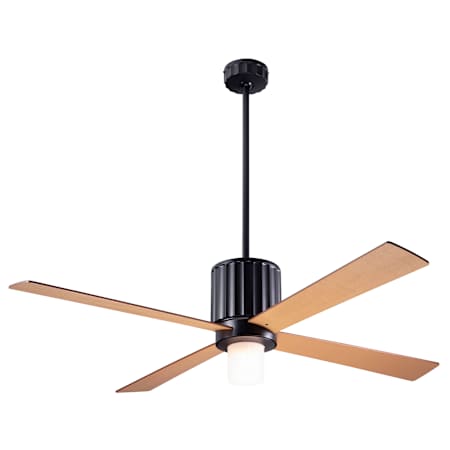

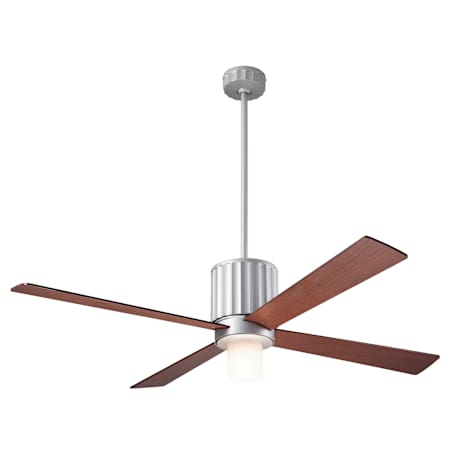

Modern Fan Co. Flute 52" 4 Blade Ceiling Fan with Custom Blade, Light Kit, and Control Options

Features:

• Die cast aluminum fan body
• Blades constructed of plywood
• Includes (1) 3.5" and (1) 12" downrod
• Suitable for damp location

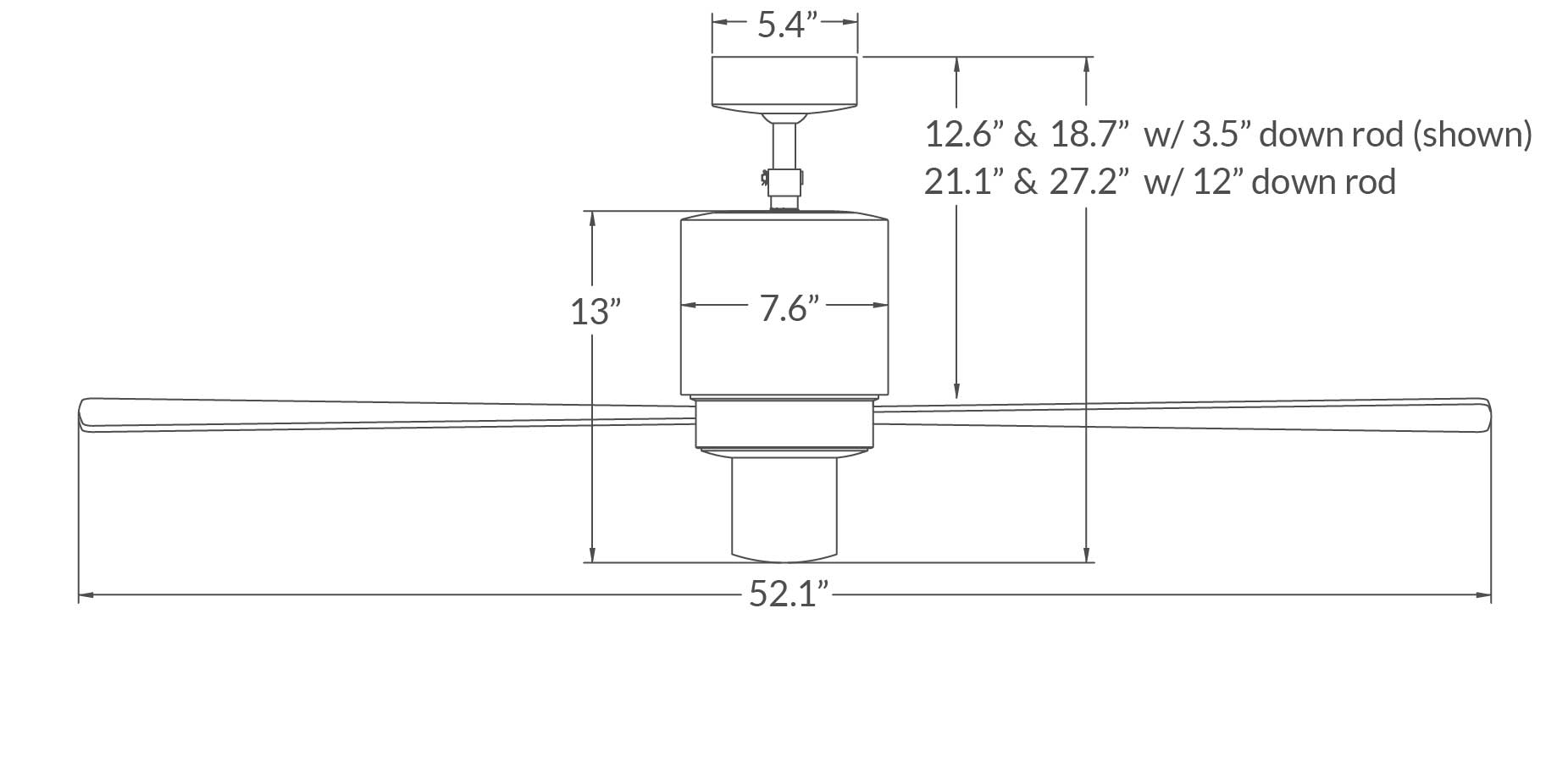

Dimensions:

• Height: 18-11/16"
• Width: 52"
• Canopy Width: 5-3/8"

Blade Options:

It is important to choose a fan size suitable for your needs and the size of your room. For optimum airflow, a fan with a 52" blade span is recommended for rooms between 350 square feet.

• 52" Blade Span
  • Airflow: 5615.3 CFM at high speed
  • Electricity Use: 63.3 Watts (excludes lights)
  • Airflow Efficiency: 88.71 Cubic Feet per Minute per Watt

Light Kit Options:

• 752
  • Bulb Base/Type: Medium (E26) LED - dimmable
  • Power Output: 17.5 Watts
  • Light Output: 1600 Lumens - equivalent to a 100w incandescent

Control Options:

• FC-002 Fan & Light Control−3 Wire -For a single AC fan with LED light, providing four speeds and dimming function. Requires three wires from switch location to fan. Note: Not compatible with remote control
• FC-003-LED Handheld Remote RF Control -Designed for independent operation a single AC fan or AC fan with LED light, providing three speeds and full range dimming (or “on/off” switching), using only one circuit (two wires). Includes RF handset, battery, canopy receiver and comes with a wall-mountable bracket for handset.
• FC-004-LED Fan & Light RF Control−2 Wire -Designed for independent operation of a single AC fan or AC fan with LED light, providing three speeds and full range dimming (or “on/off” switching), using only one circuit (two wires). Includes RF wall control (with master power switch), switch plate and canopy receiver.
• FC-005-LED Wall/Remote Combo RF Control−2 Wire -Designed for independent operation of a single AC fan or AC fan with LED light, providing three speeds and full range dimming (or “on/ off” switching), using only one circuit (two wires). Includes RF handset (with battery), RF wall control (with master power switch), switch plate and canopy receiver.

Motor Specifications:

• Motor Size: 172mm x 14mm
• Speeds: 3 or4 (depending on control option)
• Motor: AC Induction

Suggested Downrod Lengths:

• 9 Foot Ceiling: 6" - 12"
• 10 Foot Ceiling: 12" - 18"
• 11 Foot Ceiling: 18" - 24"
• 12 Foot Ceiling: 24" - 36"
• 13 Foot Ceiling: 36" - 48"
• 14 Foot Ceiling: 48" - 60"
• 15 Foot Ceiling: 60" - 72"
