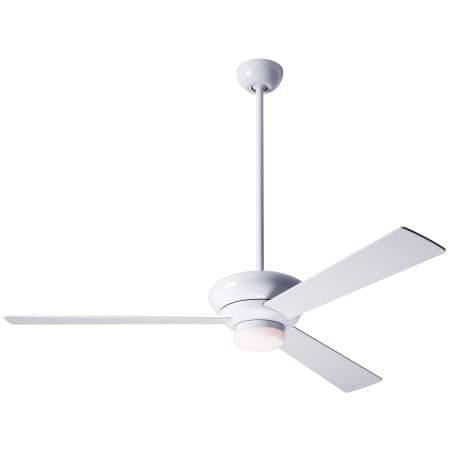

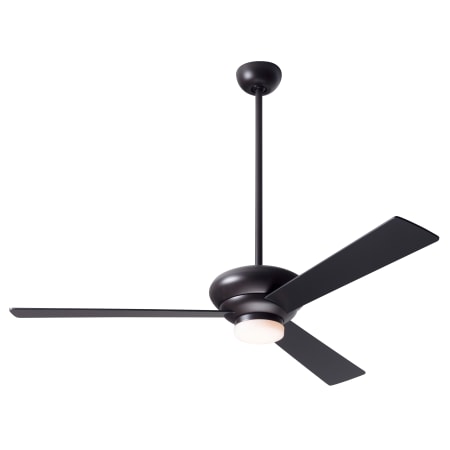

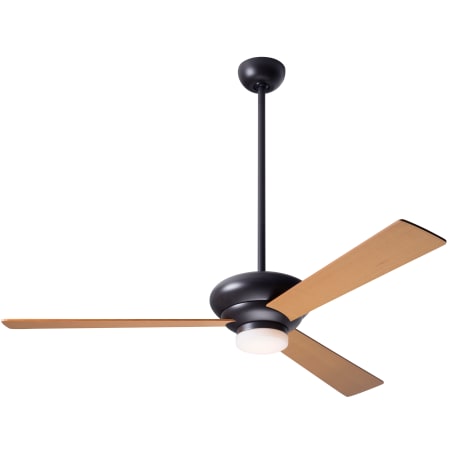

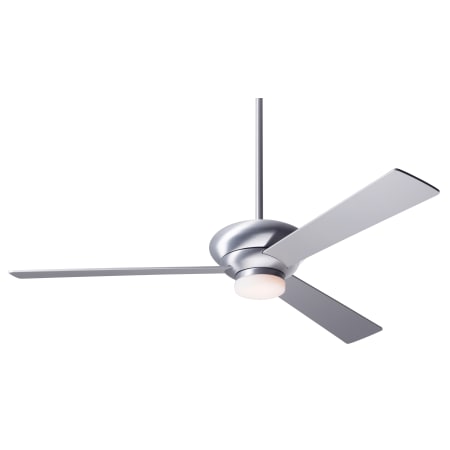

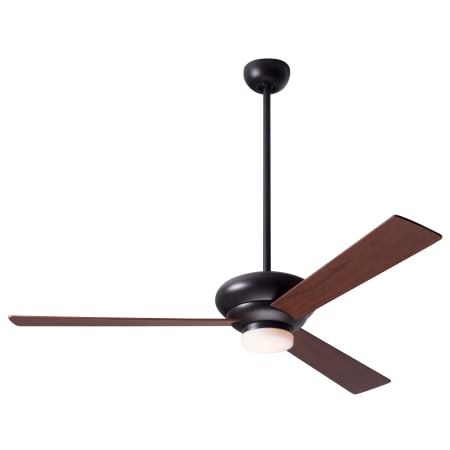

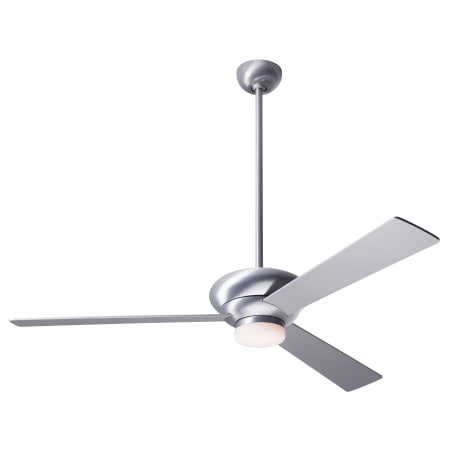

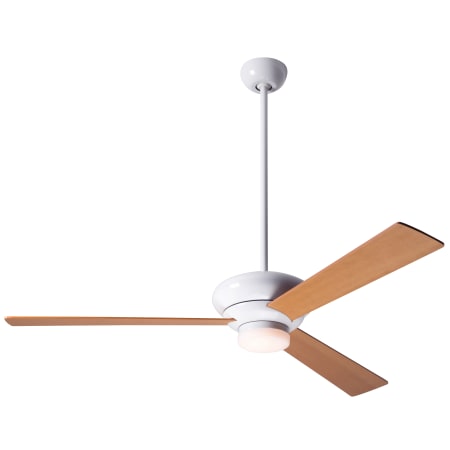

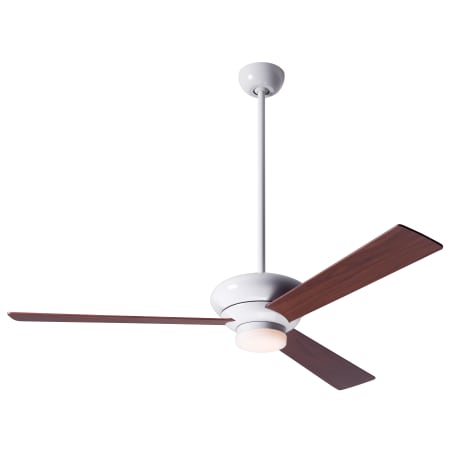

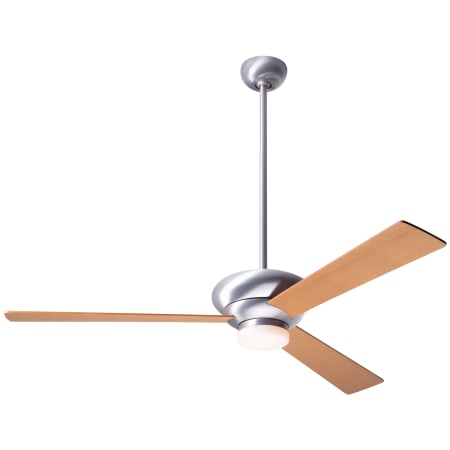

Modern Fan Co. Altus 42" 3 Blade Outdoor Ceiling Fan with Custom Blade, Light Kit, and Control Options

Features:

• Die cast and spun aluminum fan body
• Blades constructed of plywood
• Includes: Opal glass diffuser
• Includes: Reverse switch on body
• Includes: (1) 4.5" and (1) 16" downrod
• Slope compatible to 33°, adapter available for slopes up to 45°
• ETL Rated for damp location

Dimensions:

• Height:
  • with 4.5" down rod: 11-11/16"
  • with 16" down rod: 23-1/4"
• Width: 42"
• Canopy Width: 5-3/8"

Blade Options:

• 42" Blade Span
  • Airflow: 5078.06 CFM at high speed
  • Electricity Use: 62 Watts (excludes lights)
  • Airflow Efficiency: 81.9 Cubic Feet per Minute per Watt

Light Kit Options:

• 271
  • Bulb Base/Type: Integrated LED - dimmable
  • Power Output: 17 Watts
  • Light Output: 1100 Lumens - equivalent to a 90w incandescent

Control Options:

• FC-002 Fan & Light Control−3 Wire -For a single AC fan with LED light, providing four speeds and dimming function. Requires three wires from switch location to fan. Note: Not compatible with remote control
• FC-003-LED Handheld Remote RF Control -Designed for independent operation a single AC fan or AC fan with LED light, providing three speeds and full range dimming (or “on/off” switching), using only one circuit (two wires). Includes RF handset, battery, canopy receiver and comes with a wall-mountable bracket for handset.
• FC-004-LED Fan & Light RF Control−2 Wire -Designed for independent operation of a single AC fan or AC fan with LED light, providing three speeds and full range dimming (or “on/off” switching), using only one circuit (two wires). Includes RF wall control (with master power switch), switch plate and canopy receiver.
• FC-005-LED Wall/Remote Combo RF Control−2 Wire -Designed for independent operation of a single AC fan or AC fan with LED light, providing three speeds and full range dimming (or “on/ off” switching), using only one circuit (two wires). Includes RF handset (with battery), RF wall control (with master power switch), switch plate and canopy receiver.

Motor Specifications:

• Motor Size: 153mm x 18mm
• Speeds: 3 or4 (depending on control option)
• Motor: AC Induction

Suggested Downrod Lengths:

• 9 Foot Ceiling: 6" - 12"
• 10 Foot Ceiling: 12" - 18"
• 11 Foot Ceiling: 18" - 24"
• 12 Foot Ceiling: 24" - 36"
• 13 Foot Ceiling: 36" - 48"
• 14 Foot Ceiling: 48" - 60"
• 15 Foot Ceiling: 60" - 72"

Optional Accessories:

• Down Rods: 12", 24", 36", 48", 60", 72" (DRD)
• Down Rod Coupler: (CPL)
• Sloped Ceiling Adapter: (045)
