Mitsubishi 23.6K BTU Cooling / 36K BTU Heating 18, 19 SEER Three Zone Concealed Duct Mini Split Package with (3) 9k BTU Indoor Units

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a three-zone mini split system designed to give you individual control over the temperature in multiple rooms while taking advantage of existing ductwork. An efficient MXZ-3C30NAHZ3 outdoor condenser, built with advanced technology, is combined with unobtrusive concealed duct SEZ-KD indoor units for the perfect marriage of convenience and comfort. With the concealed duct units, small air registers are the only evidence that a powerful and efficient mini split system is servicing your rooms. An MXZ multi-room system is an excellent choice for supplementing capacity to a current system, conditioning newly furnished spaces, or new additions and replacing a system within a home. With multiple operating modes and multiple fan speeds, this is a system that fits the needs of nearly any home.

Features:

• Precision Temperature Control Technology: The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.

• Hot-Start: Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.

• Dehumidification: When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves your comfort and reduces both mold growth and the chance of property damage in the conditioned space.

• Condensate Removal System: The SEZ-KD contains an internal drain mechanism capable of lifting condensate 21-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.

• H2i Technology: H2i hyper heat performance offers 100% heating capacity at 5 degrees and 88% heating capacity at -13 degrees Fahrenheit.

• Integrated Base Pan Heater: Factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.

Product Assurance:

• Certifications: ETL
• Performance and Efficiency:
  • SEER: 19
  • HSPF: 10
  • EER: 13.5
• Manufacturer Warranty: 5 Year Parts, 90 Day Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Branch Box: The branch box connects to the condenser and allows for multiple refrigerant lines to be connected to your indoor evaporators
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Specifications:

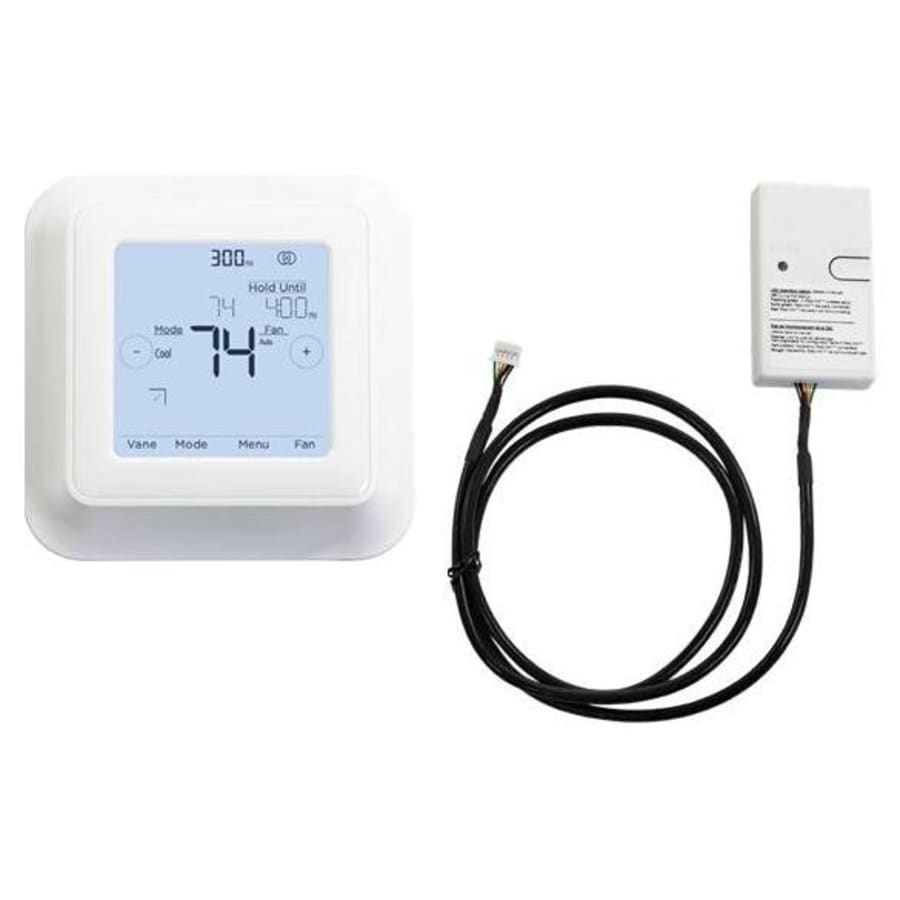

MHK2 (x3)

• Width: 4-1/16"
• Length: 4-1/16"
• Depth: 1-1/16"

MAC-A455JP-E

• Product Weight: 0.5 lbs.

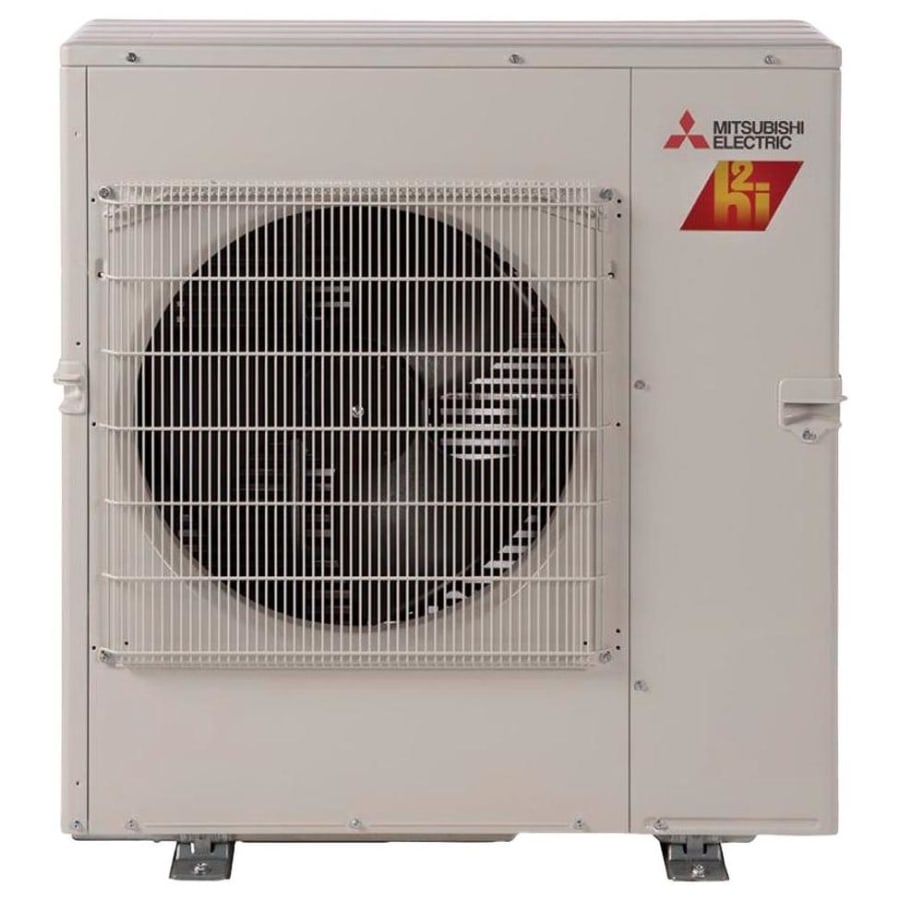

MXZ-3C30NAHZ3

• Cooling BTU Capacity: 23600
• Heating BTU Capacity: 36000
• Zone Capacity: 3
• Sound Level: 58 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Depth: 13"
• Recommended Breaker Size: 40 A
• Amperage: 29.9 A
• Voltage: 208, 230V

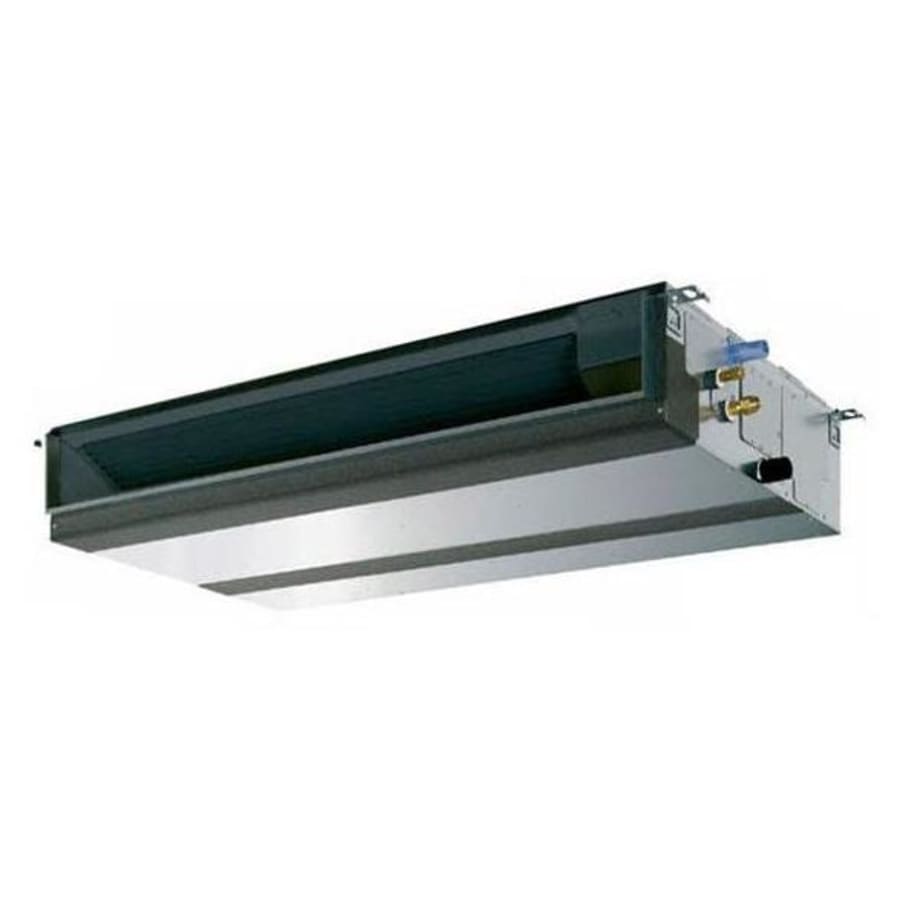

SEZ-KD09NA4R1.TH (x3)

• Zone Cooling BTU: 9000
• Zone Heating BTU: 10900
• Cooling Area: 350 Sq. Ft.
• Sound Level: 23 to 30 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 27-9/16"
• Height: 7-7/8"
• Width: 31-1/8"
• Voltage: 208, 230V
