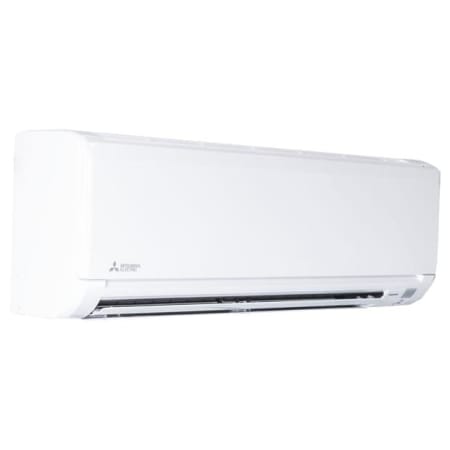

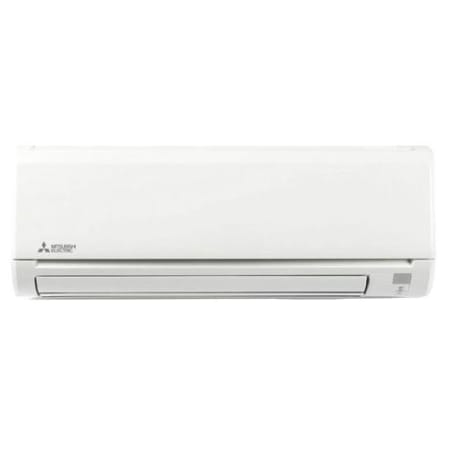

Mitsubishi M Series 12,000 BTU Cooling (208 / 230V) Mini Split Wall Mount Indoor Unit

Model: MSZ-HM12NA-U1
|
Item: bci4649545

from theM Collection
$571.50
55 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 2 to 5 business days
-
Return & Shipping Details

Details

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Indoor evaporator unit only, outdoor condenser required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Will not function without associated outdoor unit

Specifications:

  • Zone Cooling BTU: 12000
  • Sound Level: 22 to 45 dB
  • Liquid Line Connection Size: 1/4" Inch
  • Gas Line Connection Size: 3/8" Inch
  • Depth: 9-1/8"
  • Height: 11-5/8"
  • Width: 31-7/16"
  • Voltage: 208, 230V

Product Assurance:

  • Certifications:
    • AHRI
    • ETL
  • Manufacturer Warranty: 5 Year Parts

Required Components:

  • Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
  • Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
  • Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser

Manufacturer Resources

Specification SheetOwner's Manual

Dimensions and Measurements

CFM
399, 170
Depth (Indoor Unit)
9.125 in.
Gas Connection
3/8"
Height (Indoor Unit)
11.625 in.
Liquid Line Connection Size
1/4"
Moisture Removal (Pints per Hour)
2.5
Product Weight
22 lbs.
Width (Indoor Unit)
31.438 in.

Dimensions and Measurements

CFM
399, 170
Depth (Indoor Unit)
9.125 in.
Gas Connection
3/8"
Height (Indoor Unit)
11.625 in.
Liquid Line Connection Size
1/4"
Moisture Removal (Pints per Hour)
2.5
Product Weight
22 lbs.
Width (Indoor Unit)
31.438 in.

Included Components

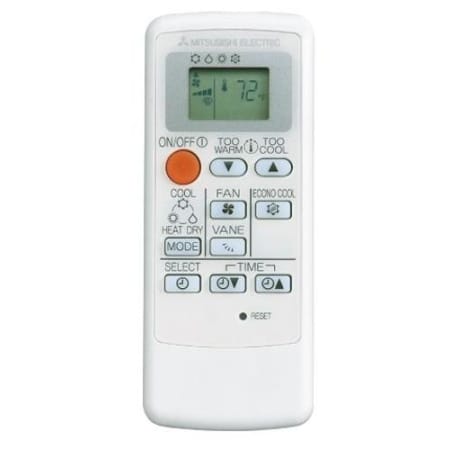

Includes Remote
Yes

Included Components

Includes Remote
Yes

Characteristics and Features

Control Type
Remote
Indoor Unit Type
Wall Mount
Installation Type
Mini Split
Refrigerant
R-410A

Characteristics and Features

Control Type
Remote
Indoor Unit Type
Wall Mount
Installation Type
Mini Split
Refrigerant
R-410A

Electrical and Operational Information

dBA (High)
45
dBA (Low)
22
Electrical Phases
1
Frequency
60 Hertz
Power Source
Hardwired
Voltage
208, 230
Zone Cooling BTU
12000

Electrical and Operational Information

dBA (High)
45
dBA (Low)
22
Electrical Phases
1
Frequency
60 Hertz
Power Source
Hardwired
Voltage
208, 230
Zone Cooling BTU
12000

Warranty and Product Information

Certifications
AHRI, ETL
Manufacturer Warranty
5 Year Parts

Warranty and Product Information

Certifications
AHRI, ETL
Manufacturer Warranty
5 Year Parts
