Lockey Right Handed Flush Fit Electronic Keypad Cabinet Lock from the EC Series

Features:

• Intended for use with lockers, cabinets, and cupboards
• Programmable 4 digit user code, 8 digit master code, and 6 digit sub-master/technician code
• Operates for up to 80,000 cycles on a pair of AA batteries (batteries included)
• LED light provides warning when batteries are low
• Includes a Schlage C keyway, select keying options above
• Can only be keyed alike to other Lockey locks ordered at the same time
• Includes programmable auto unlock option
• Covered under a 3 Year Limited Warranty

Product Technologies:

• Public or Private Mode: Public mode allows each user to set a unique code that expires after each use. Alternately, private mode retains the same code over time until manually reprogrammed.

• Flush Fit: Cabinet lock is mortised into the surface of the cabinet, giving it a sleek and finished look.

Specifications:

• Height: 5-5/8" (143.5 mm)
• Width: 1-5/8" (41 mm)
• Projection: 1/2" (11.5 mm)
• Handing: Right
• Direction: Horizontal
• Keyway: Schlage C

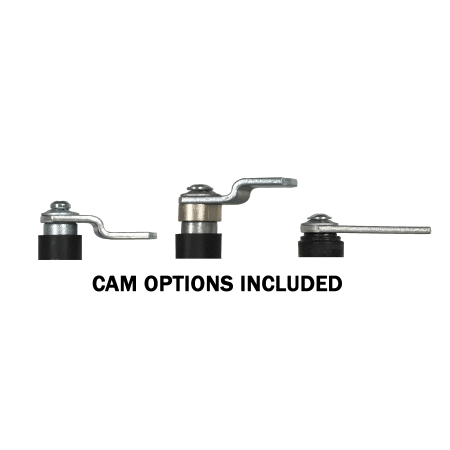

• Cam Capability: 1/4" to 1-1/2"
• Material: Zinc

• EC784V: Vertical Flush Fit Keypad
• EC784L: Left Handed Flush Fit Keypad
• EC784R (This Model): Right Handed Flush Fit Keypad
