The Lithonia Lighting WF4 SQ B LED 30K BN M6 has been discontinued
** See similar or replacement items below **
Item # bci3250955

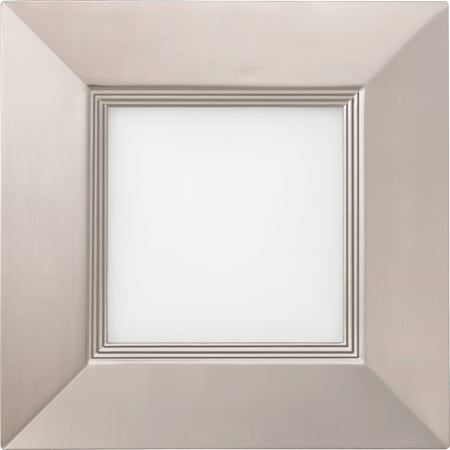

Lithonia Lighting Wafer 4" LED IC Rated Baffle Trim Integrated Recessed Fixture with 3000K Color Temperature
Model: WF4 SQ B LED 30K BN M6|Item: bci3250955
from theWafer Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features
- Includes a steel spring clip for easy installation
- Air tight housing prevents entrance of dust and moisture
- Capable of being installed in t-grid and drop ceiling applications
- Designed for commercial or residential use
- Insulated ceiling rated and airtight
- Constructed from die cast aluminum

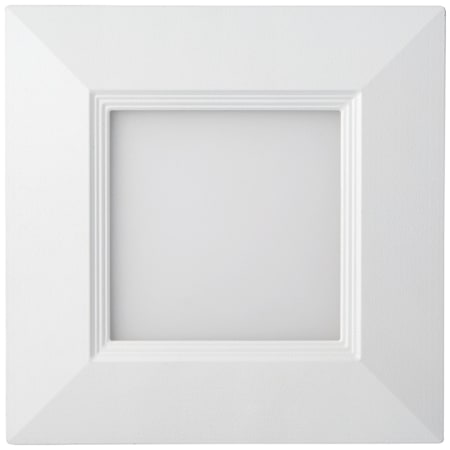

- Includes white square diffuser
- Integrated 10.3 watt LED lighting
- Capable of being dimmed
- CSA rated for wet locations
- Energy Star approved
- Covered under a manufacturer 5 year limited warranty
Dimensions
- Trim Size: 4"
- Height: 1-3/16"
- Width: 4-11/16"
- Depth: 4-11/16"
- Product Weight: 1.6 lbs
- Shade Width: 2-7/8"
- Shade Depth: 2-7/8"
- Cutout Size: 4-1/8 Inches
Electrical Specifications
- Bulb Base: Integrated LED
- Number of Bulbs: 1
- Bulb Included: Yes
- Lumens: 620
- Watts Per Bulb: 10.3 watts
- Wattage: 10.3 watts
- Voltage: 120 volts

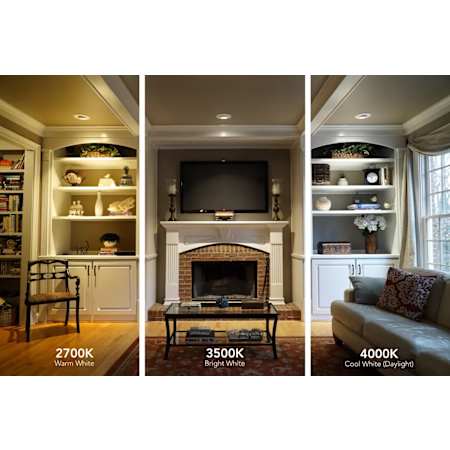

- Color Temperature: 3000K
- Color Rendering Index: 80CRI
- Average Hours: 36000
Manufacturer Resources
Specification SheetDimensions and Measurements
Cutout Size | 4.1 in. |
Depth | 4.7 in. |
Height | 1.2 in. |
Product Weight | 1.6 lbs. |
Shade Depth | 2.89 in. |
Shade Width | 2.89 in. |
Trim Size | 4 in. |
Width | 4.7 in. |
Dimensions and Measurements
Cutout Size | 4.1 in. |
Depth | 4.7 in. |
Height | 1.2 in. |
Product Weight | 1.6 lbs. |
Shade Depth | 2.89 in. |
Shade Width | 2.89 in. |
Trim Size | 4 in. |
Width | 4.7 in. |
Included Components
Bulb Included | Yes |
Shade | Yes |
Included Components
Bulb Included | Yes |
Shade | Yes |
Characteristics and Features
Airtight | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K |
Dimmable | Yes |
Energy Efficient | Yes |
Fixture Shape | Square |
Housing Type | New Construction Housing, Remodel Housing |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Retrofit | No |
Shade Color | White |
Shade Material | Synthetic |
Shade Shape | Square |
Shallow Ceiling Compatible | Yes |
Theme | Contemporary |
Trim Style | Baffle Trims, Square Trims |
Characteristics and Features
Airtight | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K |
Dimmable | Yes |
Energy Efficient | Yes |
Fixture Shape | Square |
Housing Type | New Construction Housing, Remodel Housing |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Retrofit | No |
Shade Color | White |
Shade Material | Synthetic |
Shade Shape | Square |
Shallow Ceiling Compatible | Yes |
Theme | Contemporary |
Trim Style | Baffle Trims, Square Trims |
Electrical and Operational Information
Average Hours | 36000 Hours |
Color Rendering Index (CRI) | 80 |
Lumens | 620 |
Power Source | Hardwired |
Voltage | 120 |
Wattage | 10.3 |
Watts Per Bulb | 10.3 |
Electrical and Operational Information
Average Hours | 36000 Hours |
Color Rendering Index (CRI) | 80 |
Lumens | 620 |
Power Source | Hardwired |
Voltage | 120 |
Wattage | 10.3 |
Watts Per Bulb | 10.3 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Collection | Wafer |
Country Of Origin | China |
Energy Star | Yes |
IC Rating | IC |
Location Rating | Wet Location |
Manufacturer Warranty | 5 Year Limited |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Collection | Wafer |
Country Of Origin | China |
Energy Star | Yes |
IC Rating | IC |
Location Rating | Wet Location |
Manufacturer Warranty | 5 Year Limited |
