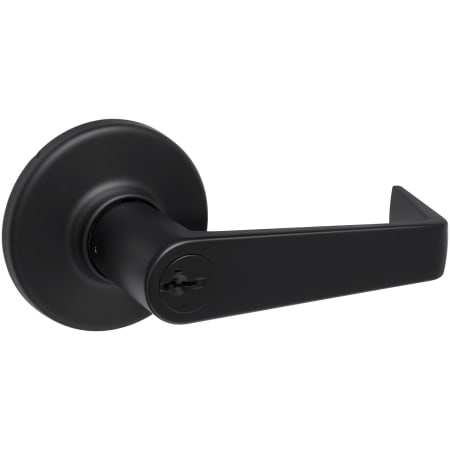

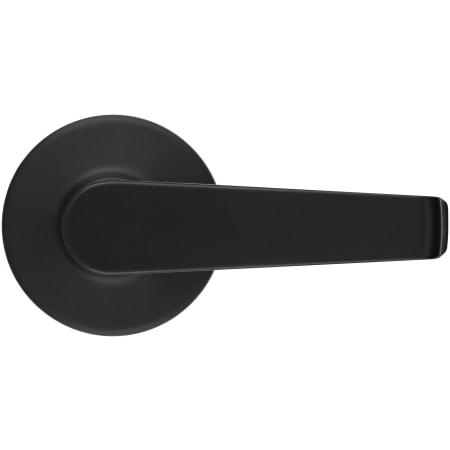

Kwikset Kingston Keyed Entry Storeroom Door Lever Set with Round Rose and SmartKey from the Light Commercial Collection
Model: 781KNL-514S|Item: bci4886379
from theKingston Collection
$59.88
Finish: Matte Black -
Special Order
Finish: Matte Black -
Special Order
Matte Black
Details
Storeroom: Storeroom door hardware feature an outside handle that is always locked while the inside handle is always unlocked and free turning. Entry from exterior is only possible via key.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security requirements
- Constructed of high quality materials for durability and dependability
- Installs easily with all necessary mounting hardware included
- Covered by Kwikset's limited lifetime manufacturer warranty
SmartKey®:
- This re-key technology allows you to re-key your lock in seconds. It also features stainless steel racks, pins, and side locking bar for increased strength and security.
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Reversible Left or Right
- Handle Length: 3-13/16"
- Handle Projection: 2-3/8"
- Trim Width: 2-9/16"
- Trim Height: 2-9/16"
- Product Weight: 2.113 lbs.
- Latch Faceplate: Round Corner
- Cylinder: SmartKey 5 Pin KW1
Manufacturer Resources
User CareDimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Handle Length | 3.84 in. |
Handle Projection | 2.4 in. |
Product Weight | 2.113 lbs. |
Trim Height | 2.56 in. |
Trim Width | 2.56 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Handle Length | 3.84 in. |
Handle Projection | 2.4 in. |
Product Weight | 2.113 lbs. |
Trim Height | 2.56 in. |
Trim Width | 2.56 in. |
Included Components
Cylinder Included | Yes |
Included Components
Cylinder Included | Yes |
Characteristics and Features
Cylinder | SmartKey 5 Pin |
Cylinder Type | Single Cylinder |
Function | Storeroom |
Handing | Left, Reversible, Right |
Handle Design | Kingston |
Handle Material | Metal |
Handle Style | Lever |
Keyway | KW1 |
Latch Faceplate | Round Corner |
Lever Shape | Flat, Straight |
Material | Zinc |
Rosette Shape | Round |
Theme | Contemporary |
Characteristics and Features
Cylinder | SmartKey 5 Pin |
Cylinder Type | Single Cylinder |
Function | Storeroom |
Handing | Left, Reversible, Right |
Handle Design | Kingston |
Handle Material | Metal |
Handle Style | Lever |
Keyway | KW1 |
Latch Faceplate | Round Corner |
Lever Shape | Flat, Straight |
Material | Zinc |
Rosette Shape | Round |
Theme | Contemporary |
Manufacturer Technology
SmartKey | Yes |
Manufacturer Technology
SmartKey | Yes |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 2 |
Certifications | BHMA |
Collection | Light Commercial |
Country Of Origin | Philippines |
Fire Rated | No |
Manufacturer Warranty | Limited Lifetime |
Series | Kingston |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 2 |
Certifications | BHMA |
Collection | Light Commercial |
Country Of Origin | Philippines |
Fire Rated | No |
Manufacturer Warranty | Limited Lifetime |
Series | Kingston |
