Kohler Vault 33" Double Basin Top-Mount/Under-Mount 18-Gauge Stainless Steel Kitchen Sink with SilentShield

Model: K-3823-1-NA
|
Item: bci1337098

$782.92
Finish: Stainless Steel -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Product Features:
  • Double basin sink with a 60/40 split provides increased versatility for any task
  • Covered under Kohler's limited lifetime warranty
  • The distinctive, modern design of the Vault sink lends a contemporary vibe to any kitchen
  • This sink features tightly angled corners to maximize basin space and a sloped bottom that helps with draining and clean up

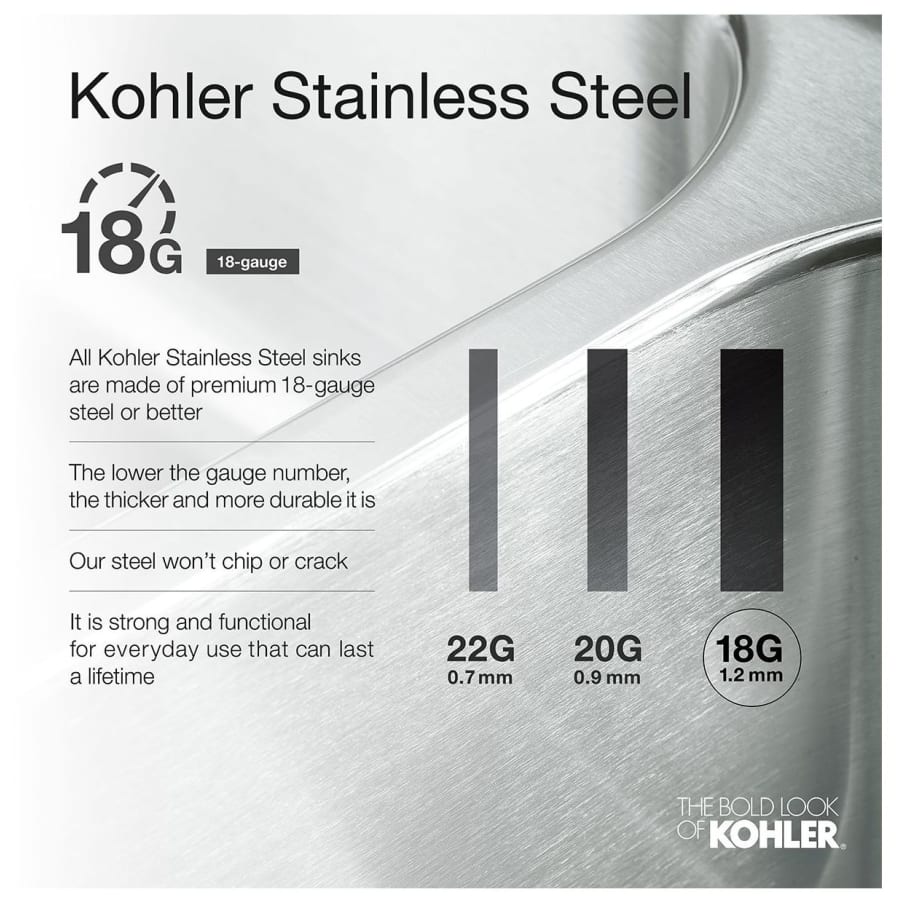

  • Hand crafted from 18-gauge stainless steel giving both the aesthetic beauty you want and the durability and longevity you need
  • Top-mount or Under-mount installation options
  • Rear drain location increases workspace area in the sink as well as storage area underneath
  • All hardware needed for installation included

Product Technologies / Benefits:

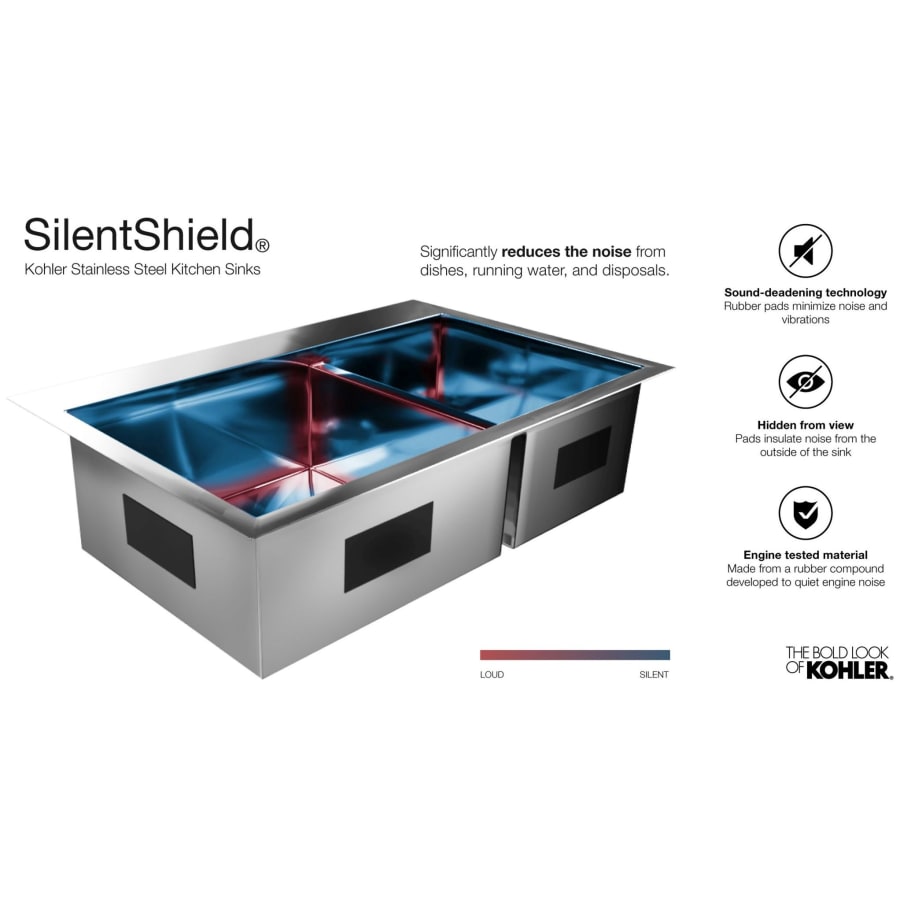

  • SilentShield®: A sound-absorption system found in many Kohler sinks that significantly reduces the noise from clanging dishes and silverware, as well as undesirable noise caused by running water and disposals.
Product Specifications:

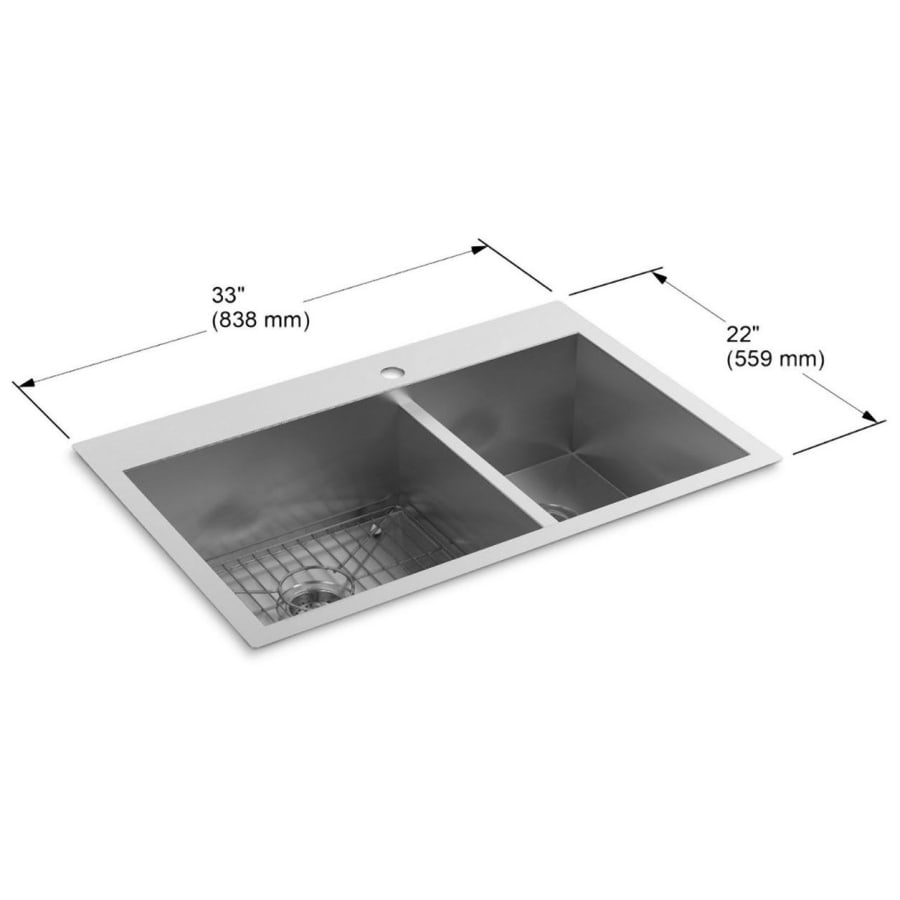

  • Height: 9-5/16" (measured from the bottom of the sink to the top most point of the sink)
  • Overall Width: 22" (measured from the back outer rim to the front outer rim)
  • Overall Length: 33" (measured from the left outer rim to the right outer rim)
  • Basin Width (left): 16-9/16" (measured from the back inner rim to the front inner rim)
  • Basin Length (left): 17-1/2" (measured from the left inner rim to the right inner rim)
  • Basin Depth (left): 9" (measured from center of the basin to the rim)
  • Basin Width (right): 16-9/16" (measured from the back inner rim to the front inner rim)
  • Basin Length (right): 11-5/8" (measured from the left inner rim to the right inner rim)
  • Basin Depth (right): 9" (measured from center of the basin to the rim)
  • Installation Type: Top-mount or Under-mount
  • Number of Faucet Holes: 1
  • Drain Outlet Connection: 3-5/8"
  • Minimum Base Cabinet Width: 35"

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.

Additional Kohler Links

Dimensions and Measurements

Basin Depth
9 in.
Basin Depth (Left)
9 in.
Basin Depth (Right)
9 in.
Basin Length (Left)
17.5 in.
Basin Length (Right)
11.625 in.
Basin Width (Left)
16.563 in.
Basin Width (Right)
16.563 in.
Drain Connection
3.625 in.
Faucet Centers
0 in.
Gauge
18
Height
9.313 in.
Length
33 in.
Nominal Length
33 in.
Nominal Width
22 in.
Sink Length
33 in.
Width
22 in.

Dimensions and Measurements

Basin Depth
9 in.
Basin Depth (Left)
9 in.
Basin Depth (Right)
9 in.
Basin Length (Left)
17.5 in.
Basin Length (Right)
11.625 in.
Basin Width (Left)
16.563 in.
Basin Width (Right)
16.563 in.
Drain Connection
3.625 in.
Faucet Centers
0 in.
Gauge
18
Height
9.313 in.
Length
33 in.
Nominal Length
33 in.
Nominal Width
22 in.
Sink Length
33 in.
Width
22 in.

Included Components

Basin Rack Included
Yes
Basket Strainer Included
No
Cutting Board Included
No
Faucet Included
No
Soap Dispenser Included
No

Included Components

Basin Rack Included
Yes
Basket Strainer Included
No
Cutting Board Included
No
Faucet Included
No
Soap Dispenser Included
No

Characteristics and Features

Basin Split
60/40
Drain Placement
Rear
Farmhouse
No
Faucet Holes
1
Installation Type
Drop In, Undermount
Material
Stainless Steel
Number Of Basins
2
Sink Shape
Rectangular
Sound Dampening
Yes
Theme
Modern

Characteristics and Features

Basin Split
60/40
Drain Placement
Rear
Farmhouse
No
Faucet Holes
1
Installation Type
Drop In, Undermount
Material
Stainless Steel
Number Of Basins
2
Sink Shape
Rectangular
Sound Dampening
Yes
Theme
Modern

Warranty and Product Information

ADA
No
Collection
Vault
Country Of Origin
USA

Warranty and Product Information

ADA
No
Collection
Vault
Country Of Origin
USA
