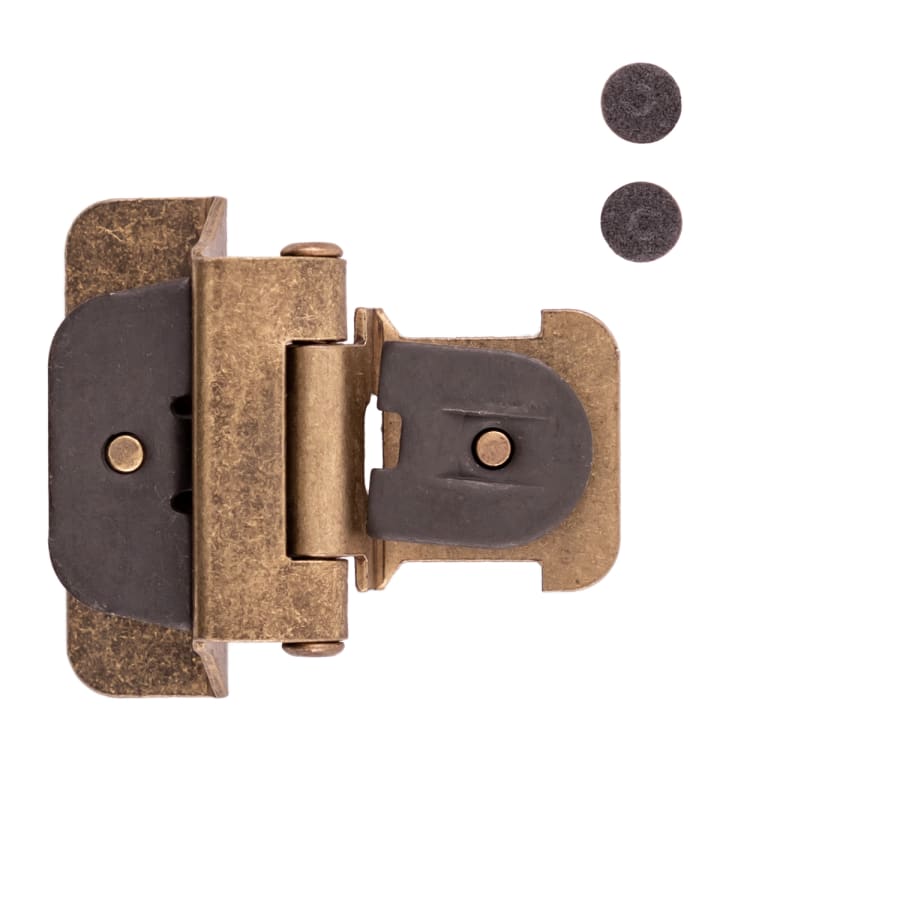

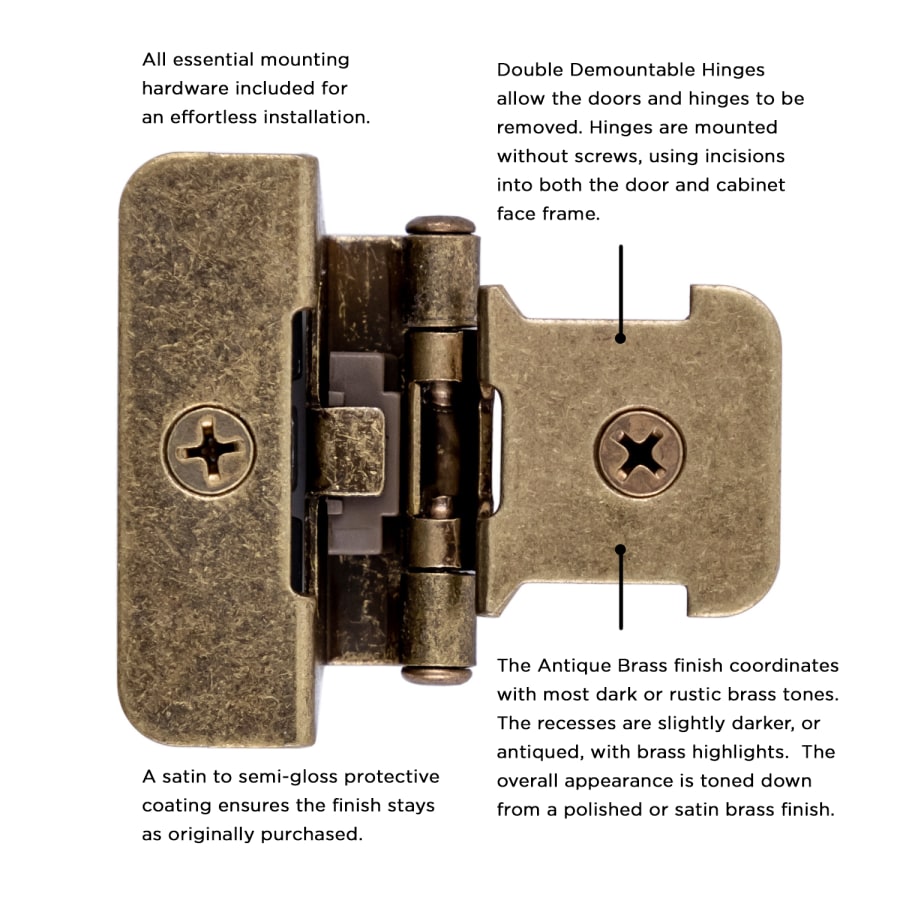

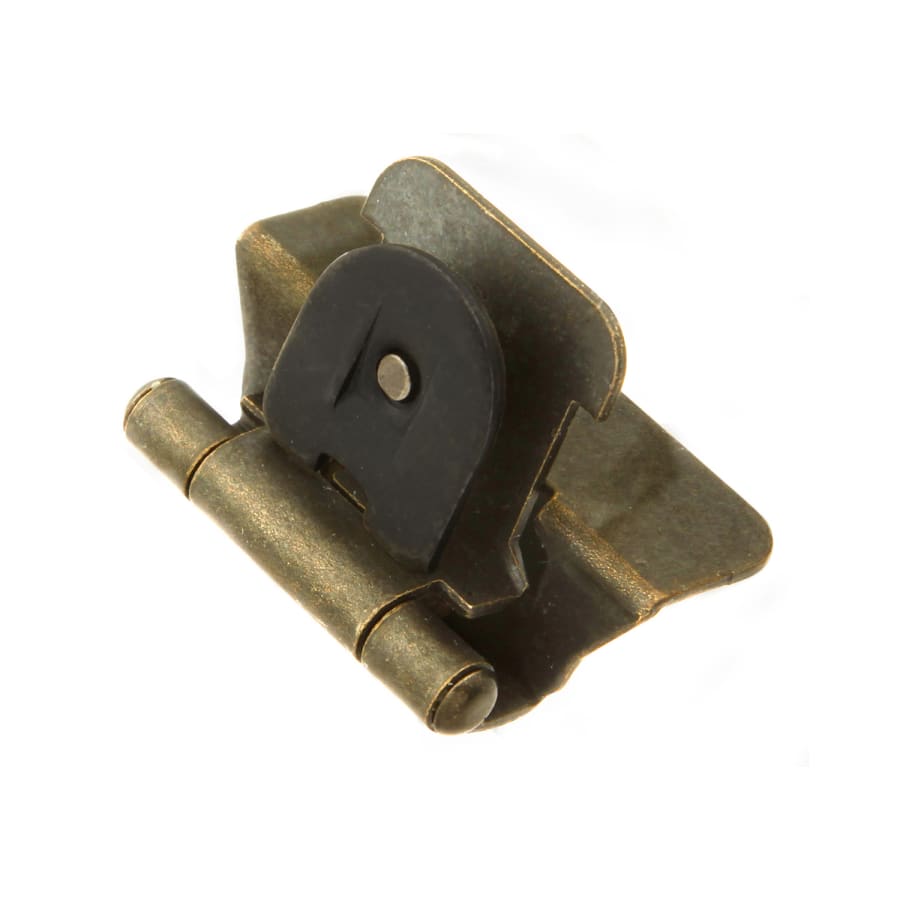

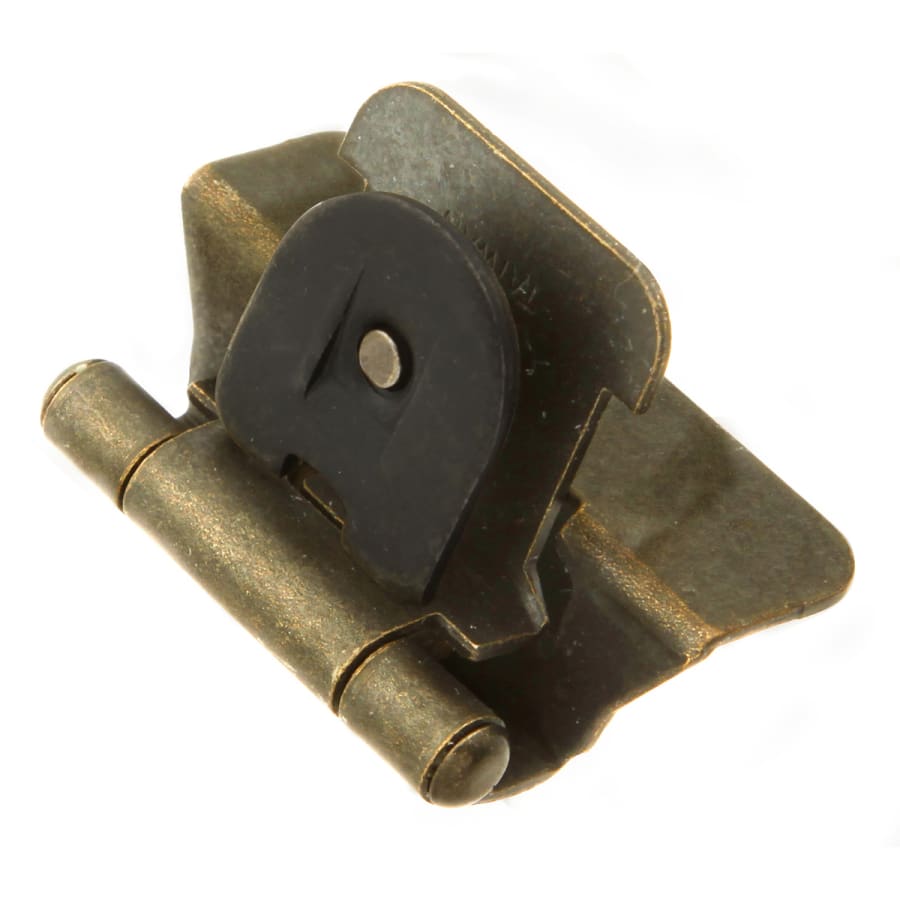

Hickory Hardware 1/4 Inch Overlay Wrap Around Cabinet Door Hinge with Self Close Function and Double Demountability (Package of 2)

Model: P5311-AB
|
Item: bci2723105

Sale
Was $9.15
$5.6638% off
Finish: Antique Brass -
250 In Stock
Finish: Antique Brass -
250 In Stock
placeholder
Free Shipping on orders over $49.00!
Leaves the Warehouse in 2 to 4 business days
-
Return & Shipping Details

Details

Features:

  • Includes two hinges in each order (Not sold individually)
  • Metal construction adds durability for a long lifespan
  • Reliable, self-closing power of dual compression springs
  • All mounting hardware included

Product Technologies:

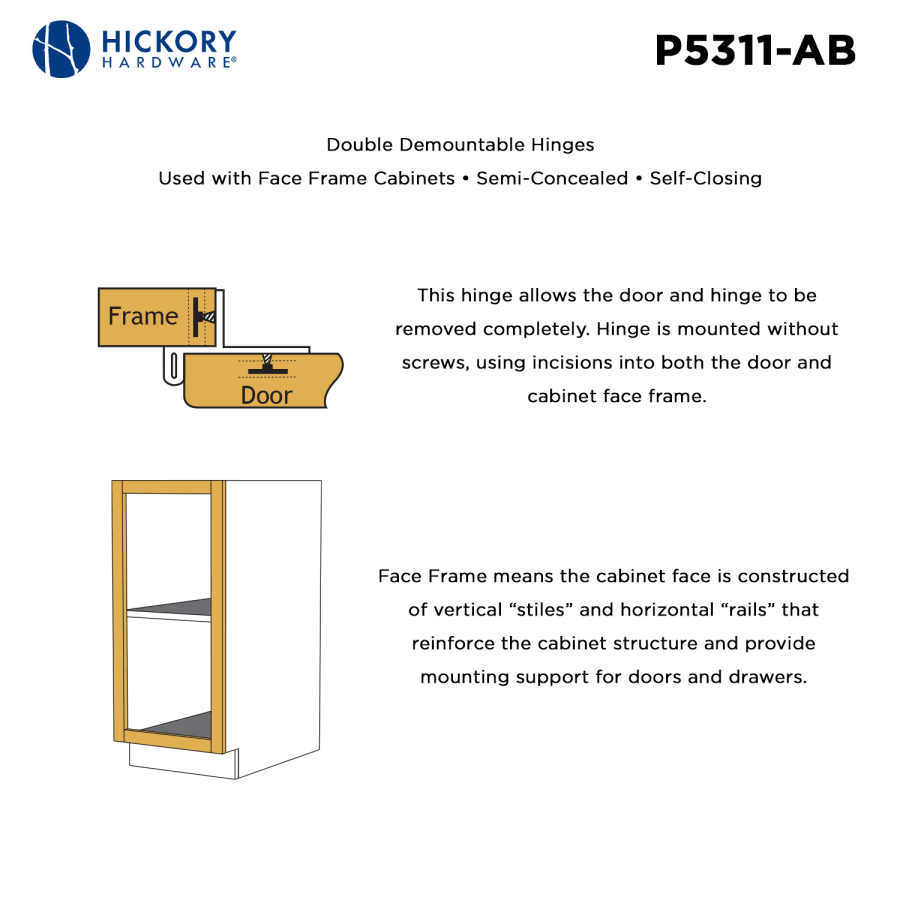

  • Partial Overlay: A partialoverlay hinge is needed when the cabinet door you are mounting overlays the cabinet frame itself. Overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with partial concealment of the hardware itself when the cabinet door is closed.
  • Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.

Specifications:

  • Width: 1-1/2"
  • Length: 1-5/16"
  • Hinge Mount: Partial Overlay
  • Depth Adjustment: No
  • Vertical Adjustment: No
  • Side to Side Adjustment: No
  • Material: Metal
  • Quantity: 2
Additional Hickory Hardware Links

Dimensions and Measurements

Length
1.3 in.
Overlay
1/4 Inch
Quantity
2
Width
1.5 in.

Dimensions and Measurements

Length
1.3 in.
Overlay
1/4 Inch
Quantity
2
Width
1.5 in.

Included Components

Installation Hardware Included
Yes

Included Components

Installation Hardware Included
Yes

Characteristics and Features

3-Way Adjustable
No
Adjustable Depth
No
Adjustable Height
No
Adjustable Side to Side
No
Cabinet Type
Face Frame, Panel (Frameless)
Demountable
Yes
Hinge Mount
Partial Overlay
Hinge Type
Wrap
Installation Type
Screw
Material
Metal
Number of Knuckles
3
Self Closing
Yes
Soft Close
No

Characteristics and Features

3-Way Adjustable
No
Adjustable Depth
No
Adjustable Height
No
Adjustable Side to Side
No
Cabinet Type
Face Frame, Panel (Frameless)
Demountable
Yes
Hinge Mount
Partial Overlay
Hinge Type
Wrap
Installation Type
Screw
Material
Metal
Number of Knuckles
3
Self Closing
Yes
Soft Close
No

Warranty and Product Information

Approved for Commercial Use
No

Warranty and Product Information

Approved for Commercial Use
No
