The Hickory Hardware P1175-2C-5B has been discontinued
** See similar or replacement items below **
Hickory Hardware 24 Inch 3/4 Extension Rail Drawer Slides with 25 Pound Weight Capacity - Pack of 10
Model: P1175-2C-5B|Item: bci4405841
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details

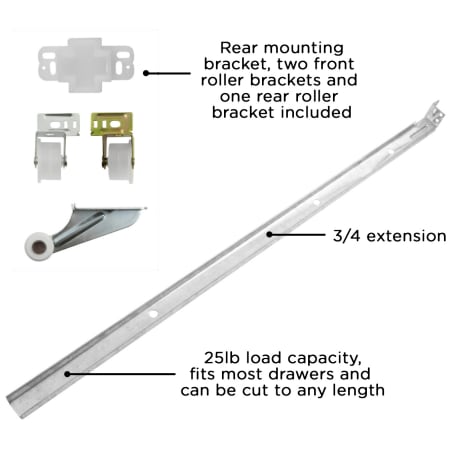

Mono rail drawer slide that can be cut to size to suit most drawers, up to 22 inch in length. Operates smoothly via rollers mounted to cabinet and one roller on drawer running within guided rail underneath. Typically this type is used as replacement to existing monorail setup or as simple economical solution. Note this slide is for light duty only - the track system can sustain load up to 25 lb. Mounting hardware and instructions included for DIY friendly installation.
Features:
- Cut to any length
- Fits most drawers up to 23-1/2 Inch depth
- 25 lb. load capacity
- Ideal for small, light-weight drawers
- Package of five (5)

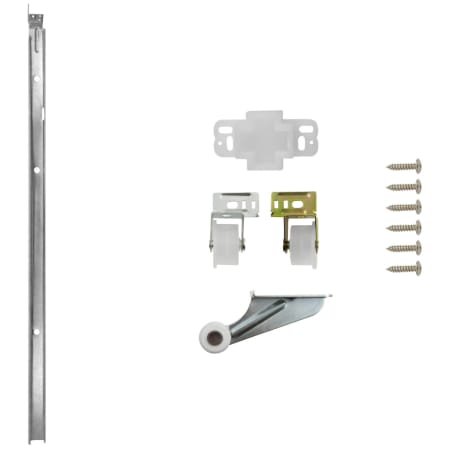

- All essential mounting hardware included for an effortless installation
Specifications:
- Drawer Length: 24-5/16"
- Slide Length: 23-5/16"
- Extension Type: 3/4 Extension
- Slide Type: Rail
- Weight Capacity: 25 lbs.
- Material: Plastic, Steel
- Quantity: 10
- Country of Origin: China
Since 1893, Hickory Hardware has built a reputation as the world's premier producer and preferred supplier of quality decorative cabinet Hardware.

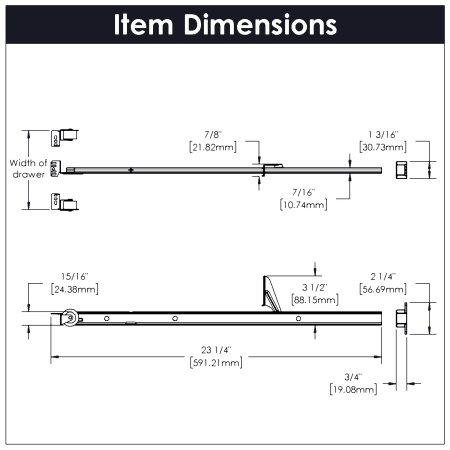

Dimensions and Measurements
Drawer Length | 24.31 in. |
Extension | 17.4825 in. |
Height | 1.13 in. |
Length | 23.31 in. |
Max Capacity (Pounds) | 25 lbs. |
Nominal Length | 24 in. |
Product Weight | 5 lbs. |
Quantity | 10 |
Width | 0.94 in. |
Dimensions and Measurements
Drawer Length | 24.31 in. |
Extension | 17.4825 in. |
Height | 1.13 in. |
Length | 23.31 in. |
Max Capacity (Pounds) | 25 lbs. |
Nominal Length | 24 in. |
Product Weight | 5 lbs. |
Quantity | 10 |
Width | 0.94 in. |
Included Components
Installation Hardware Included | Yes |
Included Components
Installation Hardware Included | Yes |
Characteristics and Features
Cabinet Type | Panel (Frameless) |
Detent | Yes |
Disconnect Style | Non Disconnect |
Extension Type | 3/4 Extension |
Installation Type | Center Mount |
Material | Steel |
Self Closing | No |
Slide Type | Rail |
Soft Close | No |
Swivel | No |
Characteristics and Features
Cabinet Type | Panel (Frameless) |
Detent | Yes |
Disconnect Style | Non Disconnect |
Extension Type | 3/4 Extension |
Installation Type | Center Mount |
Material | Steel |
Self Closing | No |
Slide Type | Rail |
Soft Close | No |
Swivel | No |
Warranty and Product Information
Approved for Commercial Use | No |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Approved for Commercial Use | No |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
