Grohe Grandera Pressure Balanced Tub and Shower Package with Multi-Function Shower Head and Integrated Diverter and Volume Control - Rough-In Valve Included

All products in this package are covered under Grohe's limited lifetime warranty

What's Included:

• 19 938 Pressure Balanced Valve Trim
• 26 035 Multi-Function Shower Head
• 27 988 Shower Arm
• 13 342 Non-Diverter Tub Spout

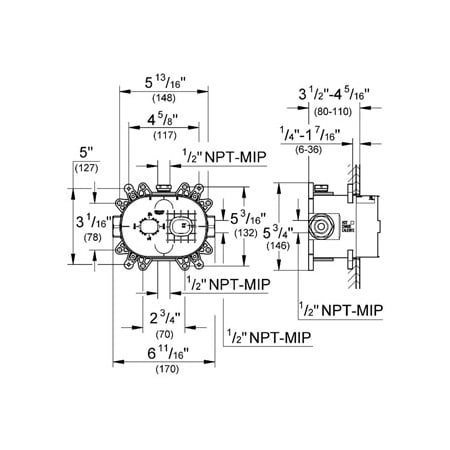

• 35 026 Rough-In Valve

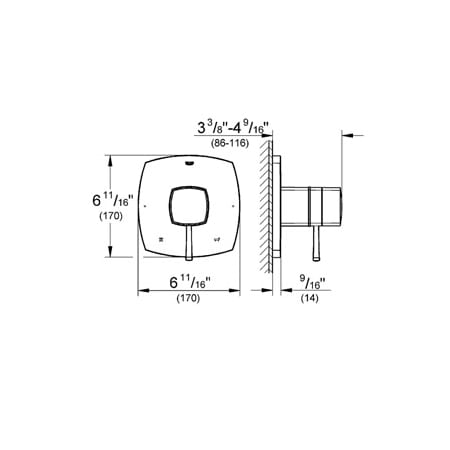

19 938 Pressure Balanced Valve Trim:

• Dual function - one handle controls temperature of water and one handle controls volume of water and transfer of water flow
• 2-way diverter transfers water flow from shower head to tub spout
• Lever handle for volume and transfer of water, grip handle for temperature of water
• Features Grohe's SilkMove® cartridge
• Trim Dimensions: 6-11/16" H x 6-11/16" W
• Depth: 3-3/8" - 4-9/16" (adjustable from wall)
• Required rough-in valve is included

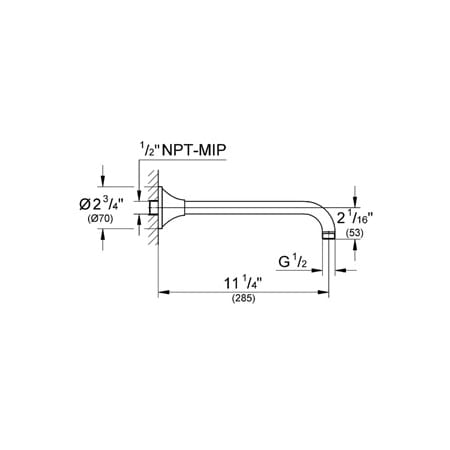

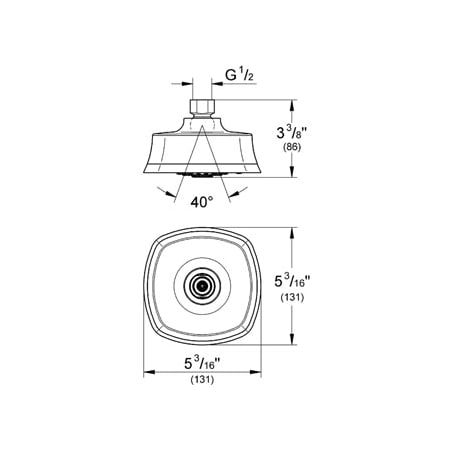

26 035 Multi-Function Shower Head / 27 988 Shower Arm:

• Features three spray patterns - Rain, SmartRain, and Massage
• Equipped with Grohe's SprayDimmer, SpeedClean, and DreamSpray technologies
• Rotates 40° in any direction for maximum coverage
• Flow Rate: 2 GPM (gallons-per-minute)
• Shower Head Dimensions: 5-3/16" W x 5-3/16" D
• Shower Head Height: 3-3/8"
• Shower Arm Reach: 11-14"

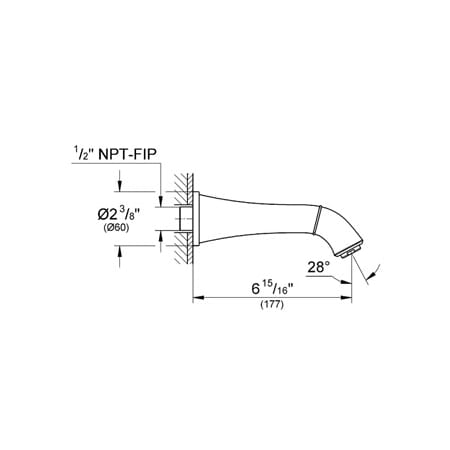

13 342 Non-Diverter Tub Spout:

• Non-diverter tub spout allows for water flow transfer at the valve trim
• Features flow control
• Spout outlet can be adjusted 28° in any direction
• Spout Reach: 6-15/16"
• Connection Type: 1/2" NPT-FIP
