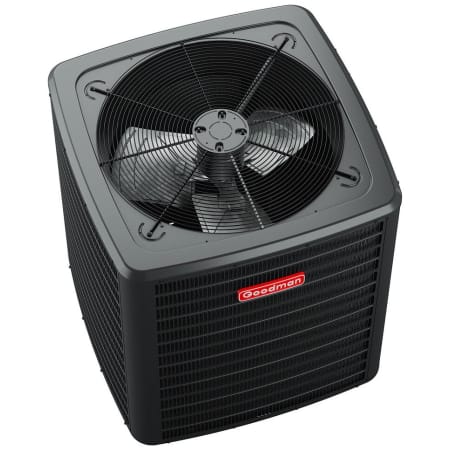

Goodman GLXS4B Series 5.0 Ton Cooling Single Stage Condenser

Goodman's air conditioners are all about reliable cooling at an affordable price. The GLXS4B line of air conditioners provides efficient cooling with a nominal SEER rating of 14.3 SEER2. The savings don't stop at energy costs though, the GLXS4B is designed for quick installation and maintenance as well. It includes advanced components that protect the coil and compressor to ensure the unit's longevity and your peace-of-mind. Upgrade to a Goodman air conditioner today and stay cool for years to come.

Product Information:

Energy-Efficient Compressor
• This unit utilizes an energy-efficient compressor to provide refrigerant flow.
Copper Tube/Enhanced Aluminum Fin Coil
• The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency. The fins serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
Factory-Installed Filter Drier
• A filter drier is installed in the liquid line of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
Secure Cabinet
• The removable grille-style top design is UL 60335-2-40 compliant.
Heavy-Gauge Galvanized-Steel Cabinet
• This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish with 500-hour salt-spray approval, and a steel louver coil guard that protects your equipment from wear and tear.
Extended Warranty
• Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

General Information:

• Type: Single Stage Condenser
• Operating Mode: Cooling
• Installation Location: Outdoor
• Refrigerant Type: R-32
• DOE Regional Compliance: Nationwide

Performance:

• Cooling Capacity (Tons): 5.0 Ton
• Cooling BTU: 60,000
• Cooling BTU Capacity: 60,000
• Maximum Sound Level: 76 dB
• SEER2: 14.3

Electrical Data:

• Voltage: 208, 230V
• Electrical Phases: 1
• Frequency: 60 Hz
• Amperage: 32.4A
• Recommended Breaker Size: 50A

Dimensions:

• Suction Line Diameter: 1-1/8"
• Liquid Line Connection Size: 3/8" Inch
• Height: 39-1/2"
• Width: 35-1/2"
• Depth: 35-1/2"
• Product Weight: 224 lbs.
• Shipping Weight: 239 lbs

Product Assurance:

• Certifications:
  • AHRI
  • ETL
  • ISO
• Warranty: 10 Year Limited Parts
