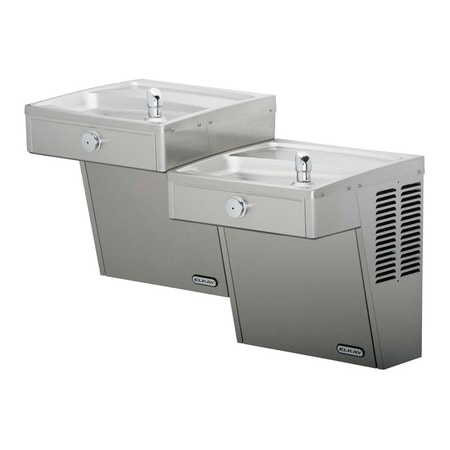

Elkay 7.8 GPH ADA Wall Mount Bi-Level Vandal Resistant Filtered Cooler
Model: LVRCTL8SC|Item: bci1148770
$2,368.50
Finish: Stainless Steel -
17 In Stock
Details
Elkay 7.8 GPH ADA Wall Mount Bi-Level Vandal Resistant Filtered Cooler
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
- Two-level self contained water cooler
- Electric refrigerated
- Vandal-resistant unit
- Rated for indoor or outdoor use
- Stainless steel construction provides vandal-resistant enclosure
- Flow regulator provides constant stream from 20 to 105 psi water pressure
- Heavy duty push button control is vandal-resistant
- Non-pressurized water tank is standard
- Non-pressurized water tank is located after bubbler valve (so that the tank is subject to line pressure only when push bar is pressed)
- ADA compliant
- No lead design
- Construction
- Frame - Galvanized structural steel chassis supports fountain top and cabinet panels
- Fountain Top - One piece stainless steel top, basin has embossed bubbler pad
- Vandal-Resistant Bubbler - Heavy duty, one piece construction. Keyed into position to prevent rotation
- Cabinet - Cabinet design allows for flush to Wall mounting. No recess space is required. Includes bottom cover plate fastened with standard screws
- Cooling System
- Motor Compressor - Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
- Condenser - Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
- Cooling Unit - Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated
- Refrigerant Control - Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free operation
- Temperature Control - Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements. Easily accessible
Product Specifications:
- Base Flow Rated: 7.8
- Rated Watts: 575
- Full Load Amps: 4.0
- Fountain Type: Cooler
- Shipping Weight: 94 lbs
- Installation Type: Wall
- Hands Free Operation: No
- Voltage: 115V/60Hz
- Height: 26-1/8"
- Depth: 18-5/8"
- Glass Filler: No
- Vandal Resistant Bubbler: Yes
- Filter: Yes
- Louver Screen: No
Dimensions and Measurements
Cooling Capacity | 9.4 GPH |
Flow Rate (GPM) | .13 |
Gauge | 18 |
Height | 27.125 in. |
Inlet Diameter | .375 in. |
Length | 36.3125 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 94 lbs. |
Water Pressure (Max) | 105 PSI |
Water Pressure (Min) | 20 PSI |
Width | 18.625 in. |
Dimensions and Measurements
Cooling Capacity | 9.4 GPH |
Flow Rate (GPM) | .13 |
Gauge | 18 |
Height | 27.125 in. |
Inlet Diameter | .375 in. |
Length | 36.3125 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 94 lbs. |
Water Pressure (Max) | 105 PSI |
Water Pressure (Min) | 20 PSI |
Width | 18.625 in. |
Included Components
Bottle Filler Included | No |
Cooling Unit | Yes |
Included Components
Bottle Filler Included | No |
Cooling Unit | Yes |
Characteristics and Features
Antimicrobial | Yes |
Bi-Level | Yes |
Control Type | Push Button |
Filtered | Yes |
Freeze Resistant | No |
Hands Free | No |
Installation Type | Wall Mounted |
Material | Stainless Steel |
Number of Stations | 2 |
Pet Friendly | No |
Vandal Resistant | Yes |
Characteristics and Features
Antimicrobial | Yes |
Bi-Level | Yes |
Control Type | Push Button |
Filtered | Yes |
Freeze Resistant | No |
Hands Free | No |
Installation Type | Wall Mounted |
Material | Stainless Steel |
Number of Stations | 2 |
Pet Friendly | No |
Vandal Resistant | Yes |
Electrical and Operational Information
Amperage | 5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Voltage | 220 |
Wattage | 575 |
Electrical and Operational Information
Amperage | 5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Voltage | 220 |
Wattage | 575 |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.19.3 |
Certifications | NSF, ANSI, ASME, UL |
Location Rating | Dry Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Outdoor Approved | No |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.19.3 |
Certifications | NSF, ANSI, ASME, UL |
Location Rating | Dry Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Outdoor Approved | No |
