Elkay Gourmet 33" Double Basin 18-Gauge Stainless Steel Kitchen Sink for Drop In Installations with 50/50 Split - eDock Hook Included
Model: LR3322EK1|Item: bci1802160
from theGourmet Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Elkay LR3322EK Features:
- Constructed of 18-gauge T-304 grade stainless steel
- Double basin sink with a 50/50 split increases versatility
- Designed for drop in installations
- Basins are undercoated and padded to prevent dish clatter and cabinet condensation
- Center drain location provides optimal drainage capability
- eDock Hook Included
- Covered under Elkay's limited lifetime residential warranty
Product Technologies / Benefits:
- SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.

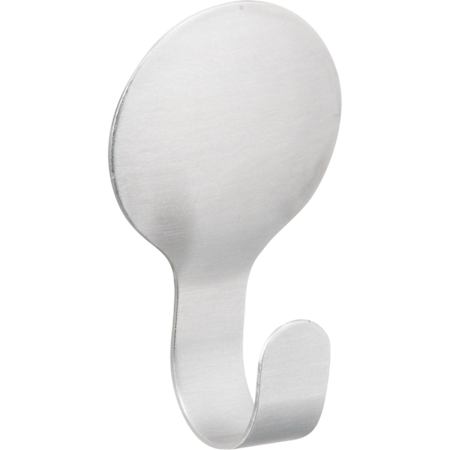

- eDock: This sink is designed to be used with eDock sink accessories which use magnets to adhere to the sides of the sink where they can hold any of your common kitchen tools; from sponges and soap to dish towels and scrub brushes.

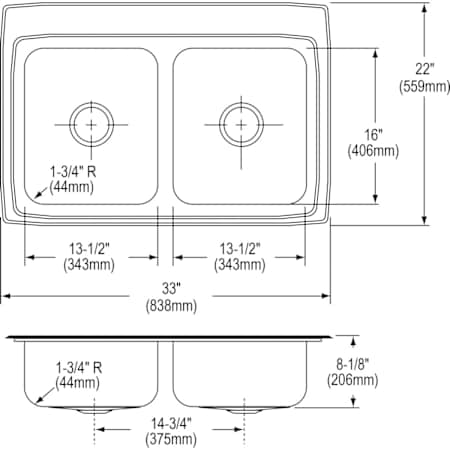

Elkay LR3322EK Specifications:
- Height: 8-1/8" (measured from bottom of sink to top of rim)
- Length: 33" (measured from left outer rim to right outer rim)
- Width: 22" (measured from back outer rim to front outer rim)
- Basin Depth (left): 7-3/4" (measured from center of basin to rim)
- Basin Length (Left): 13-1/2" (measured from left outer rim to right outer rim)
- Basin Width (Left): 16" (measured from back outer rim to front outer rim)
- Basin Depth (Right): 7-3/4" (measured from center of basin to rim)
- Basin Length (Right): 13-1/2" (measured from left outer rim to right outer rim)
- Basin Width (Right): 16" (measured from back outer rim to front outer rim)
- Installation Type: Drop In
- Minimum Cabinet Size: 36"
- Basin Split: 50/50
- Faucet Holes: 1 - 5 (holes required for faucet installation)
- Drain Connection: 3-1/2"
Dimensions and Measurements
Basin Depth | 7.75 in. |
Basin Depth (Left) | 7.75 in. |
Basin Depth (Right) | 7.75 in. |
Basin Length (Left) | 13.5 in. |
Basin Length (Right) | 13.5 in. |
Basin Width (Left) | 16 in. |
Basin Width (Right) | 16 in. |
Drain Connection | 3.5 in. |
Faucet Centers | 0, 4, 8 in. |
Faucet Hole Size | 1.5 in. |
Gauge | 18 |
Height | 8.125 in. |
Length | 33 in. |
Minimum Cabinet Size | 36 in. |
Nominal Length | 33 in. |
Product Weight | 31.47 lbs. |
Sink Length | 33 in. |
Width | 22 in. |
Dimensions and Measurements
Basin Depth | 7.75 in. |
Basin Depth (Left) | 7.75 in. |
Basin Depth (Right) | 7.75 in. |
Basin Length (Left) | 13.5 in. |
Basin Length (Right) | 13.5 in. |
Basin Width (Left) | 16 in. |
Basin Width (Right) | 16 in. |
Drain Connection | 3.5 in. |
Faucet Centers | 0, 4, 8 in. |
Faucet Hole Size | 1.5 in. |
Gauge | 18 |
Height | 8.125 in. |
Length | 33 in. |
Minimum Cabinet Size | 36 in. |
Nominal Length | 33 in. |
Product Weight | 31.47 lbs. |
Sink Length | 33 in. |
Width | 22 in. |
Included Components
Basin Rack Included | No |
Basket Strainer Included | No |
Cutting Board Included | No |
Drain Assembly Included | No |
Faucet Included | No |
Installation Hardware Included | Yes |
Soap Dispenser Included | No |
Included Components
Basin Rack Included | No |
Basket Strainer Included | No |
Cutting Board Included | No |
Drain Assembly Included | No |
Faucet Included | No |
Installation Hardware Included | Yes |
Soap Dispenser Included | No |
Characteristics and Features
Apron Front | No |
Basin Split | 50/50 |
Drain Placement | Center |
Faucet Holes | 1, 2, 3, 4, 5 |
Installation Type | Drop In |
Material | Stainless Steel |
Number Of Basins | 2 |
Overflow | No |
Sink Shape | Rectangular |
Sound Dampening | Yes |
Stainless Steel Grade | 304 |
Theme | Modern, Traditional |
Undercoating | Yes |
Characteristics and Features
Apron Front | No |
Basin Split | 50/50 |
Drain Placement | Center |
Faucet Holes | 1, 2, 3, 4, 5 |
Installation Type | Drop In |
Material | Stainless Steel |
Number Of Basins | 2 |
Overflow | No |
Sink Shape | Rectangular |
Sound Dampening | Yes |
Stainless Steel Grade | 304 |
Theme | Modern, Traditional |
Undercoating | Yes |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes, No |
Certifications | UPC, ASME, CSA |
Collection | Gourmet |
Manufacturer Warranty | Limited Lifetime Residential |
Series | Sound Guard |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes, No |
Certifications | UPC, ASME, CSA |
Collection | Gourmet |
Manufacturer Warranty | Limited Lifetime Residential |
Series | Sound Guard |
