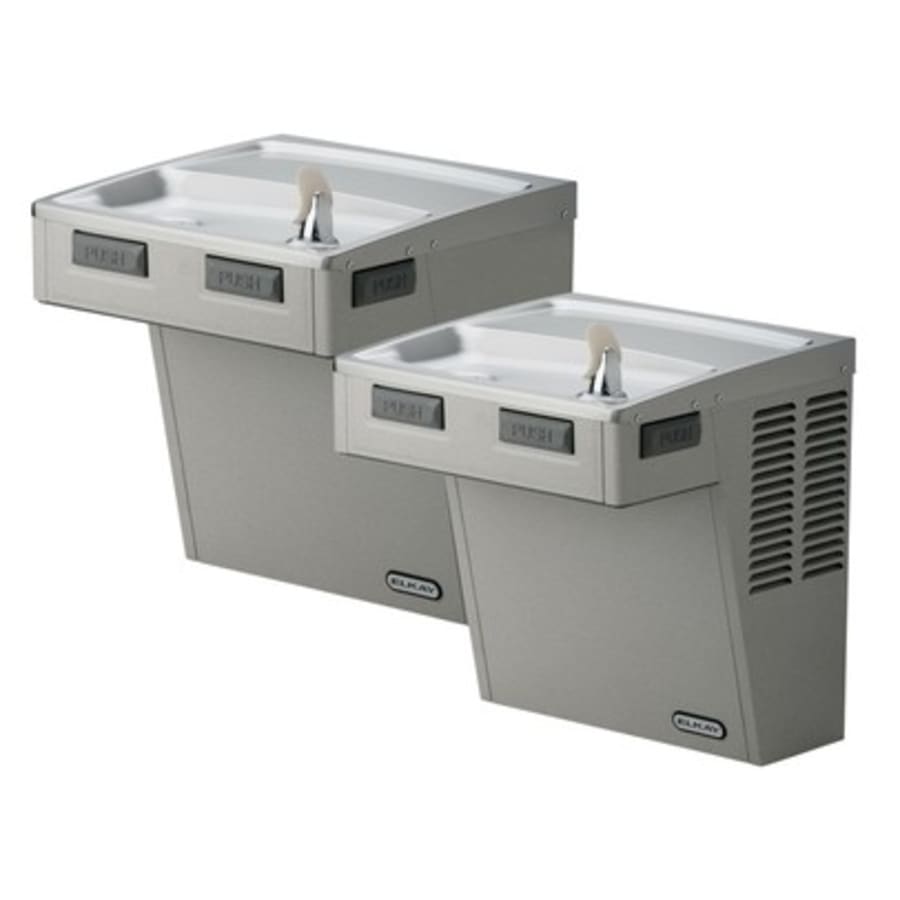

Elkay 8 GPH ADA Wall Mount Bi-Level Cooler with Mechanical Push Bar
Model: EMABFTL8LC|Item: bci1148815
$1,805.25
Finish: Light Gray Granite -
11 In Stock
Finish: Light Gray Granite -
11 In Stock
Light Gray Granite
Details
Elkay 8 GPH ADA Wall Mount Bi-Level Cooler with Mechanical Push Bar
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
- Self contained double wall hung water cooler
- Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient
- Hooded stream projector
- Self closing push bars on front, left and right sides
- Built-In flow regulator from 20 to 105 psi
- No lead design
- ADA compliant
- Construction
- Frame - Galvanized steel chassis supports fountain top and all working mechanisms. No operating parts are connected
- Filtered: No
Dimensions and Measurements
Cooling Capacity | 9.7 GPH |
Flow Rate (GPM) | .13 |
Gauge | 18 |
Height | 23.625 in. |
Inlet Diameter | .375 in. |
Length | 36 in. |
Outlet Diameter | 1.5 in. |
Product Weight | 92 lbs. |
Water Pressure (Max) | 105 PSI |
Water Pressure (Min) | 20 PSI |
Width | 18.625 in. |
Dimensions and Measurements
Cooling Capacity | 9.7 GPH |
Flow Rate (GPM) | .13 |
Gauge | 18 |
Height | 23.625 in. |
Inlet Diameter | .375 in. |
Length | 36 in. |
Outlet Diameter | 1.5 in. |
Product Weight | 92 lbs. |
Water Pressure (Max) | 105 PSI |
Water Pressure (Min) | 20 PSI |
Width | 18.625 in. |
Included Components
Bottle Filler Included | No |
Cooling Unit | Yes |
Included Components
Bottle Filler Included | No |
Cooling Unit | Yes |
Characteristics and Features
Antimicrobial | Yes |
Bi-Level | Yes |
Bubbler Type | FlexiGuard Safety |
Control Type | Bar |
Filtered | No |
Freeze Resistant | Yes |
Installation Type | Wall Mounted |
Material | Stainless Steel |
Number of Stations | 2 |
Pet Friendly | No |
Vandal Resistant | No |
Characteristics and Features
Antimicrobial | Yes |
Bi-Level | Yes |
Bubbler Type | FlexiGuard Safety |
Control Type | Bar |
Filtered | No |
Freeze Resistant | Yes |
Installation Type | Wall Mounted |
Material | Stainless Steel |
Number of Stations | 2 |
Pet Friendly | No |
Vandal Resistant | No |
Electrical and Operational Information
Amperage | 4 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Voltage | 115 |
Wattage | 370 |
Electrical and Operational Information
Amperage | 4 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Voltage | 115 |
Wattage | 370 |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.19.3 |
Certifications | NSF, ANSI, ASME, UL |
Lead Leaching Certified NSF/ANSI 61 | Yes |
Location Rating | Dry Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Outdoor Approved | No |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.19.3 |
Certifications | NSF, ANSI, ASME, UL |
Lead Leaching Certified NSF/ANSI 61 | Yes |
Location Rating | Dry Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Outdoor Approved | No |
