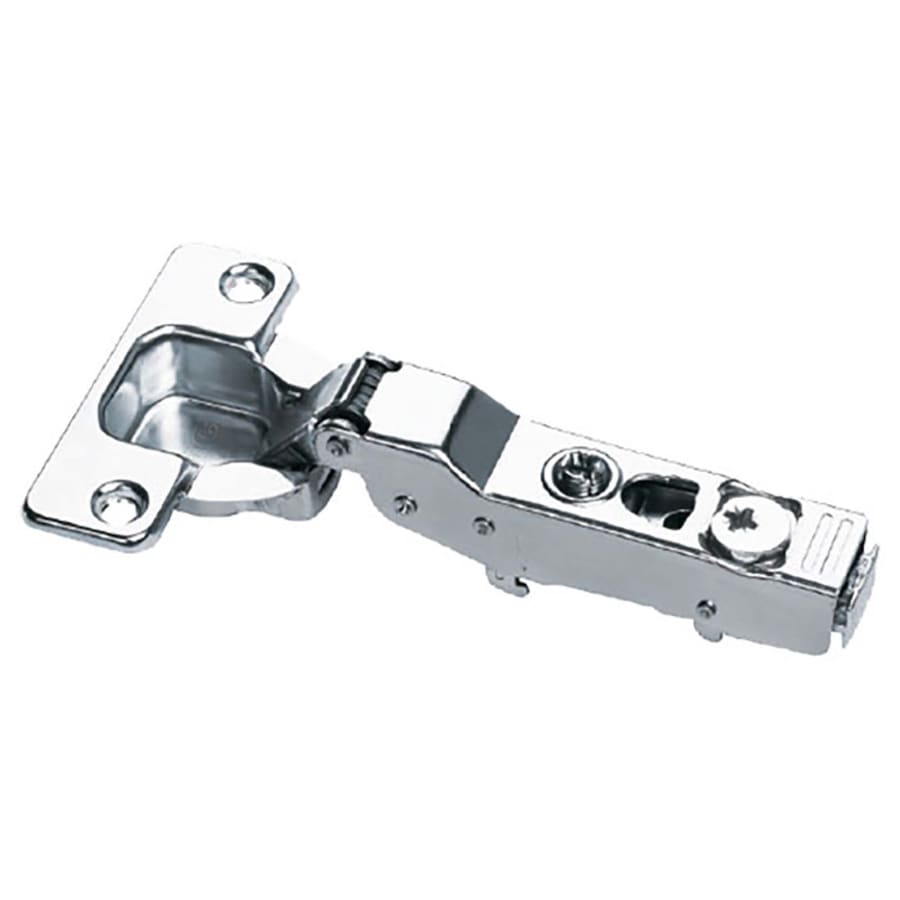

DTC C80 Series Full Overlay Concealed Euro Cabinet Door Hinge with 110 Degree Opening Angle and Soft Close Function - Single Hinge
Model: C80E675NF|Item: bci4705593
from theC80 Collection
$2.60
Finish: Nickel -
Special Order
Details

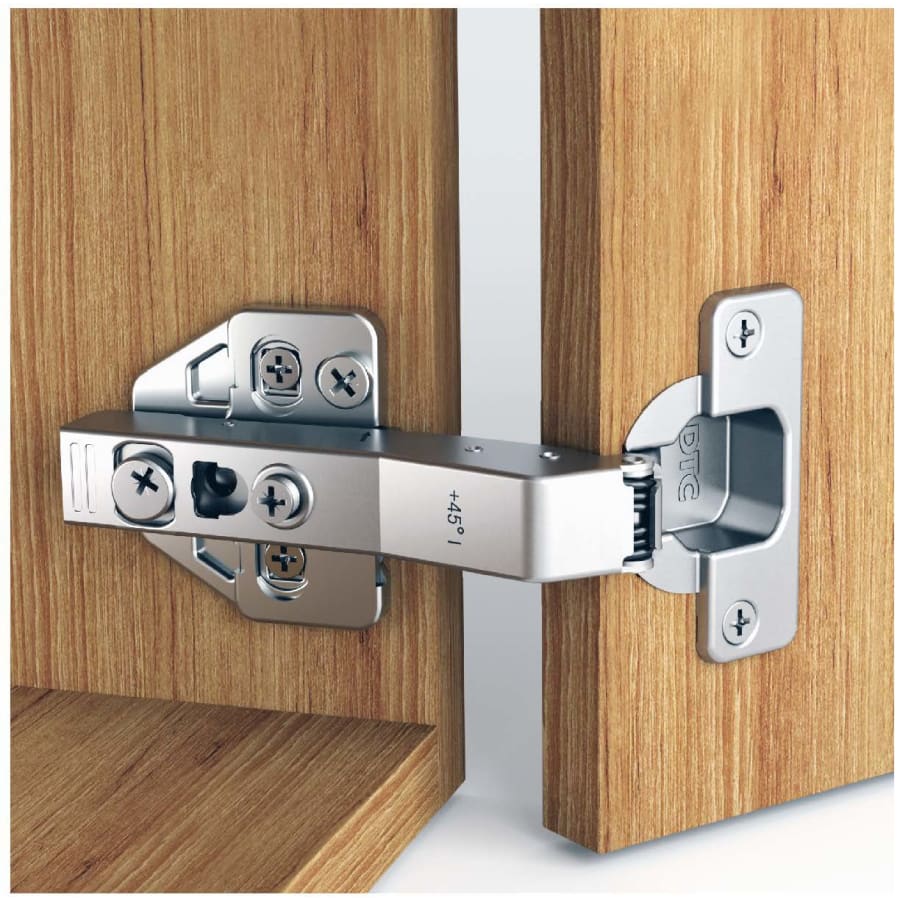

+45 Degree Soft-closing Doweled Full Overlay Angled Hinge
Features:
- Includes a single (1) hinge in each order
- Constructed of high quality steel for durability and dependability
- Covered by DTC's limited lifetime manufacturer warranty
- Soft close function ensures your cabinet door will close quietly
- Designed for a 110 degree opening angle
Specifications:
- Hinge Mount: Full Overlay
- Opening Angle: 110
- Material: Steel
- Installation Type: Screws
- Cup Diameter: 1-3/8"
- Bore Distance: 0.12, 0.24"
- Cup Depth: 7/16"
- Mount Centers: 1-11/16"
Manufacturer Resources
Specification SheetDimensions and Measurements
Boring Distance | 0.12, 0.24 mm |
Cup Depth | 0.45 in. |
Cup Depth mm | 11.5 mm |
Cup Diameter | 1.38 in. |
Cup Diameter mm | 35 mm |
Max Cabinet Door Thickness | 1.02 in. |
Mount Centers | 1.675 in. |
Mount Centers mm | 43 mm |
Opening Angle | 110 |
Overlay | Full |
Product Weight | 0.16 lbs. |
Quantity | 1 |
Dimensions and Measurements
Boring Distance | 0.12, 0.24 mm |
Cup Depth | 0.45 in. |
Cup Depth mm | 11.5 mm |
Cup Diameter | 1.38 in. |
Cup Diameter mm | 35 mm |
Max Cabinet Door Thickness | 1.02 in. |
Mount Centers | 1.675 in. |
Mount Centers mm | 43 mm |
Opening Angle | 110 |
Overlay | Full |
Product Weight | 0.16 lbs. |
Quantity | 1 |
Included Components
Installation Hardware Included | No |
Included Components
Installation Hardware Included | No |
Characteristics and Features
3-Way Adjustable | No |
Adjustable Depth | No |
Adjustable Height | No |
Adjustable Side to Side | No |
Arm Type | Straight Arm |
Bulk Pack | No |
Cabinet Type | Face Frame, Panel (Frameless) |
Demountable | No |
Hinge Mount | Full Overlay |
Hinge Type | Concealed Euro |
Installation Type | Screw |
Material | Steel |
Self Closing | No |
Soft Close | Yes |
Characteristics and Features
3-Way Adjustable | No |
Adjustable Depth | No |
Adjustable Height | No |
Adjustable Side to Side | No |
Arm Type | Straight Arm |
Bulk Pack | No |
Cabinet Type | Face Frame, Panel (Frameless) |
Demountable | No |
Hinge Mount | Full Overlay |
Hinge Type | Concealed Euro |
Installation Type | Screw |
Material | Steel |
Self Closing | No |
Soft Close | Yes |
Warranty and Product Information
Collection | 80 |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
Series | 80 |
Warranty and Product Information
Collection | 80 |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
Series | 80 |
