The Design House 552174 has been discontinued

** See similar or replacement items below **

Design House
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Item # bci3177677

Design House 43" Cultured Marble Drop-In Vanity Top with Integrated Sink and 3 Faucet Holes

Model: 552174
|
Item: bci3177677

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Design House 552174 Features:

  • Constructed of cultured marble, providing a sturdy feel and a clean appearance
  • Covered under Design House's 5 year limited warranty
  • Top features an oval integrated single basin sink
  • Rear drain location increases area in the sink as well as storage underneath
  • Equipped with overflow drain - works in tandem with primary drain to prevent spillage
  • Faucet and waste assembly not included with this model

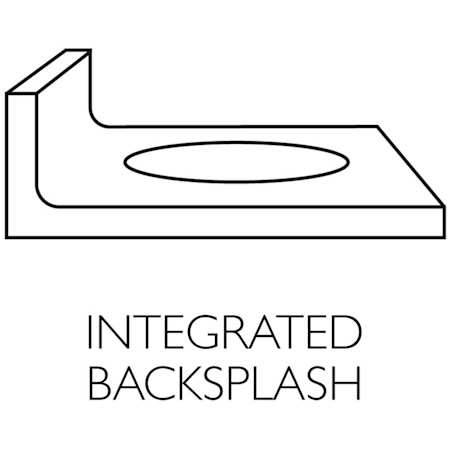

  • Vanity top is equipped with backsplash to help contain any messes or spills

Design House 552174 Specifications:

  • Vanity Top Thickness: 7/8"
  • Overall Depth: 22" (back to front of vanity top)
  • Overall Width: 43" (left outer rim to right outer rim)
  • Overall Height: 7-1/4" (bottom of sink to top of counter)
  • Backsplash Height: 3-9/10"
  • Sink Basin Width: 11-3/4" (back inner rim to front inner rim)
  • Sink Basin Length: 18-1/8" (left inner rim to right inner rim)
  • Number of Faucet Holes: 3

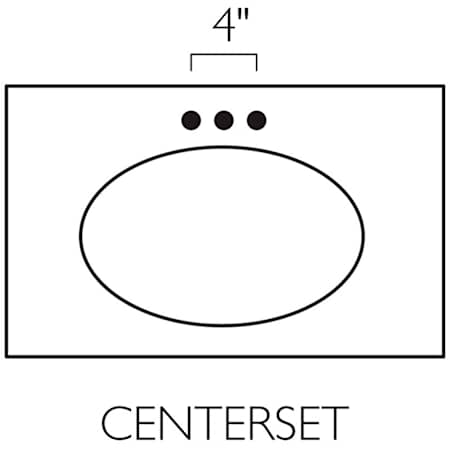

  • Faucet Centers: 4" (distance between handle installation holes)
  • Drain Outlet Connection: 1-3/4"
Additional Design House Links

Manufacturer Resources

Installation Sheet

Dimensions and Measurements

Backsplash Height
3.9 in.
Basin Depth
5.25 in.
Basin Length
18.125 in.
Basin Width
11.75 in.
Depth
22 in.
Drain Connection
1.75 in.
Faucet Centers
4 in.
Faucet Hole Size
1.250 in.
Height
7.25 in.
Nominal Width
43 in.
Sink Height
7.25 in.
Sink Length
18.125 in.
Sink Width
11.75 in.
Vanity Top Thickness
.875 in.
Width
43 in.

Dimensions and Measurements

Backsplash Height
3.9 in.
Basin Depth
5.25 in.
Basin Length
18.125 in.
Basin Width
11.75 in.
Depth
22 in.
Drain Connection
1.75 in.
Faucet Centers
4 in.
Faucet Hole Size
1.250 in.
Height
7.25 in.
Nominal Width
43 in.
Sink Height
7.25 in.
Sink Length
18.125 in.
Sink Width
11.75 in.
Vanity Top Thickness
.875 in.
Width
43 in.

Included Components

Backsplash Included
Yes
Drain Assembly Included
No
Pop-Up Included
No
Sidesplash
None
Sidesplash Included
No
Sink Included
Yes

Included Components

Backsplash Included
Yes
Drain Assembly Included
No
Pop-Up Included
No
Sidesplash
None
Sidesplash Included
No
Sink Included
Yes

Characteristics and Features

Drain Placement
Rear
Faucet Holes
3
Installation Type
Drop In, Integrated
Material
Cultured Marble
Number Of Basins
1
Overflow
Yes
Sink Material
Cultured Marble
Sink Shape
Oval
Theme
Traditional

Characteristics and Features

Drain Placement
Rear
Faucet Holes
3
Installation Type
Drop In, Integrated
Material
Cultured Marble
Number Of Basins
1
Overflow
Yes
Sink Material
Cultured Marble
Sink Shape
Oval
Theme
Traditional

Warranty and Product Information

ADA
No
ANSI Certification
Z124.3
Certifications
UPC, ANSI, CSA
Manufacturer Warranty
5 Year Limited
WaterSense Certified
No

Warranty and Product Information

ADA
No
ANSI Certification
Z124.3
Certifications
UPC, ANSI, CSA
Manufacturer Warranty
5 Year Limited
WaterSense Certified
No
