Item # bci3917305

Delta Windemere 60" Wide Sliding Semi Frameless Shower Door with Rain Glass

Model: SD3172317
|
Item: bci3917305

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

The Windemere Collection offers a traditional design with sculpted curves to bring a whimsical touch to your shower or bathtub. The Windemere handle features a convenient place to store your towels. Paired with the contemporary top track, the classic Windemere handle provides an uncomplicated, sleek and modern feel that’s bold and geometric for a clean and simple design.

Delta SD3172317 Features:

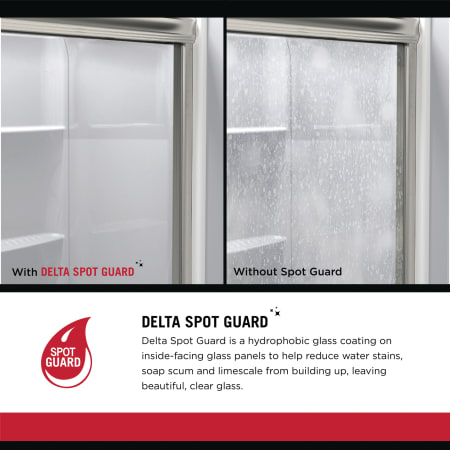

  • Delta sliding glass shower panels feature Delta Spot Guard which resists water spots, hardwater stains, soap scum, and limescale buildup with easier cleaning

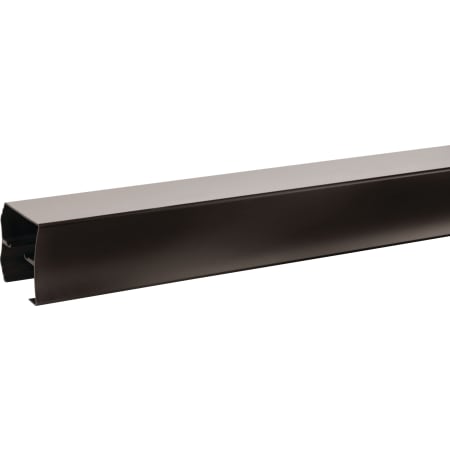

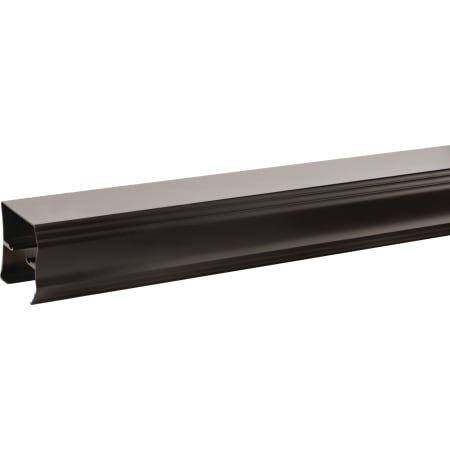

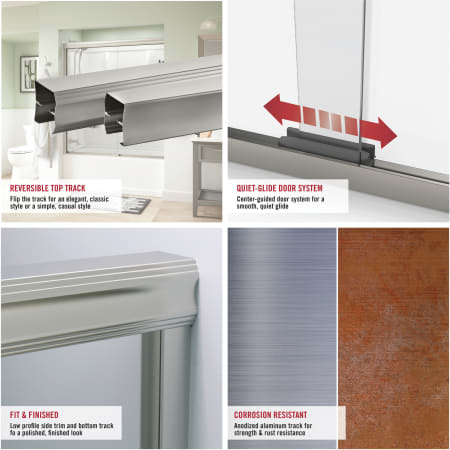

  • Reversible aluminum shower door top track with defined metal side trim pieces

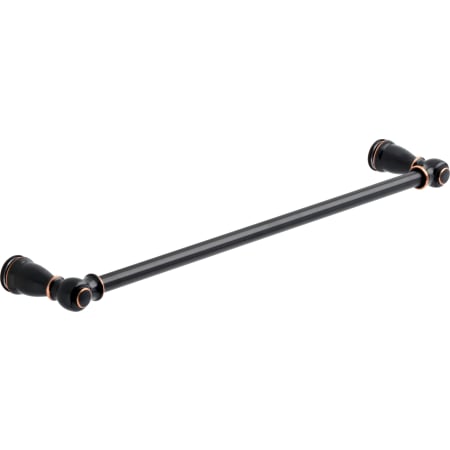

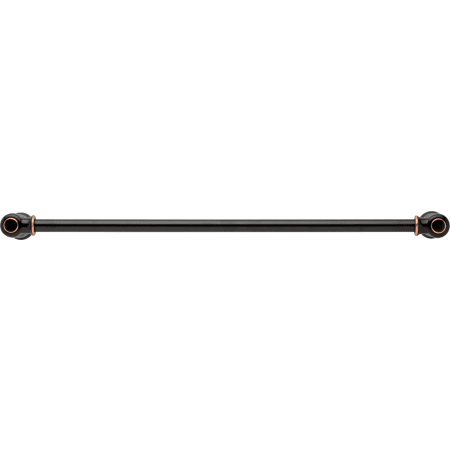

  • 20" sliding shower door handle functions as a towel bar with space for a folded bath towel or two hand towels

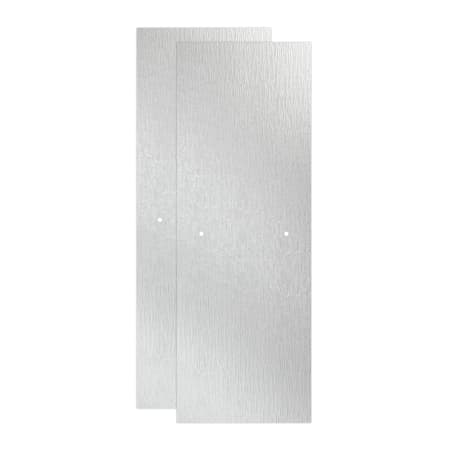

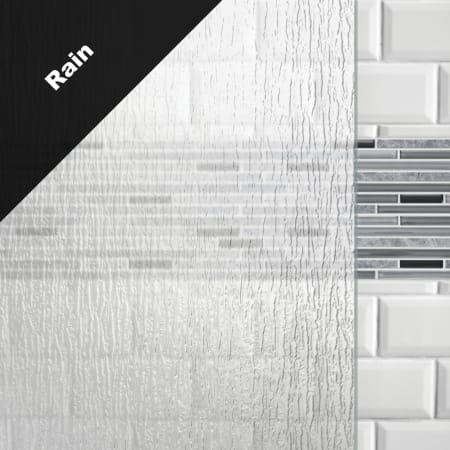

  • Glass panels feature a textured surface that resembles water running down the panels
  • Windemere sliding shower door handles feature a smooth rounded top and flared base
  • Track features powder coated dark brown aluminum finish, and handle features a chocolate oil rubbed bronze with copper highlights

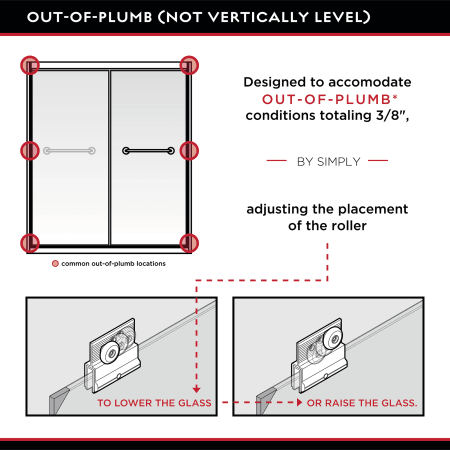

  • Traditional sliding shower door designed to accommodate out-of-plumb (uneven, not vertically level) conditions totaling 3/8"
  • Backed by a 5-year limited warranty
  • Full by-pass (both panels slide) design allows entry from left or right
  • Bottom track's center-guided door system provides smooth and quiet operation and side grab bumpers hold glass panels in place

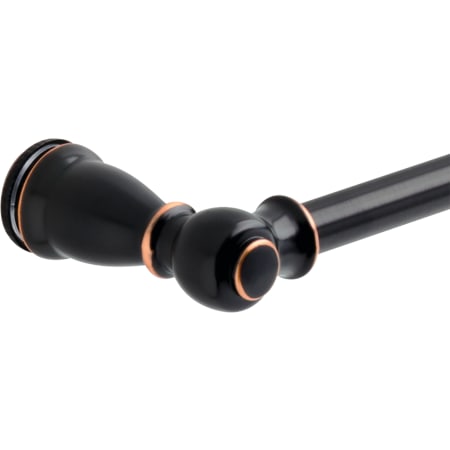

  • Sliding shower door handles created with high quality die-cast zinc posts and a stainless steel bar
  • Detailed step-by-step instructions and rollers (4) included with glass package
  • This custom shower door consists of three separate components: Bronze Traditional Shower Door Track, Rain 1/4" Glass Shower Panels, and Bronze Windemere Handles
  • Top and bottom tracks must be cut according to measurements needed for proper door installation

Delta SD3172317 Specifications:

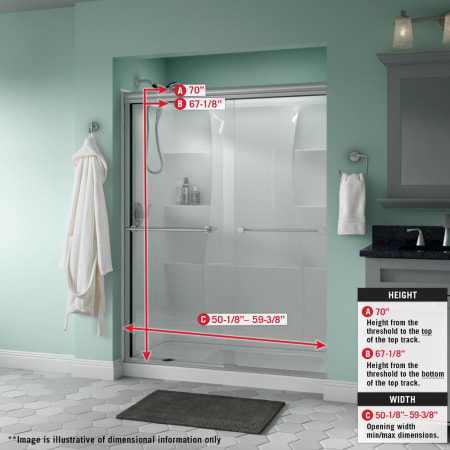

  • Overall Height: 70" (bottom to top of door fixture)
  • Overall Width: 59-3/8" (left to right of door fixture)
  • Enclosure Width Range: 50-1/8" to 59-3/8" (range of enclosure sizes door will accommodate)
  • Maximum Door Opening: 29-3/4" (assuming track is not trimmed)
  • Standard 1/4" thick ANSI certified tempered safety glass shower panels
Additional Delta Links

Dimensions and Measurements

Door Width
29.7638 in.
Glass Thickness
0.25 in.
Height
70 in.
Maximum Width
59.375 in.
Minimum Width
50.125 in.
Nominal Width
60 in.
Product Weight
96.3419 lbs.
Width
59.375 in.

Dimensions and Measurements

Door Width
29.7638 in.
Glass Thickness
0.25 in.
Height
70 in.
Maximum Width
59.375 in.
Minimum Width
50.125 in.
Nominal Width
60 in.
Product Weight
96.3419 lbs.
Width
59.375 in.

Included Components

Installation Hardware Included
Yes
Towel Bar Included
Yes

Included Components

Installation Hardware Included
Yes
Towel Bar Included
Yes

Characteristics and Features

Configuration
Shower Door
Door Type
Sliding, Bypass
Frame Type
Semi Frameless
Glass Features
Patterned Glass
Installation Type
Three Wall Alcove
Material
Zinc, Aluminum, Tempered Glass
Number Of Doors
2
Theme
Traditional

Characteristics and Features

Configuration
Shower Door
Door Type
Sliding, Bypass
Frame Type
Semi Frameless
Glass Features
Patterned Glass
Installation Type
Three Wall Alcove
Material
Zinc, Aluminum, Tempered Glass
Number Of Doors
2
Theme
Traditional

Warranty and Product Information

Certifications
UPC
Collection
Windemere
Country Of Origin
China
Manufacturer Warranty
5 Year Limited

Warranty and Product Information

Certifications
UPC
Collection
Windemere
Country Of Origin
China
Manufacturer Warranty
5 Year Limited
