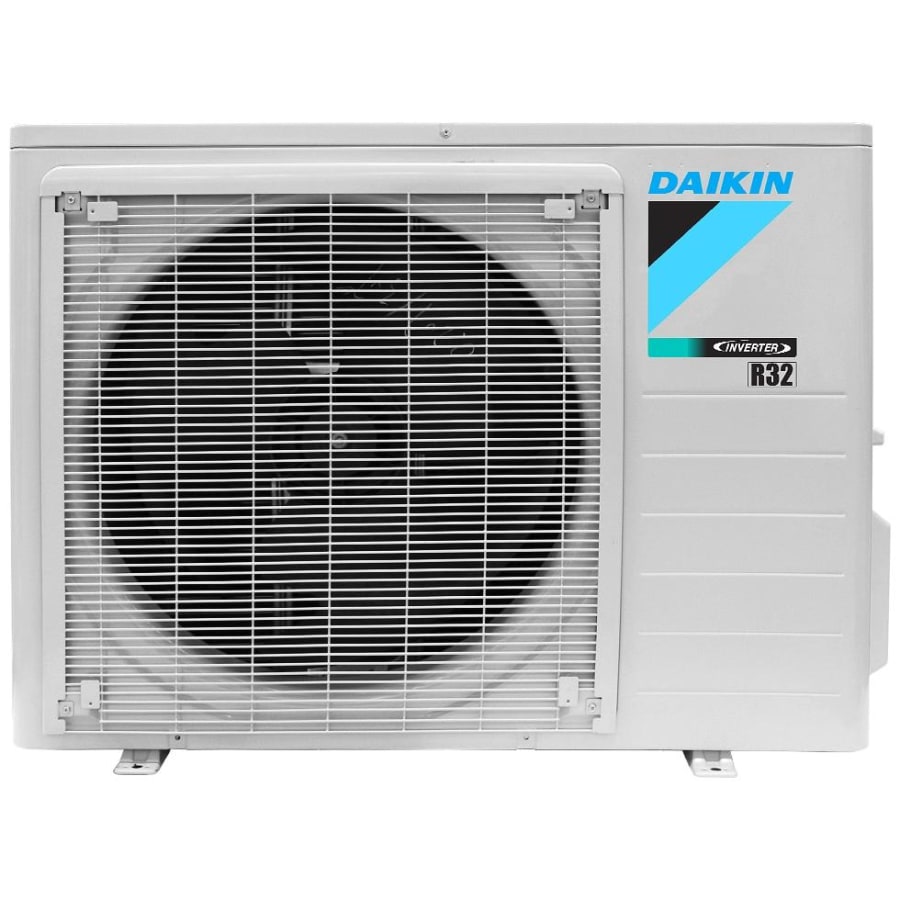

Daikin Oterra Series 24,000 BTU Cooling / 21 SEER2 One Zone Mini Split Condenser Unit
Model: RKF24AXVJU|Item: bci4878632
from theOterra Collection
$1,854.00
Special Order
Details
Product Information:
- Inverter Compressor
- Efficiently adjusts the compressor speed to maintain a consistent temperature, reducing energy consumption and ensuring quiet operation. Anti-Corrosion Treatment on Heat Exchanger
- The heat exchanger is coated with a special anti-corrosion treatment, resisting salt damage and atmospheric corrosion for a longer lifespan. Quick Warming Function
- Prevents heat pumps from pumping liquid refrigerant in cold temperatures. Automatic Defrosting
- The defrost sensor detects when the outdoor heat exchanger needs defrosting and performs it automatically, ensuring optimal heating performance.
Specifications:
- Cooling BTU Capacity: 24,000
- Zone Capacity: 1
- Sound Level: 34 to 55 dB
- Low Ambient Heating: Yes
- Minimum Outdoor Temperature for Cooling: 50 F
- Liquid Line Connection Size: 1/4" Inch
- Gas Line Connection Size: 5/8" Inch
- Depth: 13-3/16"
- Height: 27-7/16"
- Width: 36-5/8"
- Recommended Breaker Size: 20 A
- Amperage: 20 A
- Voltage: 208, 230V
Product Assurance:
- Certifications:
- AHRI
- ETL
- Performance and Efficiency:
- SEER2: 20
- Manufacturer Warranty: 5 Year Limited
Required Components:
- Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
- Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
- Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
- Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
Dimensions and Measurements
Depth (Condenser) | 13.19 in. |
Gas Connection | 5/8" |
Height (Condenser) | 27.41 in. |
Liquid Line Connection Size | 1/4" |
Maximum Line Set Length | 98.5 ft. |
Product Weight | 101 lbs. |
Width (Condenser) | 36.63 in. |
Dimensions and Measurements
Depth (Condenser) | 13.19 in. |
Gas Connection | 5/8" |
Height (Condenser) | 27.41 in. |
Liquid Line Connection Size | 1/4" |
Maximum Line Set Length | 98.5 ft. |
Product Weight | 101 lbs. |
Width (Condenser) | 36.63 in. |
Included Components
Heater Included | No |
Included Components
Heater Included | No |
Characteristics and Features
Installation Type | Mini Split |
Low Ambient Heating | Yes |
Refrigerant | R-32 |
Characteristics and Features
Installation Type | Mini Split |
Low Ambient Heating | Yes |
Refrigerant | R-32 |
Electrical and Operational Information
Amperage | 20 |
Breaker Needs | 20 Amps |
Cooling BTU Capacity | 24000 |
dBA (High) | 55 |
dBA (Low) | 34 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Minimum Outdoor Temperature for Cooling | 50 °F |
Voltage | 208, 230 |
Zone Capacity | 1 |
Electrical and Operational Information
Amperage | 20 |
Breaker Needs | 20 Amps |
Cooling BTU Capacity | 24000 |
dBA (High) | 55 |
dBA (Low) | 34 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Minimum Outdoor Temperature for Cooling | 50 °F |
Voltage | 208, 230 |
Zone Capacity | 1 |
Warranty and Product Information
Certifications | AHRI, ETL |
Collection | Oterra |
EER2 | 12.2 |
Energy Star | No |
Manufacturer Warranty | 5 Year Limited |
SEER2 | 20 |
Title 20 Compliant | Yes |
Warranty and Product Information
Certifications | AHRI, ETL |
Collection | Oterra |
EER2 | 12.2 |
Energy Star | No |
Manufacturer Warranty | 5 Year Limited |
SEER2 | 20 |
Title 20 Compliant | Yes |
