Item # bci3488091

The Cavilock CL406A0029 has been discontinued

** See similar or replacement items below **

Cavilock
Cavilock-CL406A-PA-ML-34-Application View
Cavilock-CL406A-PA-ML-34-Passage in Bright Chrome
Cavilock-CL406A-PA-ML-34-Passage in Satin Chrome
Cavilock-CL406A-PA-ML-34-Passage in Oil Rubbed Bronze
Cavilock-CL406A-PA-ML-34-Passage in Satin Nickel
This is an Educational video on the features of the CL400 ADA and how it fulfills all ADA Compliance Standards.
Cavilock-CL406A-PA-ML-34-Application View
Cavilock-CL406A-PA-ML-34-Passage in Bright Chrome
Cavilock-CL406A-PA-ML-34-Passage in Satin Chrome
Cavilock-CL406A-PA-ML-34-Passage in Oil Rubbed Bronze
Cavilock-CL406A-PA-ML-34-Passage in Satin Nickel
This is an Educational video on the features of the CL400 ADA and how it fulfills all ADA Compliance Standards.
Item # bci3488091

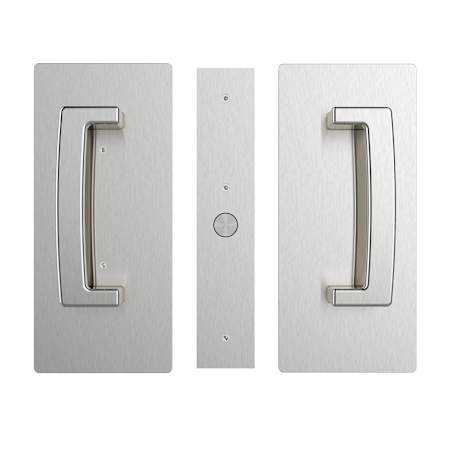

Cavilock CL400 ADA Passage Pocket Door Set with Magnetic Latch for 1-3/4 Inch Door Thickness

Model: CL406A0029
|
Item: bci3488091

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Features:

  • All metal construction designed for lasting use
  • Reversible for left or right handed pocket doors
  • Configured with a magnetic latch
  • Pull handle is easy to use with minimal pressure
  • Includes all necessary mounting hardware and instructions
  • Complies with standards of the Americans with Disabilities Act (ADA)
  • Cavilock offers a 5 Year Limited Warranty to the original user

Key Product Attributes:

    • Pocket Door Passage Function: CaviLock passage pocket door pulls have no locking mechanism and are perfect for sliding doors where no locking is required.
    • Plunger Action Magnetic Latch: This innovative technology utilizes magnetism by incorporating a powerful neodymium magnet into the strike plate which pulls a plunger from the body of the pocket pull when the door is closed. This patented plunger action magnetic latch prevents roll back and ensures your door stays in place with a positive hold.

Specifications:

  • Door Thickness: 1-3/4"
  • Handing: Reversible, Left or Right
  • Height: 7"
  • Width: 3-1/4"
  • Cutout Height: 6-15/16"
  • Cutout Depth: 2-1/4"
  • Handle Height: 4-3/8"
  • Handle Projection: 1-7/8"
  • Material: Brass, Zinc

Product Variations:

  • CL406A-PA-ML-34 (This Model): Passage with Magnetic Latch for 1-3/4" Door Thickness
  • CL406A-PA-ML-38: Passage with Magnetic Latch for 1-3/8" Door Thickness
Additional Cavilock Links

Dimensions and Measurements

Cutout Depth
2.21875 in.
Cutout Height
5.875 in.
Door Thickness
1-3/4"
Handle Height
4.375 in.
Handle Projection
1.875 in.
Height
7 in.
Product Weight
3 lbs.
Width
3.25 in.

Dimensions and Measurements

Cutout Depth
2.21875 in.
Cutout Height
5.875 in.
Door Thickness
1-3/4"
Handle Height
4.375 in.
Handle Projection
1.875 in.
Height
7 in.
Product Weight
3 lbs.
Width
3.25 in.

Characteristics and Features

Function
Passage
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Material
Brass, Zinc
Panic Proof
No
Shape
Rectangular
Theme
Modern

Characteristics and Features

Function
Passage
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Material
Brass, Zinc
Panic Proof
No
Shape
Rectangular
Theme
Modern

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
No, Yes
Fire Rated
No
Manufacturer Warranty
5 Year Limited
Series
CL400 ADA

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
No, Yes
Fire Rated
No
Manufacturer Warranty
5 Year Limited
Series
CL400 ADA
