The Broan AER80CCTK has been discontinued
** See similar or replacement items below **

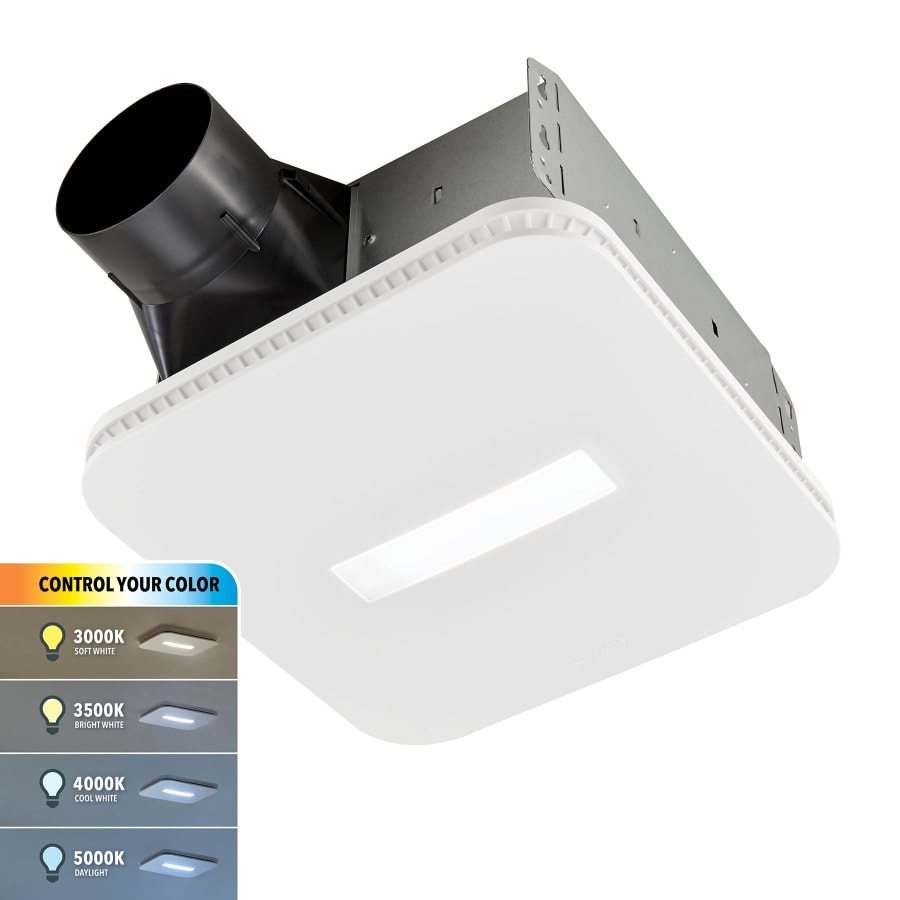

Broan Roomside 80 CFM 0.7 Sone Ceiling Mounted Energy Star Certified Bath Fan with CleanCover™ Grille and FoldAway™ Mounting Ears
Model: AER80CCTK|Item: bci4621080
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details

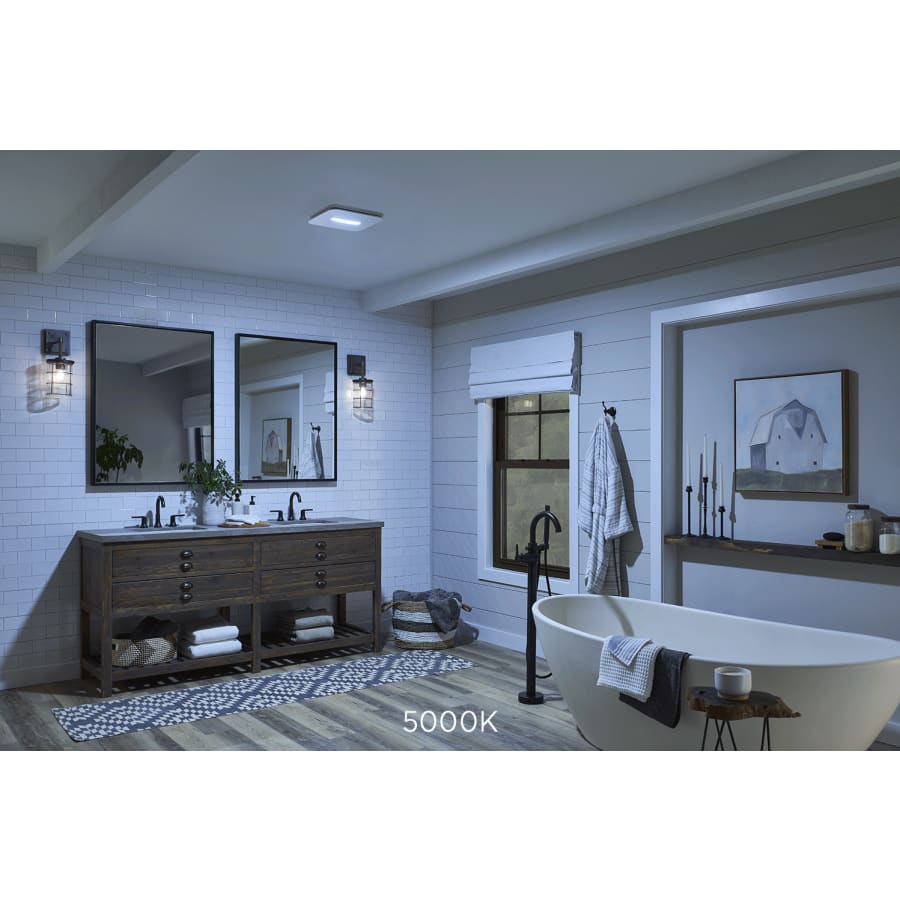

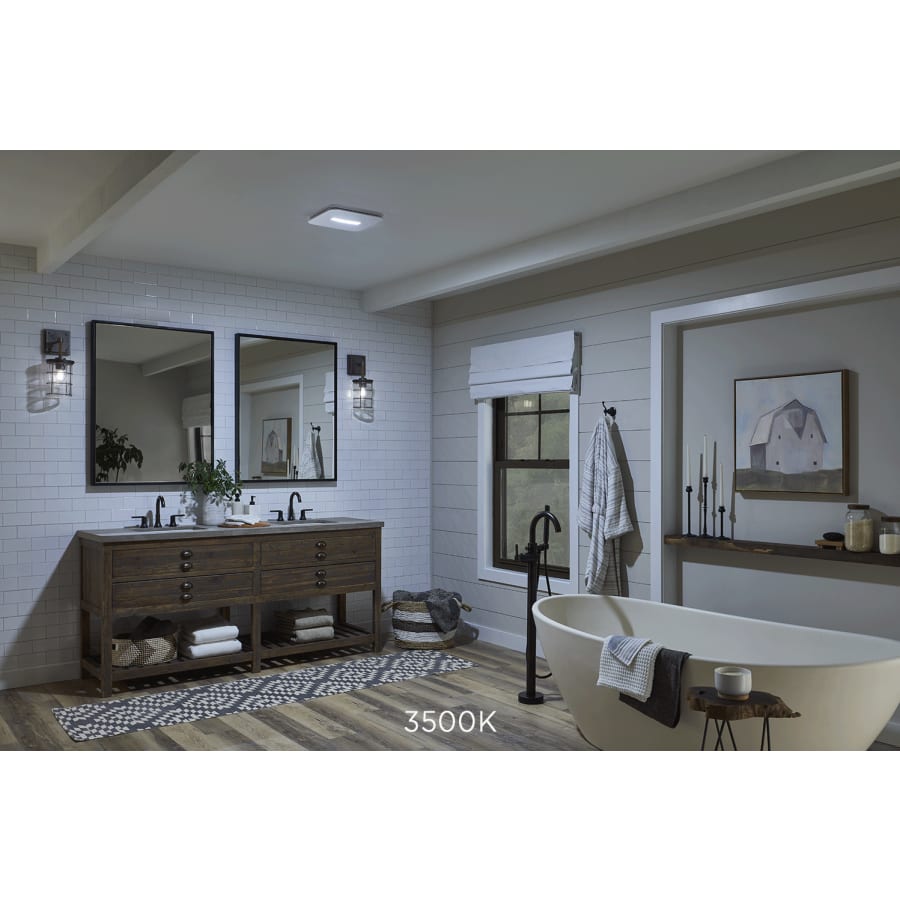

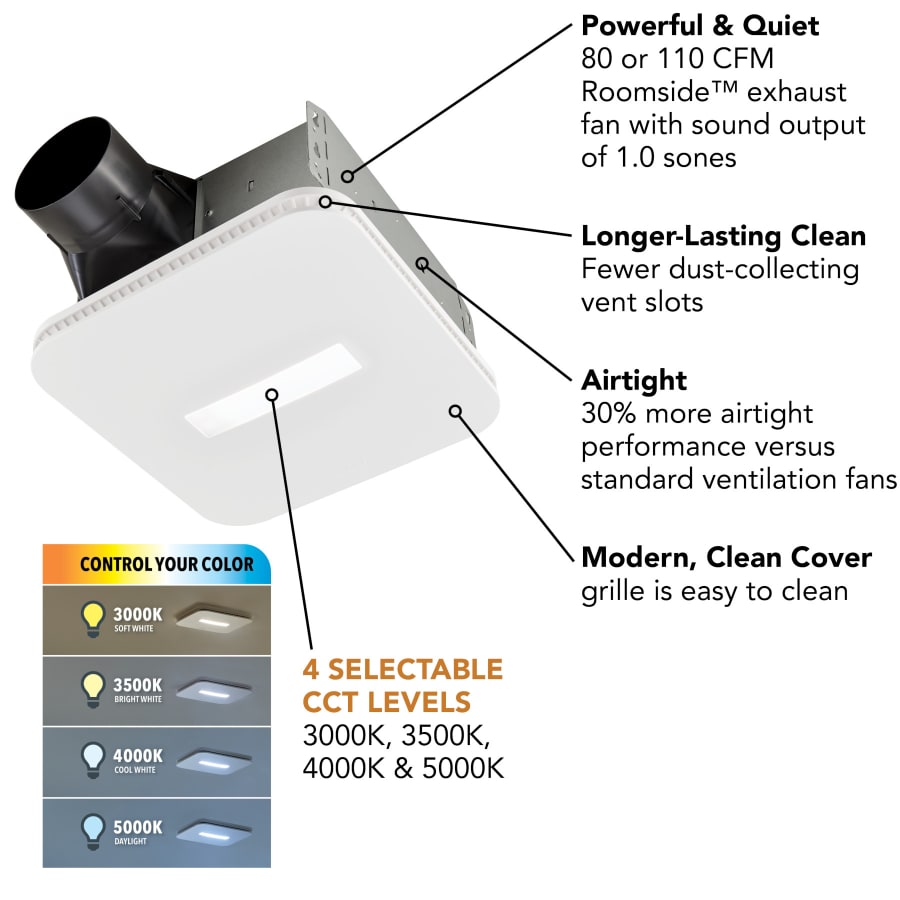

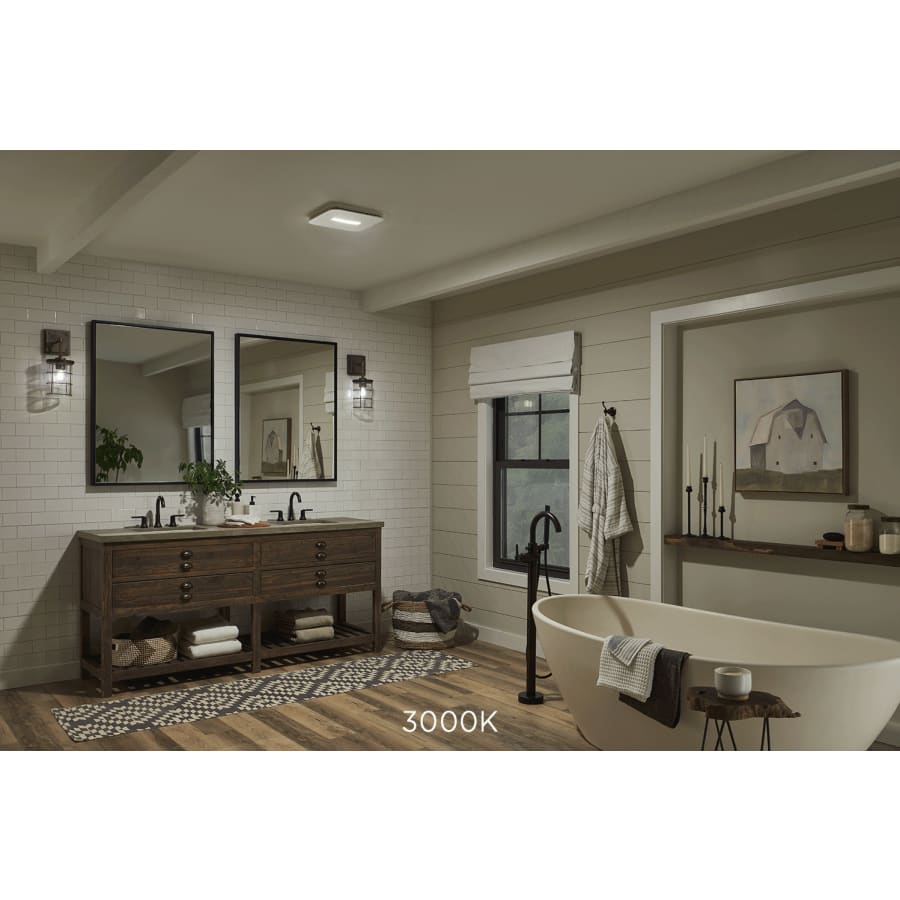

The Broan® Roomside Series Ventilation fan with CleanCover™ grille and Selectable CCT LED light offers adjustable color temperature that allows you to control the mood of your space. From a warm 3000K LED to a crisp 5000K LED you can match your vanity lights or create the look you desire; adjustability is right at your fingertips. The CleanCover™ grille clears the air with a low profile, streamline design. Designed for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct™ connector and FoldAway™ mounting ears make it flexible to almost any installation challenge.
Features:
- Customize your space with 4 selectable light settings with the flip of a switch, automatically saving your last setting
- 80 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.7 Sones for quiet operation
- Easy installation from the room side, which makes it possible to retrofit to spaces with no attic access
- CleanCover™ grille stays cleaner longer with fewer vent slots to collect dust
- FoldAway™ mounting ears precisely positioned the fan for new construction applications or fold flat for retrofit installations with no attic access
- EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
- Energy Star® Certified
- 4 in. duct connector with damper
- Fits in 2" x 8" ceiling construction
- UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
- UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
Product Technologies:
- TrueSeal™: Damper technology that reduces air leakage up to 50%, the tightest seal against backdrafts
Specifications:
- CFM: 80
- Sones: 0.7
- Bulb Type: LED
- Duct Size: 4" Round
- Grille Width: 12"
- Grille Length: 12"
- Housing Width: 10"
- Housing Length: 5-3/4"
- Housing Depth: 9-1/4"
- Amperage: 0.3A
- Voltage: 120V
- Wattage: 27W
- Width: 12-1/4"
- Depth: 12-1/4"
Dimensions and Measurements
CFM | 80 |
Depth | 12.25 in. |
Duct Size | 4" Round |
Grille Length | 12.25 in. |
Grille Width | 12.25 in. |
Housing Depth | 9.25 in. |
Housing Length | 5.75 in. |
Housing Width | 10 in. |
Length | 12.25 in. |
Max Ventilation Area | 75 sq. ft. |
Product Weight | 9.2 lbs. |
Width | 12.25 in. |
Dimensions and Measurements
CFM | 80 |
Depth | 12.25 in. |
Duct Size | 4" Round |
Grille Length | 12.25 in. |
Grille Width | 12.25 in. |
Housing Depth | 9.25 in. |
Housing Length | 5.75 in. |
Housing Width | 10 in. |
Length | 12.25 in. |
Max Ventilation Area | 75 sq. ft. |
Product Weight | 9.2 lbs. |
Width | 12.25 in. |
Included Components
Bulb Included | Yes |
Fan Only | No |
Heater Included | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Bulb Included | Yes |
Fan Only | No |
Heater Included | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Bulb Type | LED |
Decorative | Yes |
Duct Discharge | Horizontal, Vertical |
Fan Type | Bath Fan |
Grille Shape | Square |
Housing Shape | Rectangle |
Humidity Sensing | No |
Material | Plastic |
Mount Type | Ceiling |
Night Light | No |
Number of Bulbs | 1 |
Smart Home | No |
Theme | Modern |
Characteristics and Features
Bulb Type | LED |
Decorative | Yes |
Duct Discharge | Horizontal, Vertical |
Fan Type | Bath Fan |
Grille Shape | Square |
Housing Shape | Rectangle |
Humidity Sensing | No |
Material | Plastic |
Mount Type | Ceiling |
Night Light | No |
Number of Bulbs | 1 |
Smart Home | No |
Theme | Modern |
Electrical and Operational Information
Amperage | 0.3 |
Frequency | 60 Hertz |
Power Source | Plug-In |
Sones | 0.7 |
Speeds | 1 |
Voltage | 120 |
Wattage | 26.9 |
Electrical and Operational Information
Amperage | 0.3 |
Frequency | 60 Hertz |
Power Source | Plug-In |
Sones | 0.7 |
Speeds | 1 |
Voltage | 120 |
Wattage | 26.9 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Collection | Roomside |
Country Of Origin | USA |
Energy Star | Yes |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Collection | Roomside |
Country Of Origin | USA |
Energy Star | Yes |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
