The Broan 761BN has been discontinued
** See similar or replacement items below **

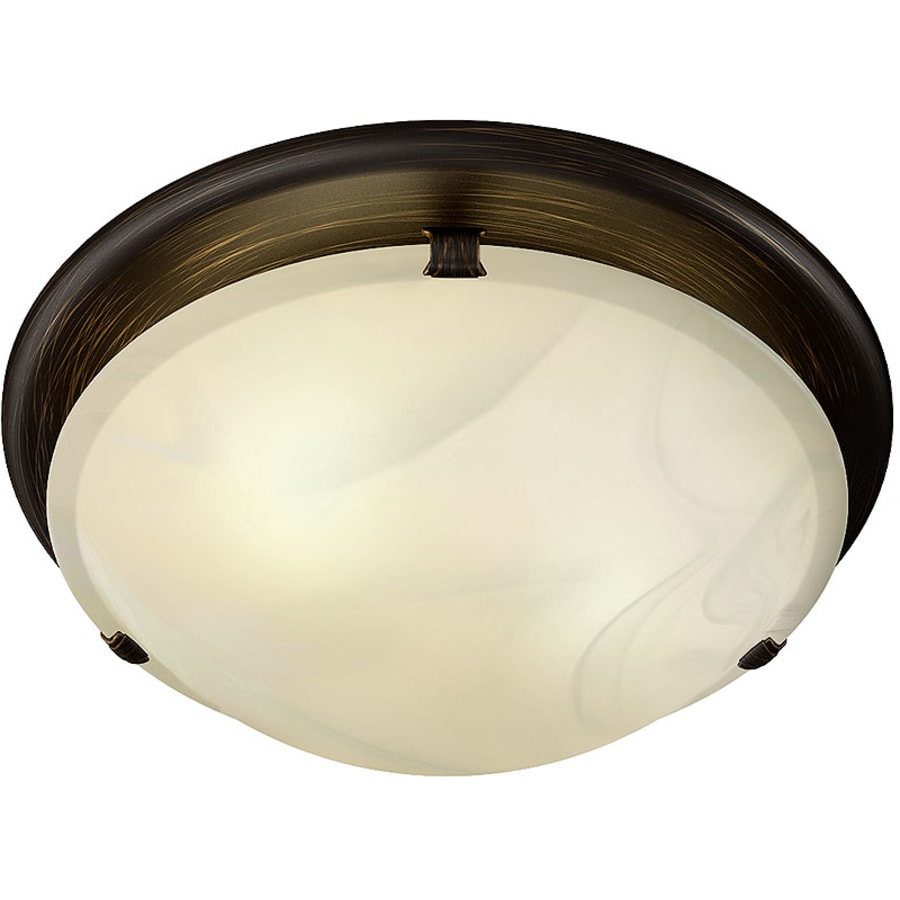

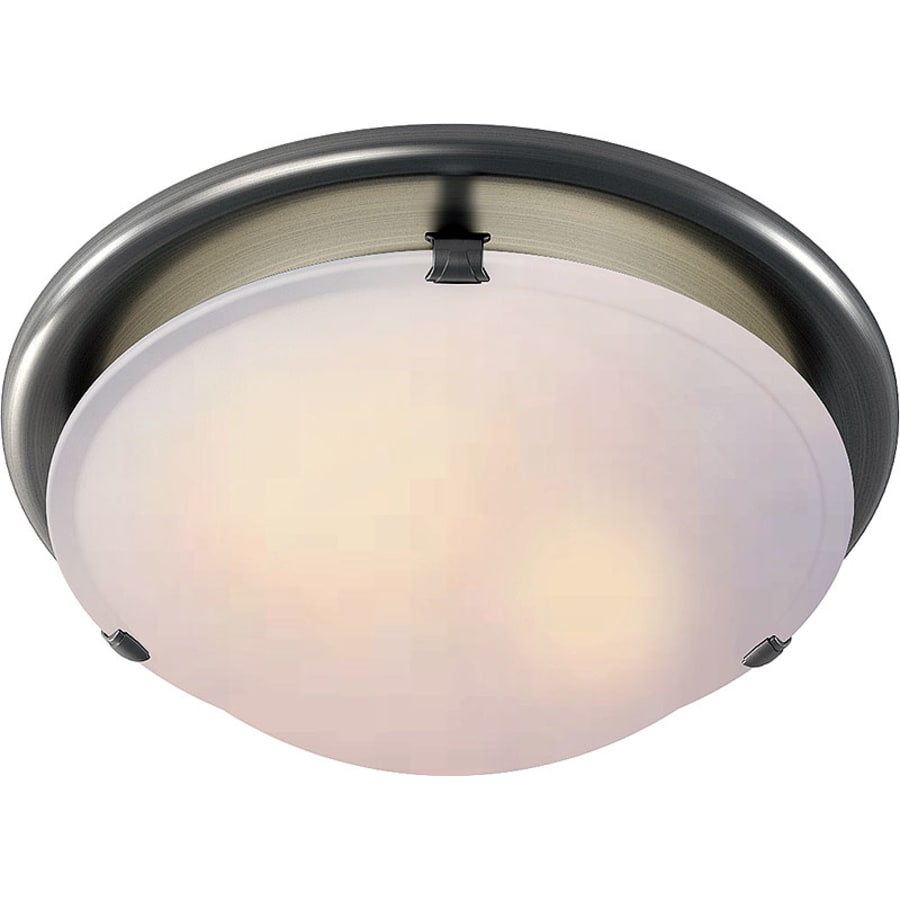

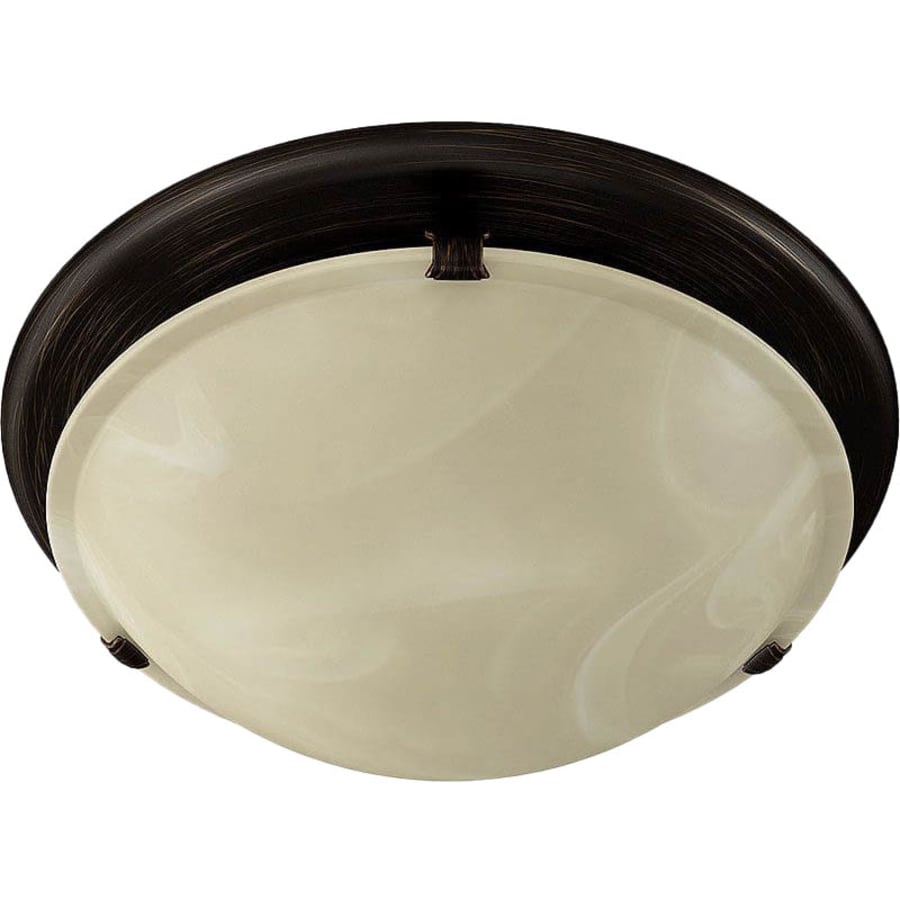

Broan 80 CFM 2.5 Sone Ceiling Mounted HVI Certified Decorative Bath Fan with Light and Alabaster Glass Shade
Model: 761BN|Item: bci1159205
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- Features a powerful 80 CFM permanently lubricated and sealed motor that's specifically designed for continuous use applications.
- Includes a finely crafted decorative lighting fixture that complements a variety of interior décor.
- Compact housing mounts directly to inboard joists, making retrofit or new installation applications straight-forward and simple.
- Equipped with 60 watt incandescent lighting ensuring your bathroom is brightly lit without the need for additional fixtures (bulbs sold separately).
- Compatible with a number of Broan multi-function and time control wall switches (sold separately).
- Not recommended for use over bathtubs and showers.
Product Technologies:
Permanently Lubricated: This fan features a motor that is permanently lubricated. The result is a product with a long service life and lower maintenance costs.
Incandescent Lighting: We know that a comfortable and well-lit space is important to you as your prepare for your day. Illuminate your bathroom with the warm light of an incandescent bulb.
Mid Sones: We know that comfort and ambience matter in your bathroom. This fan produces 2.5 sones of sound output, keeping the noise in your bathroom at a reasonable level.
Low CFM Capacity: This fan has an efficient 80 CFM (cubic feet per minute) of clearing capacity designed for smaller bathrooms. Controlling humidity in your bathroom extends the life of your décor and makes for a more hospitable space to prepare for the day ahead.
Specifications:
- CFM: 80
- Sones: 2.5
- Duct Size: 4 Inch Round
- Grille Diameter: 13.25
- Lighting Type: Incandescent (bulbs not included)
- HVI Certified: Yes
- UL Listed: Yes
- Housing Length: 8-1/4"
- Housing Width: 8"
- Housing Depth: 5-3/4"
Manufacturer Resources
Specification SheetInstallation SheetInstallation ManualProduct SpecificationsIndoor Air Quality GraphicDimensions and Measurements
CFM | 80 |
CFM (High) | 80 |
Duct Size | 4" Round |
Grille Diameter | 13.25 in. |
Housing Depth | 5.75 in. |
Housing Length | 8.25 in. |
Housing Width | 8 in. |
Max Ventilation Area | 75 sq. ft. |
Product Weight | 12 lbs. |
Dimensions and Measurements
CFM | 80 |
CFM (High) | 80 |
Duct Size | 4" Round |
Grille Diameter | 13.25 in. |
Housing Depth | 5.75 in. |
Housing Length | 8.25 in. |
Housing Width | 8 in. |
Max Ventilation Area | 75 sq. ft. |
Product Weight | 12 lbs. |
Included Components
Heater Included | No |
Light Included | Yes |
Motion Sensor | No |
Included Components
Heater Included | No |
Light Included | Yes |
Motion Sensor | No |
Characteristics and Features
Bulb Base | Candelabra (E12) |
Bulb Type | Incandescent |
Decorative | Yes |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Function | Bath Fan, Light |
Grille Finish | Bronze Tones, Nickel Tones, Whites |
Humidity Sensing | No |
Material | Glass, Metal |
Mount Type | Ceiling |
Night Light | No |
Number of Bulbs | 2 |
Characteristics and Features
Bulb Base | Candelabra (E12) |
Bulb Type | Incandescent |
Decorative | Yes |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Function | Bath Fan, Light |
Grille Finish | Bronze Tones, Nickel Tones, Whites |
Humidity Sensing | No |
Material | Glass, Metal |
Mount Type | Ceiling |
Night Light | No |
Number of Bulbs | 2 |
Electrical and Operational Information
Amperage | 1.6 |
Sones | 2.5 |
Speeds | 1 |
Voltage | 120 |
Watts Per Bulb | 60 |
Electrical and Operational Information
Amperage | 1.6 |
Sones | 2.5 |
Speeds | 1 |
Voltage | 120 |
Watts Per Bulb | 60 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI, UL |
Collection | Decorative |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI, UL |
Collection | Decorative |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
