The Broan 100HL has been discontinued
** See similar or replacement items below **

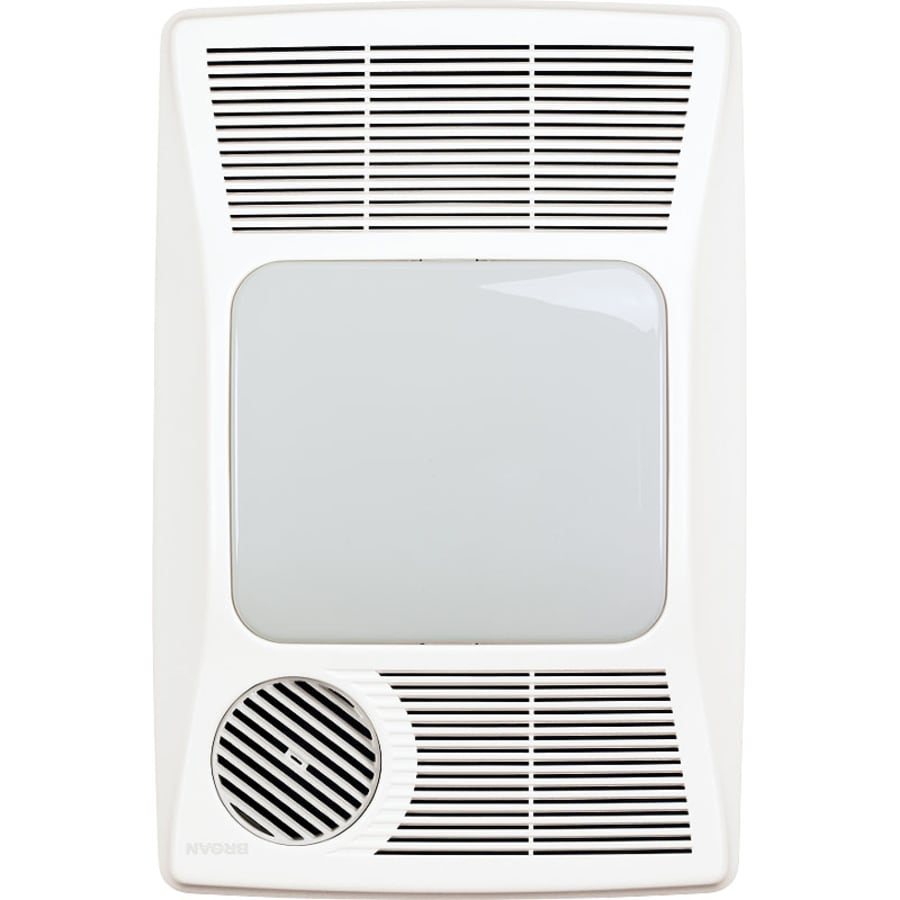

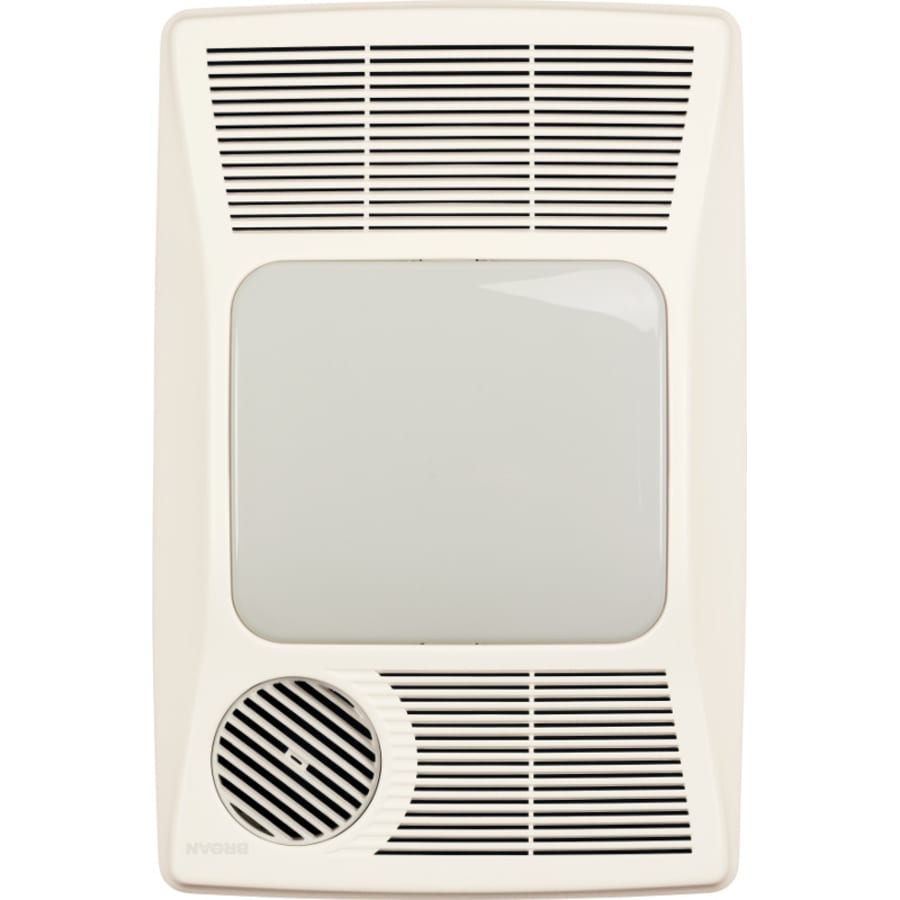

Broan 100 CFM 2 Sone Ceiling Mounted HVI Certified Bath Fan with Incandescent Light
Model: 100HL|Item: bci806430
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- Features a powerful 100 CFM permanently lubricated and sealed motor that's specifically designed for continuous use applications.
- Includes a 1500 Watt high-output heater, keeping your bathroom comfortable and warm, even in the coldest seasons.
- Mounts directly to joists via adjustable mounting brackets with keyhole slots which makes for an intuitive, straight-forward installation.
- Equipped with 100 watt incandescent lighting, ensuring your bathroom is brightly lit without the need for additional fixtures (bulbs sold separately).
- Compatible with a number of Broan multi-function and time control wall switches (sold separately).
- Not recommended for use over bathtubs and showers.
Product Technologies:
Heater Included: Stepping out of your shower or tub into a cold bathroom can be a shocking experience. Keep your bathroom area comfortably temperate with the built-in heater.
Easy Installation: Convenient hanger bars secure into position after connecting the unit to rafters, making installation a snap. Your new fan is ready for use almost as fast as you can turn the switch.
Incandescent Lighting: We know that a comfortable and well-lit space is important to you as your prepare for your day. Illuminate your bathroom with the warm light of an incandescent bulb.
Mid Sones: We know that comfort and ambience matter in your bathroom. This fan produces 2 sones of sound output, keeping the noise in your bathroom at a reasonable level.
Mid CFM Capacity: This fan has an ample 100 CFM (cubic feet per minute) of clearing capacity designed for medium sized bathrooms. Controlling humidity in your bathroom extends the life of your décor and makes for a more hospitable space to prepare for the day ahead.
Specifications:
- CFM: 100
- Sones: 2
- Duct Size: 4 Inch Round
- Grill Width: 17.5 Inches
- Grill Length: 11.5 Inches
- Lighting Type: Incandescent (bulb not included)
- HVI Certified: Yes
- UL Listed: No
- Housing Length: 16"
- Housing Width: 10-1/4"
- Housing Depth: 5-7/8"
Product Variations:
- 100HFL: Fluorescent Lighting
- 100HL (This Model): Incandescent Lighting
Manufacturer Resources
Installation GuideInstallation ManualSpecification SheetProduct SpecificationsIndoor Air Quality GraphicDimensions and Measurements
CFM | 100 |
CFM (High) | 100 |
Duct Size | 4" Round |
Grille Length | 11.5 in. |
Grille Width | 17.5 in. |
Housing Depth | 5.875 in. |
Housing Length | 16 in. |
Housing Width | 10.25 in. |
Max Ventilation Area | 90, 95 sq. ft. |
Product Weight | 15.6 lbs. |
Dimensions and Measurements
CFM | 100 |
CFM (High) | 100 |
Duct Size | 4" Round |
Grille Length | 11.5 in. |
Grille Width | 17.5 in. |
Housing Depth | 5.875 in. |
Housing Length | 16 in. |
Housing Width | 10.25 in. |
Max Ventilation Area | 90, 95 sq. ft. |
Product Weight | 15.6 lbs. |
Included Components
Heater Included | Yes |
Light Included | Yes |
Motion Sensor | No |
Included Components
Heater Included | Yes |
Light Included | Yes |
Motion Sensor | No |
Characteristics and Features
Bulb Base | Medium (E26) |
Bulb Type | Incandescent |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Function | Bath Fan, Heater, Light |
Grille Finish | Whites |
Humidity Sensing | No |
Material | Plastic |
Mount Type | Ceiling |
Night Light | No |
Number of Bulbs | 1 |
Characteristics and Features
Bulb Base | Medium (E26) |
Bulb Type | Incandescent |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Function | Bath Fan, Heater, Light |
Grille Finish | Whites |
Humidity Sensing | No |
Material | Plastic |
Mount Type | Ceiling |
Night Light | No |
Number of Bulbs | 1 |
Electrical and Operational Information
Amperage | 14.5 |
Sones | 2 |
Speeds | 1 |
Voltage | 120 |
Wattage | 70.2, 1500 |
Watts Per Bulb | 100 |
Electrical and Operational Information
Amperage | 14.5 |
Sones | 2 |
Speeds | 1 |
Voltage | 120 |
Wattage | 70.2, 1500 |
Watts Per Bulb | 100 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI |
Collection | Intermediate |
Energy Star | No |
Manufacturer Warranty | 1 Year Limited |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | HVI |
Collection | Intermediate |
Energy Star | No |
Manufacturer Warranty | 1 Year Limited |
