Bramec Bramec 60A Non-Fused Metal Disconnect Switch + 4' Electrical Whip (8 GA) Kit

Model: NFDWHIP-8
|
Item: bci4674280

$40.00
17 In Stock
    Free Shipping on orders over $49.00!
    Leaves the Warehouse in 2 to 5 business days
    -
    Return & Shipping Details

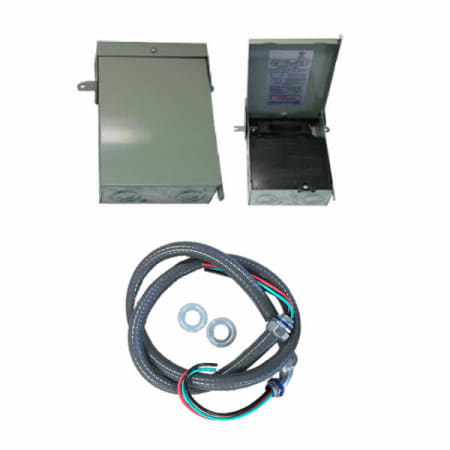

    This package includes the following items

    Details

    Unlike window air conditioners that plug into electrical receptacles, most mini split air conditioners are hard wired to the electrical fuse box. Generally, mini split outdoor condensers receive power from the electrical fuse box through an outdoor disconnect box. Electrical Whip is used from the disconnect box to the equipment. Always use a disconnect box when wiring mini split air conditioners - it's an important safety measure, and required by local code in many areas. In most cases the disconnect box should be located close enough to pull the power while standing at the outdoor condenser.

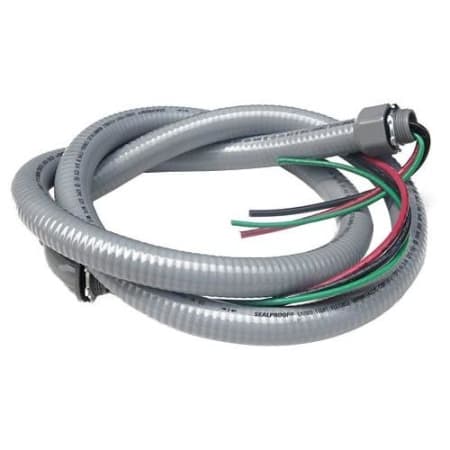

    3/4" x 4' - 8 Gauge THHN - 1 Straight Connector - 1 90° Connector - 60A Non-Fused Metal Disconnect for Mini Split Air Conditioners

    Features:

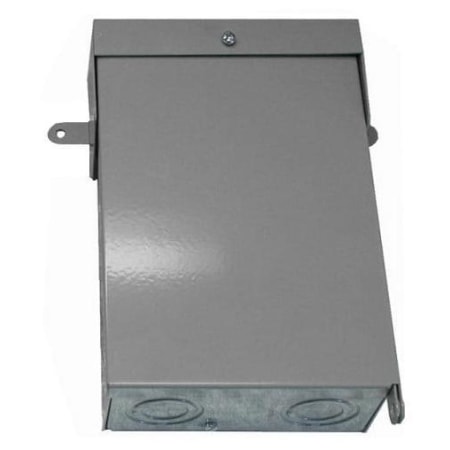

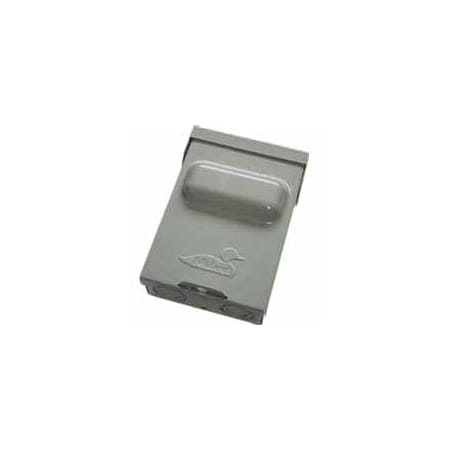

    • Type 3R Enclosure: The disconnect enclosure is rainproof, and designed for outdoor installation.
    • Important for Safety: Having a disconnect box within reach of the electrical equipment allows for fast power shut-off when necessary.
    • Color Coded Wiring: Whip wire is provided in 3 distinct colors for ease of hook-up.

    Component Specifications:


    18835

    Solid Brass

    • Width: 3/4"
    • Length: 48"
    • Depth: 3/4"
    • Product Weight: 2 lbs.


    20650

    Solid Brass

    • Width: 5-1/8"
    • Length: 8"
    • Depth: 2-3/4"
    • Amperage: 60A
    • Voltage: 240V
    • Product Weight: 5 lbs.
    Additional Bramec Links

    Manufacturer Resources

    Specification Sheet

    Dimensions and Measurements

    Depth
    0.75, 2.75 in.
    Length
    48, 8 in.
    Product Weight
    7 lbs.
    Width
    0.75, 5.125 in.

    Dimensions and Measurements

    Depth
    0.75, 2.75 in.
    Length
    48, 8 in.
    Product Weight
    7 lbs.
    Width
    0.75, 5.125 in.

    Electrical and Operational Information

    Amperage
    60
    Voltage
    240

    Electrical and Operational Information

    Amperage
    60
    Voltage
    240

    Warranty and Product Information

    Application
    Mini Split Air Conditioner Accessory

    Warranty and Product Information

    Application
    Mini Split Air Conditioner Accessory
