The American Standard 702B115.295 has been discontinued
** See similar or replacement items below **
Item # bci3879846

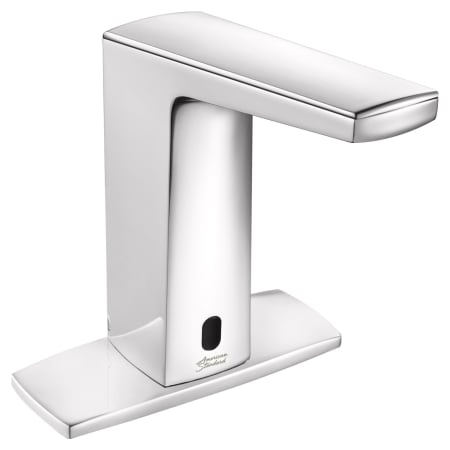

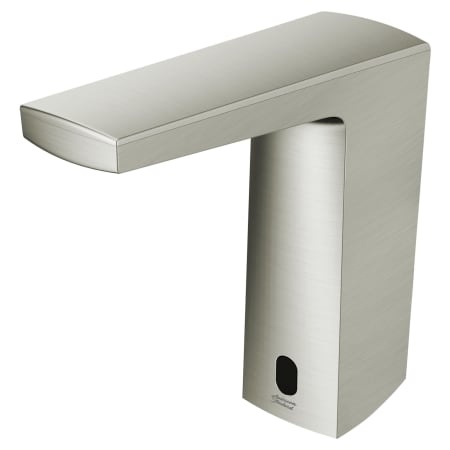

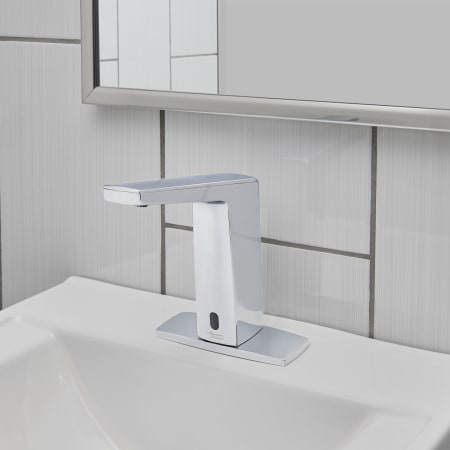

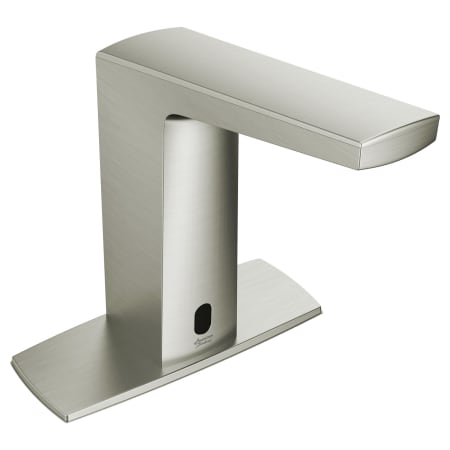

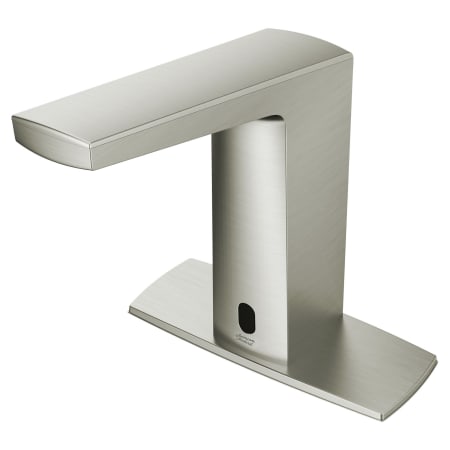

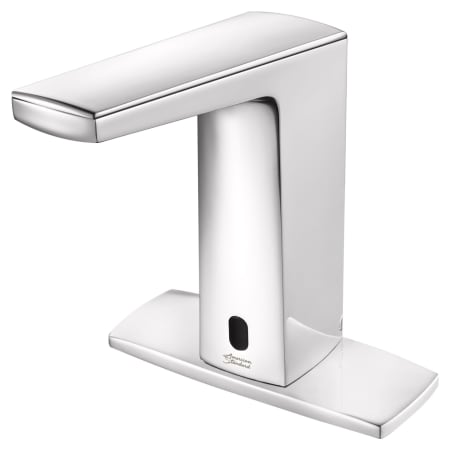

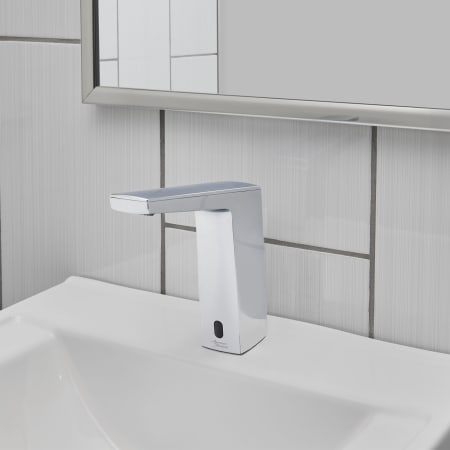

American Standard Paradigm 1.5 GPM Single Hole Bathroom Faucet with Selectronic Programable Sensor Technology - Less Power Supply
Model: 702B115.295|Item: bci3879846
from theParadigm Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
American Standard 702B.115 Features:
- Power kit must be purchased separately
- Touchless operation limits the spread of germs
- Single inlet for cold or tempered water

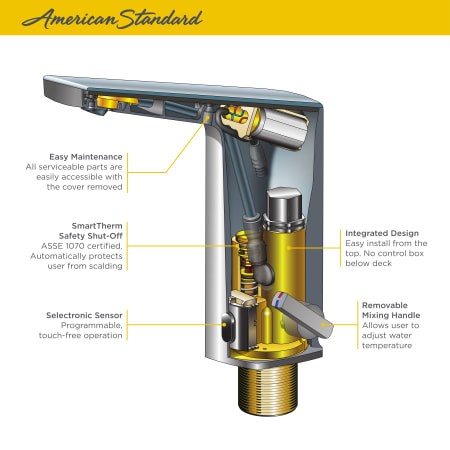

- Clean, integrated design with no control box below deck
- Easy installation and maintenance: Faucet installs from the top and all serviceable parts are easily accessible
- Auto purge: Periodically purges stagnant water
- Safety Timer: Automatically turns water off after 55 seconds
- Vandal resistant 1.5 gpm pressure compensating laminar flow outlet
- Optional deck plate for 4" or 8" centers available
- Lead free: Faucet contains ? 0.25% total lead content by weighted average
American Standard 702B.115 Technologies and Benefits:
- Selectronic®: Allows the user to program the motion sensor and includes an interchangeable power supply
American Standard 702B.115 Specifications:
- Height: 7-1/2" (deck to top of faucet)
- Spout Height: 6-5/8" (deck to spout outlet)
- Spout Reach: 5-1/2" (faucet base to spout outlet)
- Flow Rate: 1.5 gallons-per-minute
- Maximum Deck Thickness: 1-1/2" (cannot mount on thicker decks)
- Hole Size: 1-1/8"
- Faucet Holes: Single Hole
Dimensions and Measurements
Faucet Centers | 0 in. |
Faucet Hole Size | 1.125 in. |
Flow Rate (GPM) | 1.5 |
Height | 7.5 in. |
Max Deck Thickness | 1.5 in. |
Spout Height | 6.625 in. |
Spout Reach | 5.5 in. |
Water Connection | 3/8" |
Dimensions and Measurements
Faucet Centers | 0 in. |
Faucet Hole Size | 1.125 in. |
Flow Rate (GPM) | 1.5 |
Height | 7.5 in. |
Max Deck Thickness | 1.5 in. |
Spout Height | 6.625 in. |
Spout Reach | 5.5 in. |
Water Connection | 3/8" |
Included Components
Drain Assembly Included | No |
Escutcheon Included | No |
Handles Included | No |
Valve Included | Yes |
Included Components
Drain Assembly Included | No |
Escutcheon Included | No |
Handles Included | No |
Valve Included | Yes |
Characteristics and Features
Electronic | Yes |
Faucet Holes | 1 |
Faucet Type | Bathroom Sink Faucet |
Installation Type | Deck Mounted |
Material | Brass |
Mounting Type | Single Hole |
Spout Type | Fixed |
Theme | Modern |
Touch Faucet | No |
Touchless Faucet | Yes |
Valve Type | Solenoid |
Water Connection Type | Compression |
Waterfall Faucet | No |
Characteristics and Features
Electronic | Yes |
Faucet Holes | 1 |
Faucet Type | Bathroom Sink Faucet |
Installation Type | Deck Mounted |
Material | Brass |
Mounting Type | Single Hole |
Spout Type | Fixed |
Theme | Modern |
Touch Faucet | No |
Touchless Faucet | Yes |
Valve Type | Solenoid |
Water Connection Type | Compression |
Waterfall Faucet | No |
Electrical and Operational Information
Battery Type | Lithium |
Power Source | Battery |
Electrical and Operational Information
Battery Type | Lithium |
Power Source | Battery |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A117.1 |
Approved for Commercial Use | Yes |
ASME Code | A112.18.1 |
CA Drought Compliant | No |
Certifications | ANSI, ASME, CSA |
Collection | Paradigm |
Commercial Warranty | 5 Year Limited |
Country Of Origin | Mexico |
CSA Code | B125.1 |
Low Lead Compliant | Yes |
WaterSense Certified | Yes |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A117.1 |
Approved for Commercial Use | Yes |
ASME Code | A112.18.1 |
CA Drought Compliant | No |
Certifications | ANSI, ASME, CSA |
Collection | Paradigm |
Commercial Warranty | 5 Year Limited |
Country Of Origin | Mexico |
CSA Code | B125.1 |
Low Lead Compliant | Yes |
WaterSense Certified | Yes |
