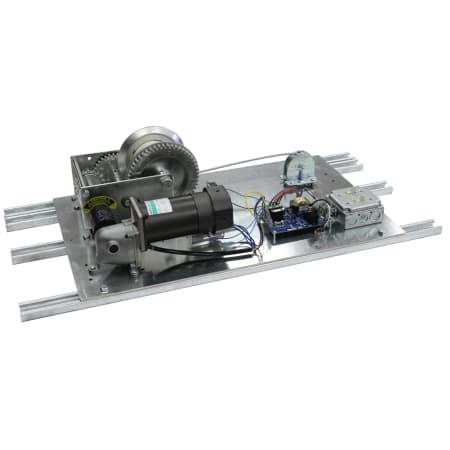

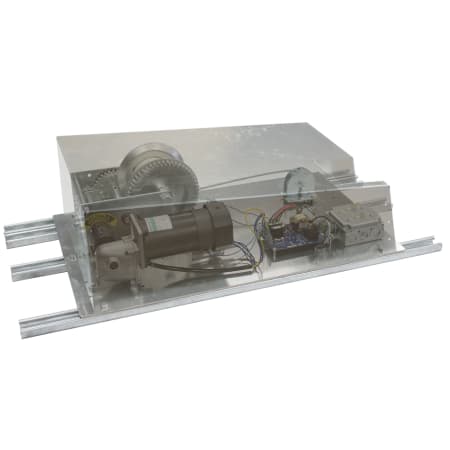

Aladdin Light Lift Commercial Grade 1000LB Standard Mount Motorized Light Fixture Lift System
Model: ALL1000-CM|Item: bci2960191
Details
Features:

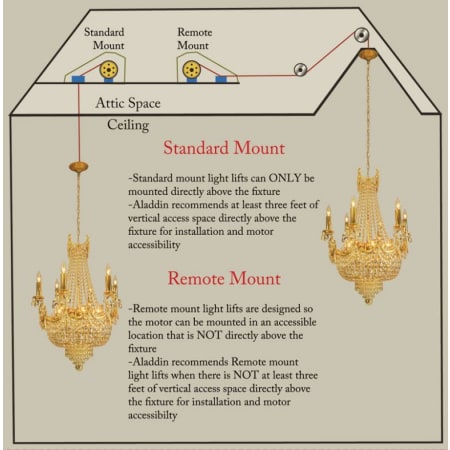

- Mounts directly above fixture (at least 3 feet vertical access space recommended)
- 2200 watt light wattage capacity
- Metal Clad cable
- 1000lbs maximum capacity
- Smart Lift controller (programmable keyswitch)
- Metal dust cover
- 35 foot winch cable and 50 foot controller wire
- Zinc plated 15.4/1 gear ratio winch
Dimensions:
- Height: 10"
- Width: 18"
- Depth: 29.5"
- Cable Length: 420"
- Wire Length: 600"
Electrical Specifications:
- Voltage: 110
- UL Listed: Yes
- Motor HP: 0.11
- Mount Type: Standard
- Motor Frequency: 60
- Weight Capacity: 1000 lbs
- Electrical: Circuit boards rated min V-0, conformal coated; all components and board are UL listed and regulated
- Wiring: lead free, RoHS compliant; all wiring and harnesses are UL listed and regulated
- Must be installed by licensed electricians
Dimensions and Measurements
Cable Diameter | 0.21875 in. |
Cable Length | 420 in. |
Depth | 29.5 in. |
Height | 10 in. |
Max Capacity (Pounds) | 1000 lbs. |
Width | 18 in. |
Wire Length | 600 in. |
Dimensions and Measurements
Cable Diameter | 0.21875 in. |
Cable Length | 420 in. |
Depth | 29.5 in. |
Height | 10 in. |
Max Capacity (Pounds) | 1000 lbs. |
Width | 18 in. |
Wire Length | 600 in. |
Characteristics and Features
Control Type | Key |
Mount Type | Standard |
Characteristics and Features
Control Type | Key |
Mount Type | Standard |
Electrical and Operational Information
Horsepower | 0.11 |
Motor Frequency | 60 |
Power Source | Hardwired |
Voltage | 110 |
Voltage Type | Line Voltage (110-120V) |
Electrical and Operational Information
Horsepower | 0.11 |
Motor Frequency | 60 |
Power Source | Hardwired |
Voltage | 110 |
Voltage Type | Line Voltage (110-120V) |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
CSA Code | C22.2 |
Manufacturer Warranty | 1 Year |
UL Listing Number | UL 1340 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
CSA Code | C22.2 |
Manufacturer Warranty | 1 Year |
UL Listing Number | UL 1340 |
